Industrial Fanless mini P

SKU
M4-J4125
9 160,94 ₴
В наявності
Smallest Industrial Fanless mini PC with Intel Celeron J4125 Onboard, 14nm Gemini Lake, 2.0GHz Quad Cores, Four Threads, Max 2.7GHz (Turbo Boost Technology), TDP 10W, 4MB Cache, Intel® UHD Graphics 600, 2*COM (RS232), 2*LAN with Pfsense support
Industrial Fanless mini PC with Intel Celeron J4125 2*COM 2*LAN Pfsense наявний для покупки з кроком збільшення в 1
  • Ultra thin body - only 39mm thick like palm computer size.
  • Fanless system without cooling fan - no any noisy.
  • Support VGA and HDMI dual display output 1080P playback.
  • Support Energy-saving, 64bit Computing and Virtualization technology.
  • It can be fixed back of monitor by VESA mount.

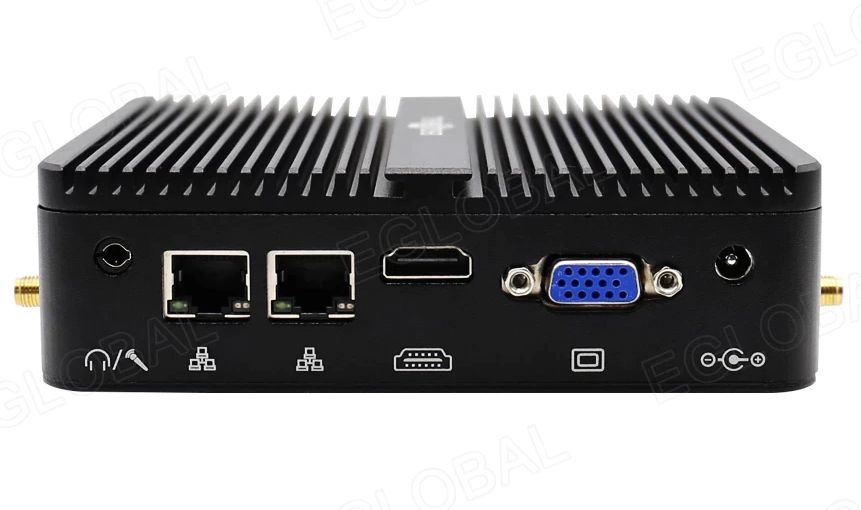

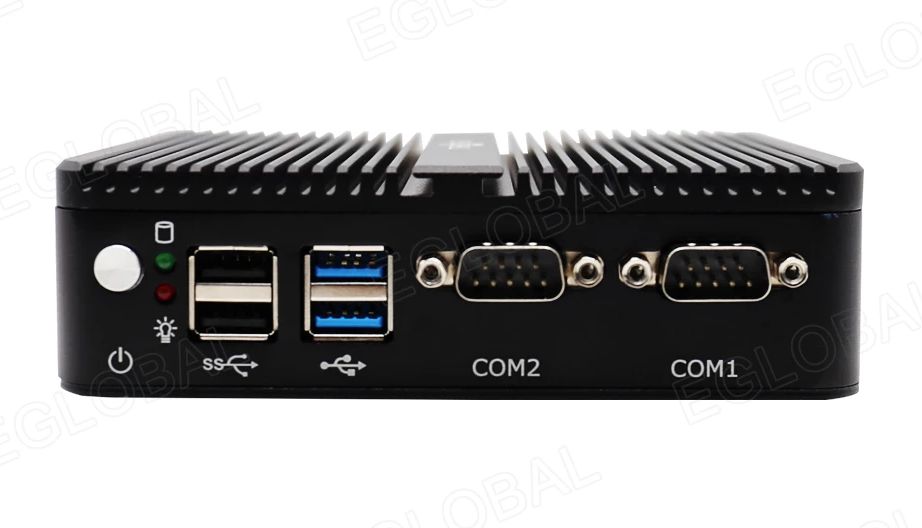

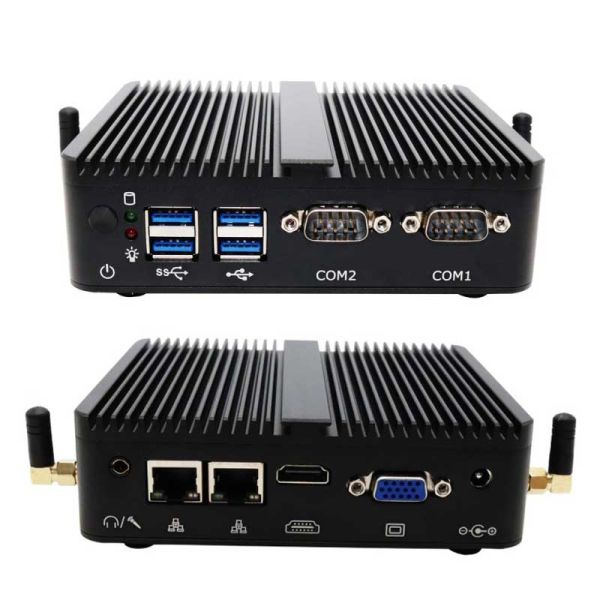

M4-J4125 Front View M4-J4125 Back View

Product Specifiction:

Basic Information:
CPU
  1. Onboard 14nm Gemini Lake Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max 2.7GHz(Turbo boost Technology) TDP 10W 4MB Cache Intel® UHD Graphics 600.
  2. Onboard Intel Celeron N4100 1.1GHz Quad Core Four Threads Max 2.4GHz(Turbo boost Technology)
  3. Onboard Gemini Lake Intel Celeron J4105 1.5GHz Quad Cores Four Threads Max 2.5GHz (Turbo boost Technology) TDP 10W 4MB Cache.
TDP 10W
Level 2 Cache 4 MB, 16-Way, 64 byte lines
BIOS American Megatrends Inc.
Motherboard Size 12 x 12 cm
PXE YES
Chipset Intel Gemini Lake
Memory 1 x SO-DIMM DDR4 Slot Support 4GB/8GB DDR4/LPDDR4 upto 2400 MT/s
OS Windows 7/Windows 8/Windows 10/Linux
Watchdog Watch Dog Time 256 Levels, programmable
Audio Intel High Definition Audio Controller
Network 2 x RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN
Video Intel® UHD Graphics 600
Input/output port
Switch 1 x Power On/Off Switch
Power 1 x 12V DC In
LED 2 x LED
USB 2 x USB2.0 2*USB3.0
Display 1 x VGA, 1 x HD
LAN 2 x RJ45 Giga LAN
Audio 1 x Audio(MIC&SPK)
COM 2 x RS232 COM
Storage
MSATA 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
M.2 1 x M.2 slot for nvme SSD
SATA 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module 1 x mini PCIE-half port for Wi-Fi module
Antenna 2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input DC100-240V AC/50-60Hz
Output DC 12V/5A
Operating Temperature -10/+60 Centigrade
Storage Temperature -20/+85 Centigrade
Relative Humidity 10%~90% (non-condensing)
Product Dimension & Details
Function Auto Power On, RTC, WOL, PXE
Size 135*127*39mm(44mm with foot pad)
Weight Net 0.55kg, Gross 1.2kg
Shell Black color aluminum alloy
Cooling Mode Fanless
Package Content
Standard
  • 1xMini PC,
  • 1xPower Adapter,
  • 1xPower Cord,
  • 1xScrews Bag,
  • 1xHDMI cable,
  • 2xWi-Fi antennas,
  • 1xUser Manual
Optional 1xVESA Mount

What's in the package:

  • 1xMini PC
  • 1xPower supply
  • 1xEU Power cable
  • 1xSATA power & data cable
  • 1*HDMI cable
  • 1*VESA Mount (Optional)

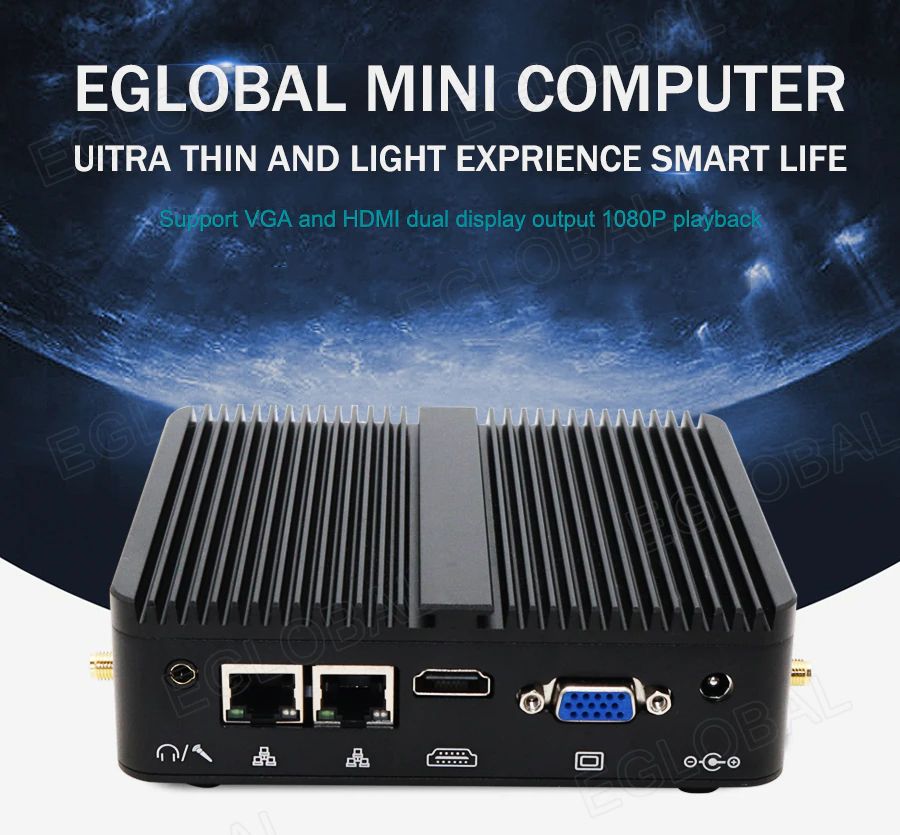

EGLOBAL MINI COMPUTER - UITRA THIN AND LIGHT EXPRIENCE SMART LIFE - Support VGA and HDMI dual display output 1080P playback

Impressive performance Mini PC matched with intel Celeron Series processors to give you the smooth multi-tasking performance for everyday home computing tasks like online shopping, playing games, watching movies, deal office works, etc. | 1,7 s WORD	(30M WORD File opening time)	1,5s PPT (30M WORD File opening time)
Energy Saving Product | Energy cost saving up to 85% | Traditional desktop pc powered by >160 watts power supply, Mini PC powered by energy efficient 24w power supply only | Rated Power 24 W EGLOBAL Mini PC vs 160W Desktop PC
Support pfSense - a free network firewall distribution, based on the FreeBSD operating system with a custom kernel and including third party free software packages for additional functionality

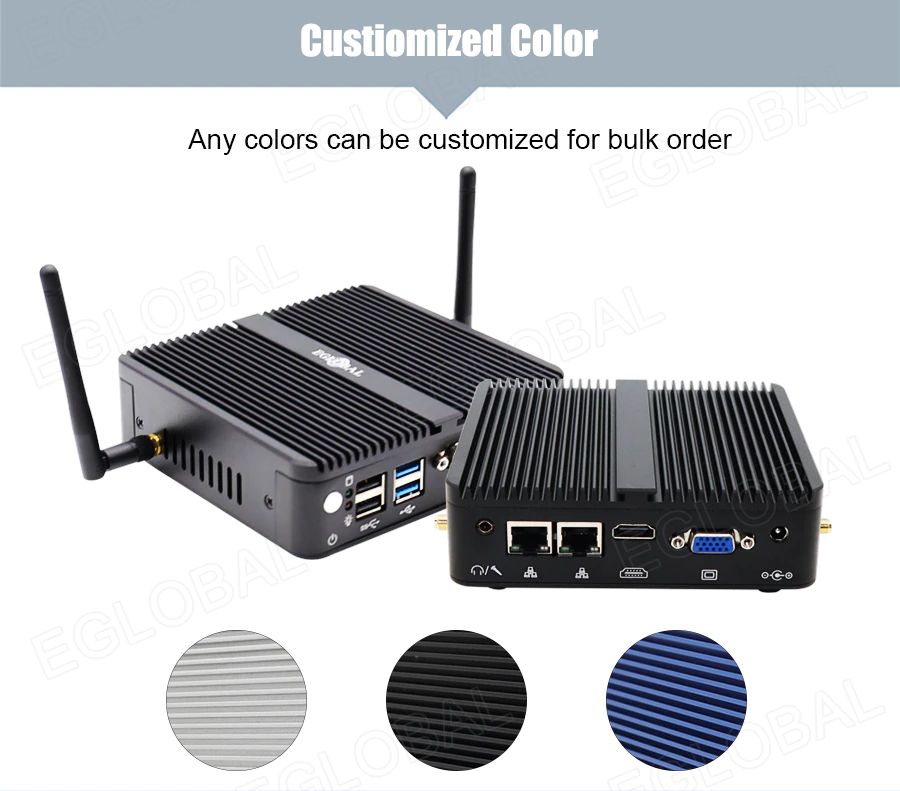

Customized Color - Any colors can be customized for bulk orders

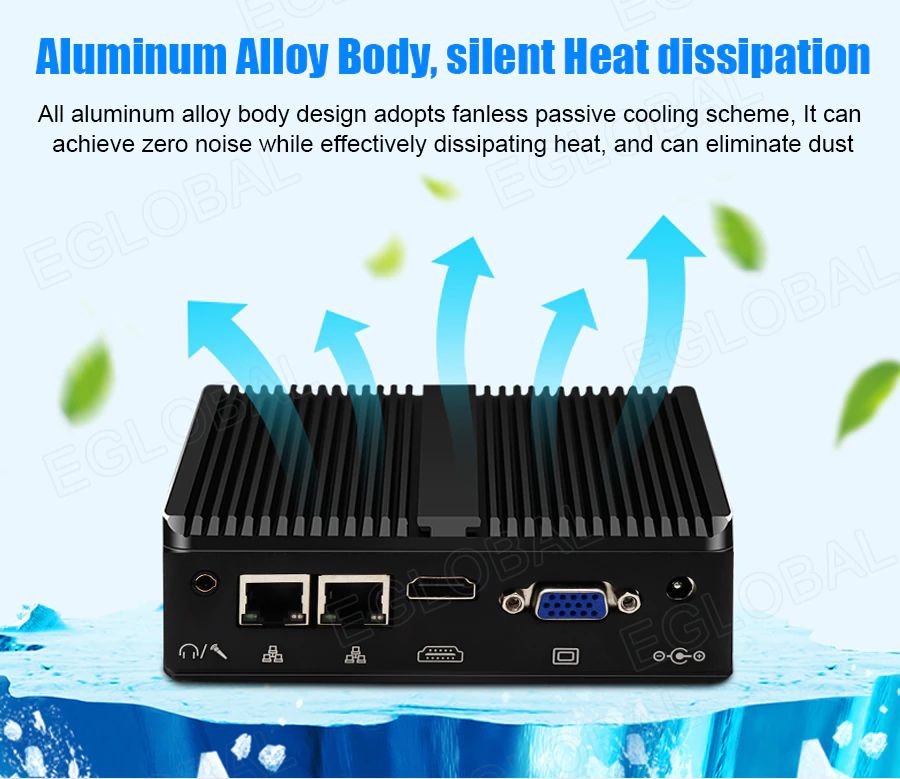

Aluminum Alloy Body  silent Heat dissipation - All aluminum alloy body design adopts fanless passive cooling scheme. It can achieve zero noise while effectively dissipating heat, and can eliminate dust

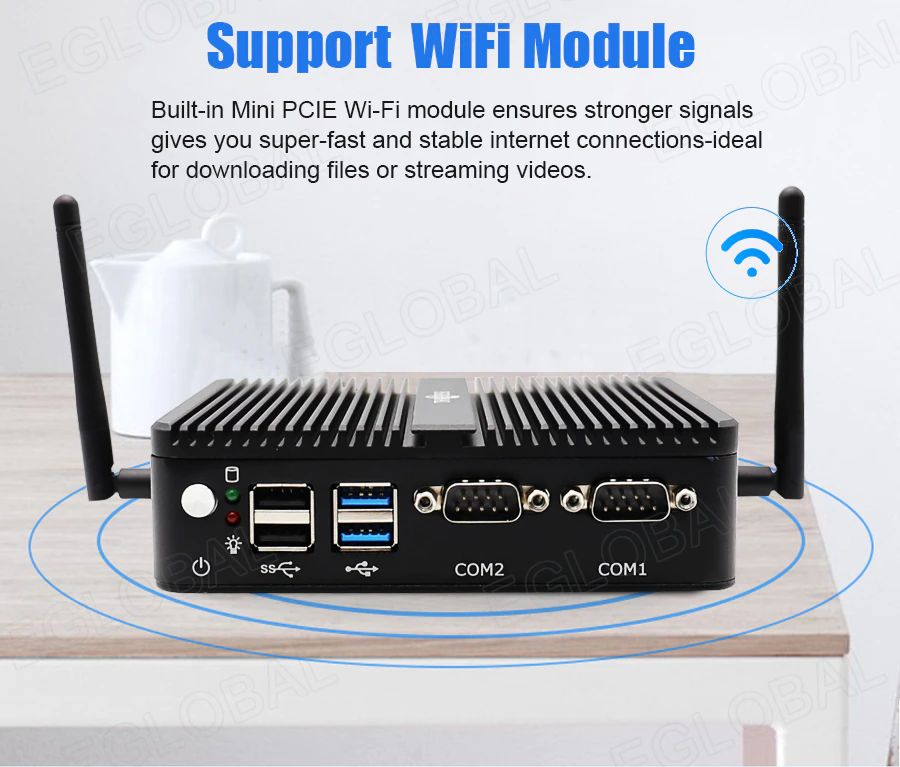

Support WiFi Module - Built-in Mini PCIE Wi-Fi module ensures stronger signals gives you super-fast and stable internet connections - ideal for downloading files or streaming videos.

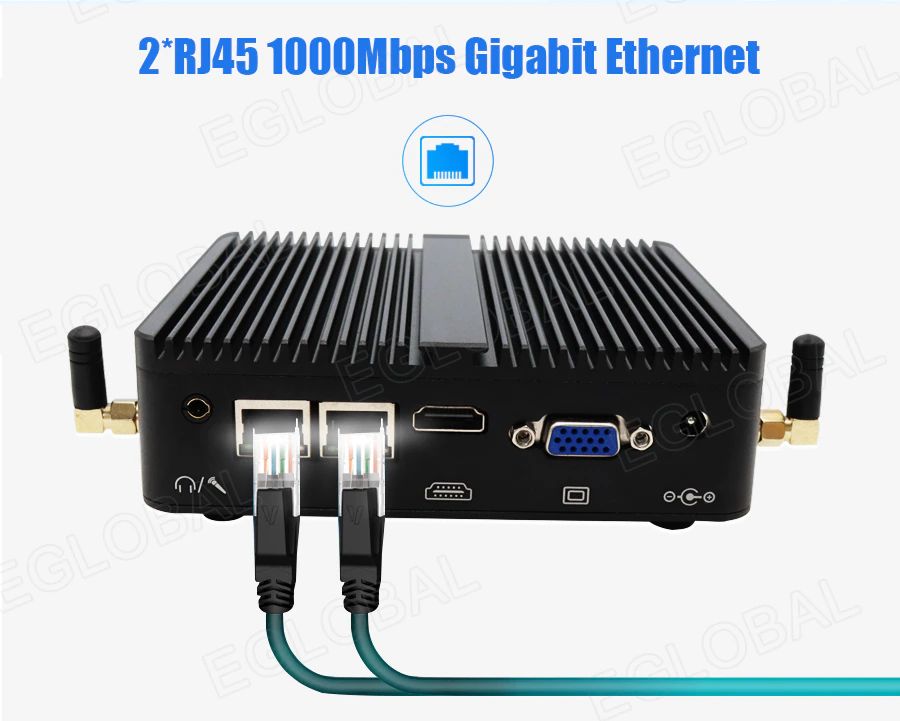

2*RJ45 1000Mbps Gigabit Ethernet

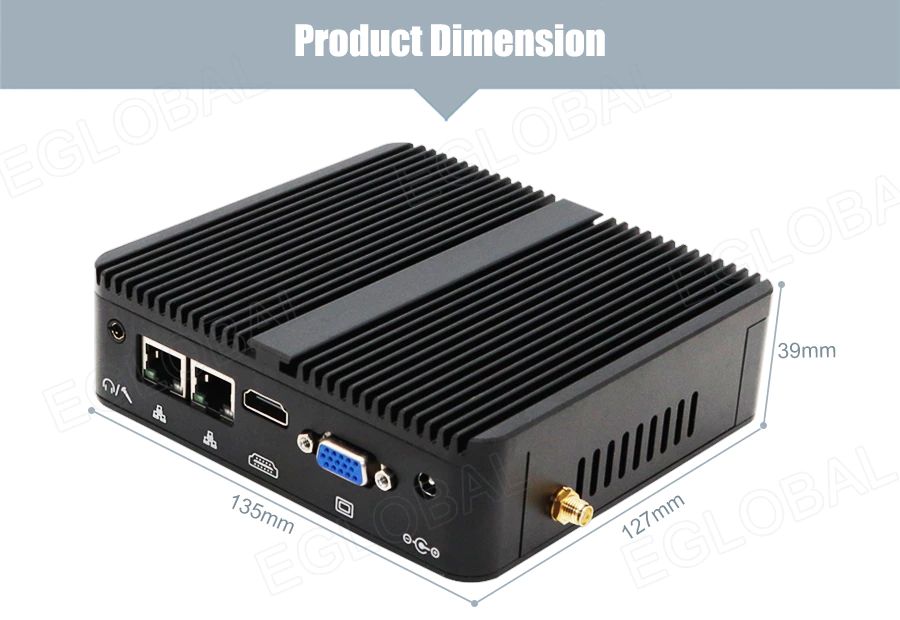

Product Dimensions 135mm*127mm*39mm

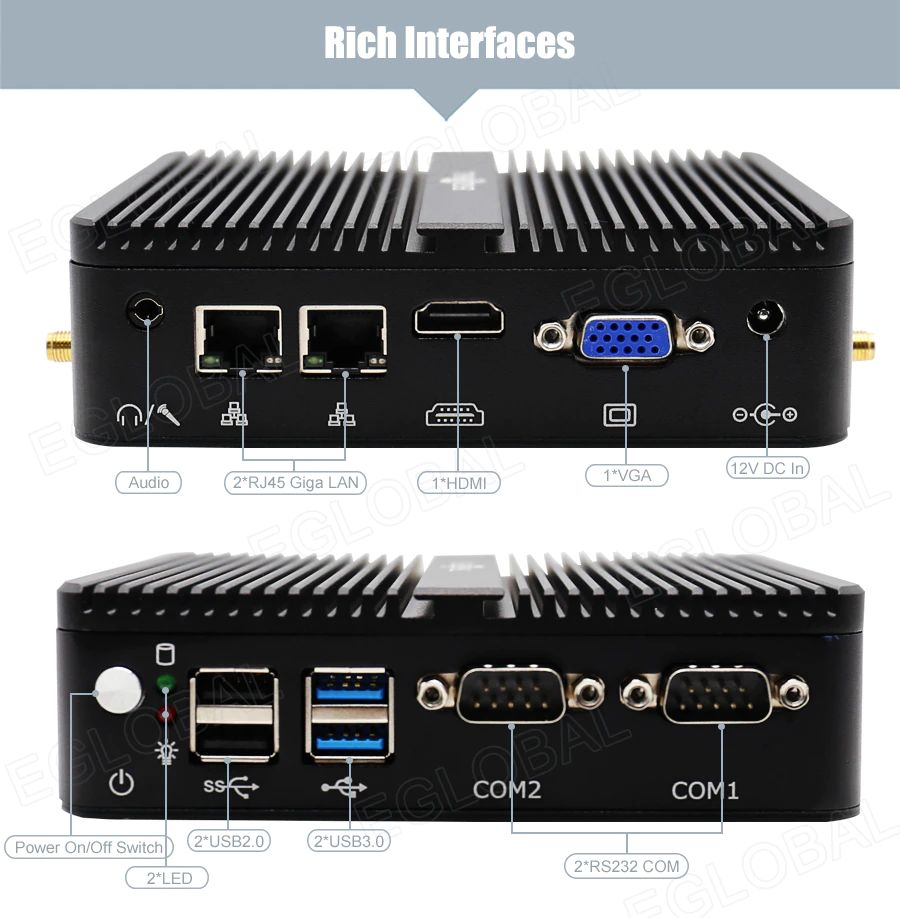

Rich Interfaces: 2 x USB2.0, 2*USB3., 1 x VGA, 1 x HDMI, 2 x RJ45 Giga LAN, 1 x Audio (MIC & SPK), 2 x RS232 COM

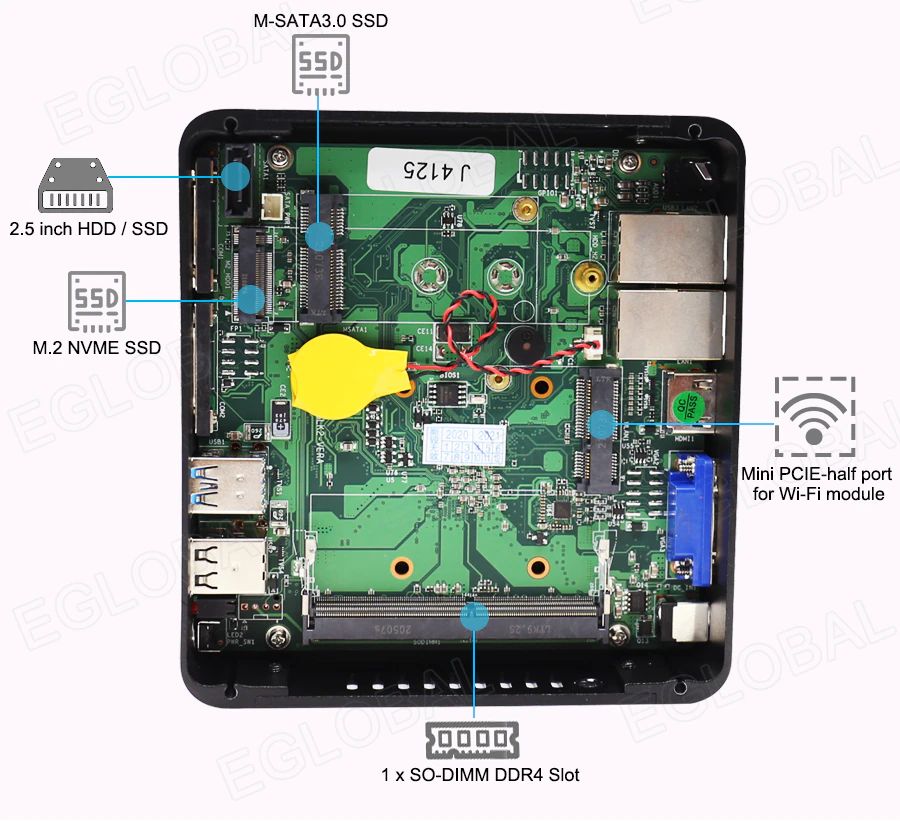

M-SATA 3.0 SSD, 1 x SO-DIMM DDR4 Slot, Mini PCIE-half port for Wi-Fi module, 2.5 inch HDD / SSD, M.2 NVME SSD

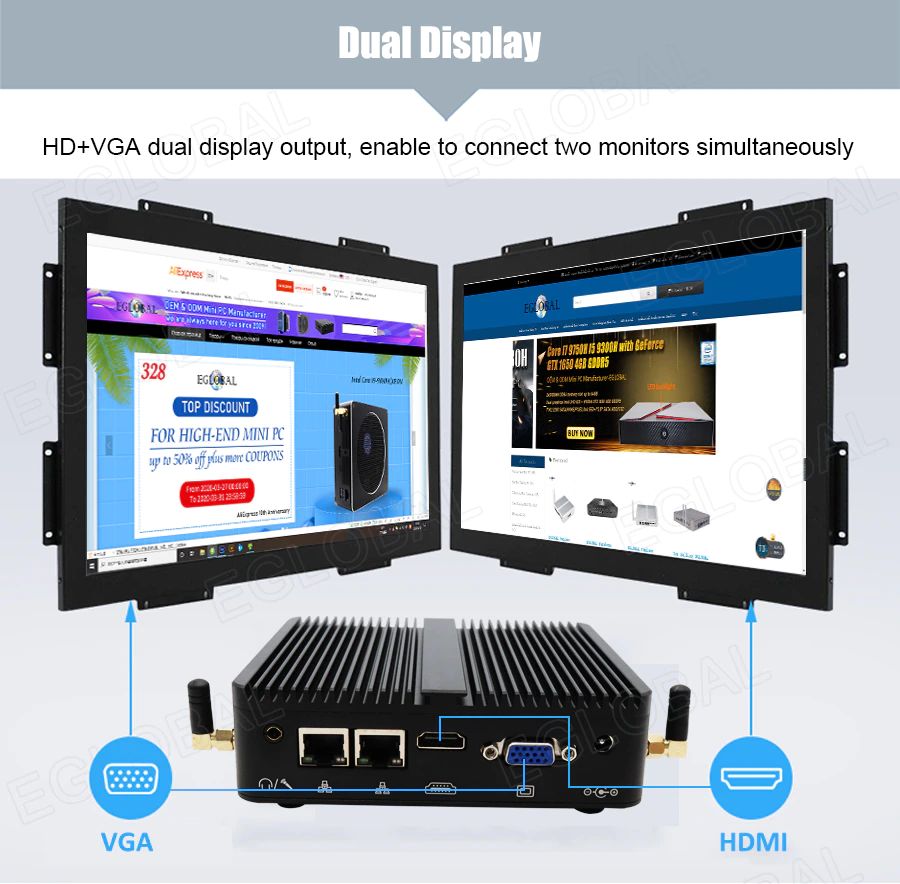

Dual Display - HDMI+VGA dual display output, enable to connect two monitors simultaneously

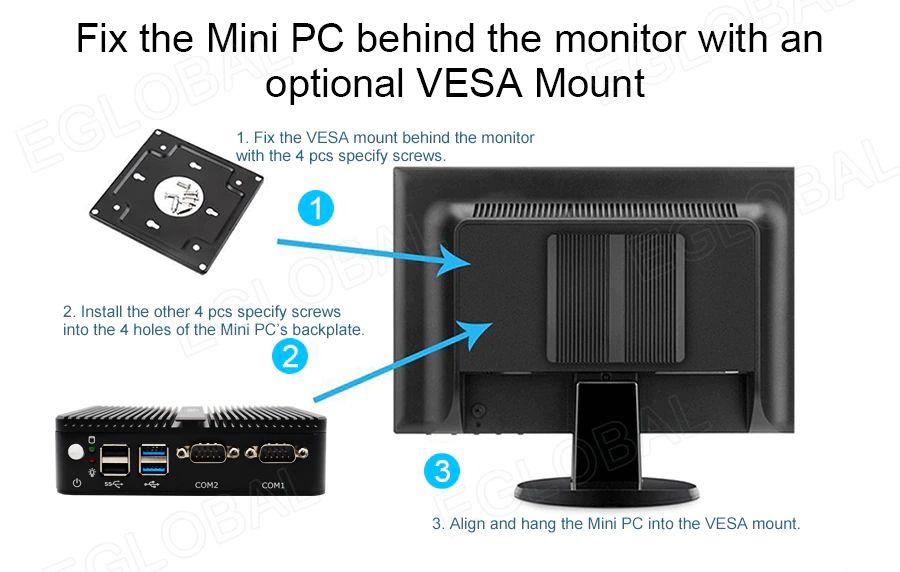

Fix the Mini PC behind the monitor with an optional VESA Mount - 1. Fix the VESA mount behind the monitor with the 4 pcs specify screws; 2. Install the other 4 pcs specify screws into the 4 holes of the Mini PC’s backplate; 3. Align and hang the Mini PC into the VESA mount.

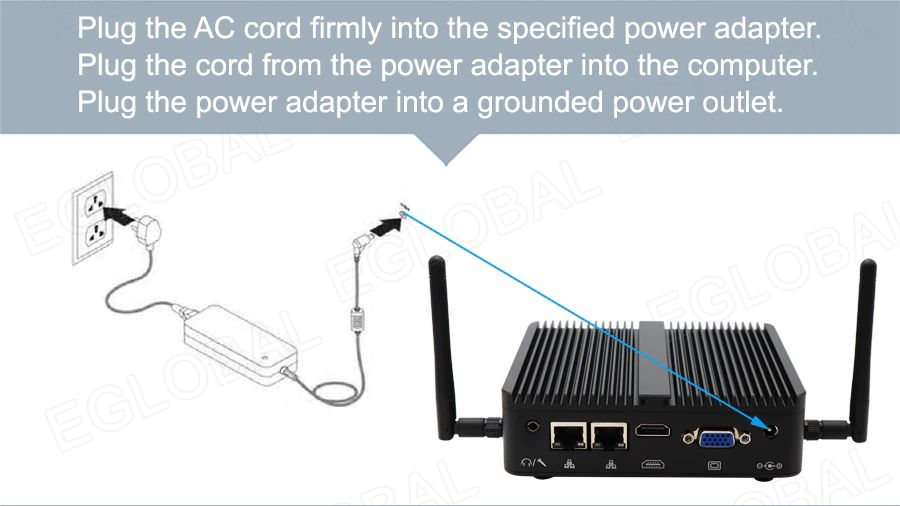

Easy to start - Plug the AC cord firmly into the specified power adapter. Plug the cord from the power adapter into the computer. Plug the power adapter into a grounded power outlet.

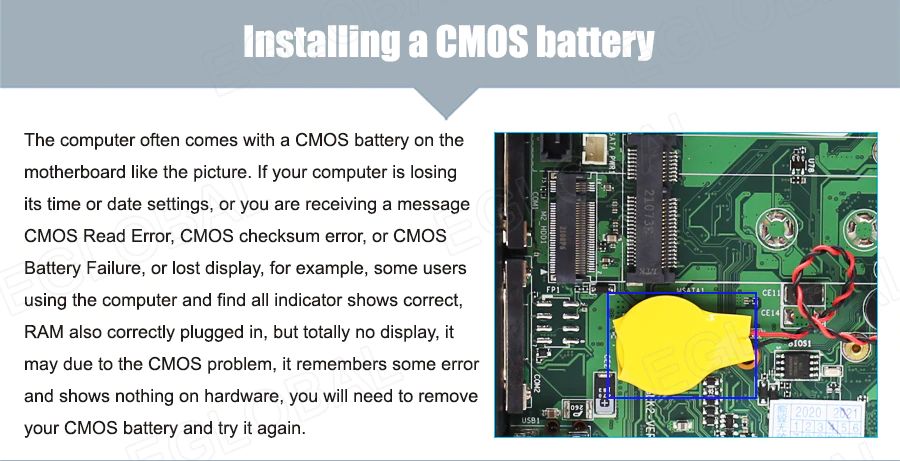

Installing a CMOS battery - The computer often comes with a CMOS battery on the motherboard like the picture. If your computer is losing its time or date settings, or you are receiving a message CMOS Read Error, CMOS checksum error, or CMOS Battery Failure, or lost display, for example, some users using the computer and find all indicator shows correct, RAM also correctly plugged in, but totally no display, it may due to the CMOS problem, it remembers some error and shows nothing on hardware, you will need to remove your CMOS battery and try it again.
Installing Onerating System - Can support Windows7/8/10 & Linux OS - When you want to install a new operating system for the computer, first you need to figure out which one you want to use, Operating systems have varies of system requirements, so make sure that your computer can handle a new operating system. Note: If our package do not include CD Driver, pis contact our Pre-sales to give you the Driver link to download if you install a new Operating System.
Application - Smart and portable, widely used in all kinds of computing areas. -Mall; -Office; -Classroom; -Home; -Hospital; -OS Support: Windows 10, Windows 8, Linux

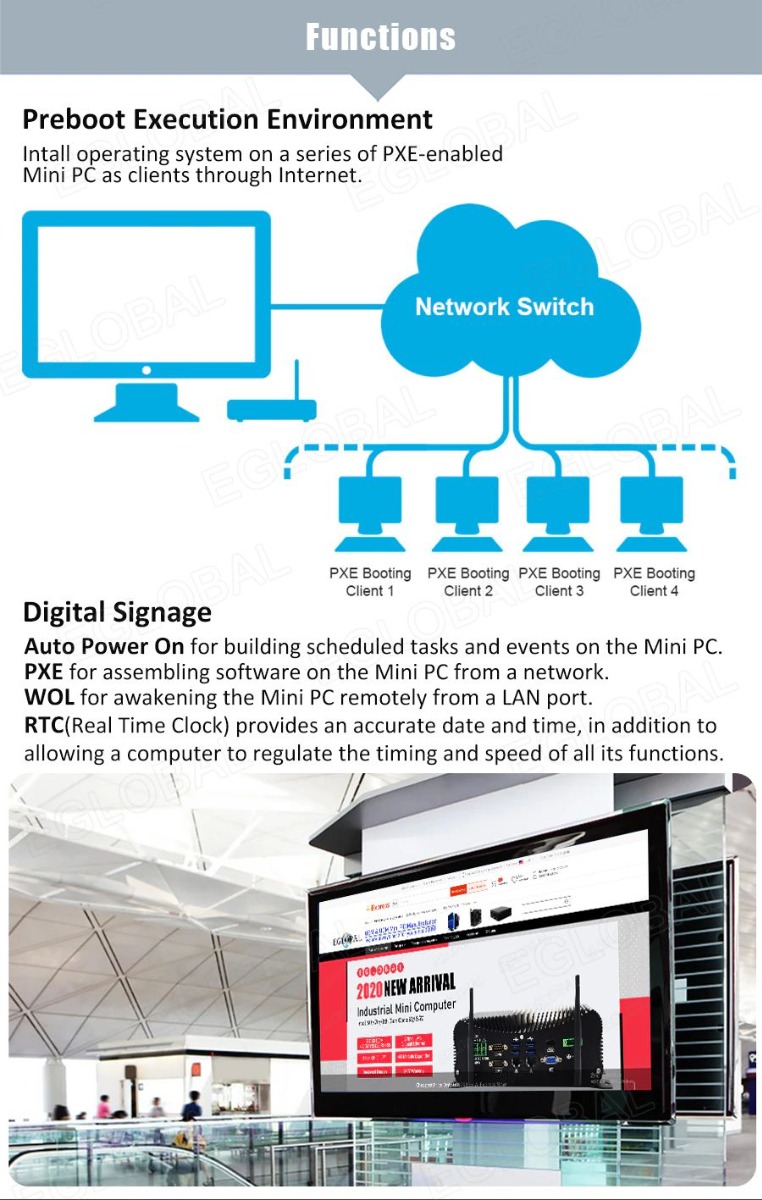

Functions Preboot Execution Environment - Install operating system on a series of PXE-enabled Mini PC as clients through Internet. -PXE Booting Client - Digital Signage - Auto Power On for building scheduled tasks and events on the Mini PC. PXE for assembling software on the Mini PC from a network. WOL for awakening the Mini PC remotely from a LAN port. RTC (Real Time Clock) provides an accurate date and time, in addition to allowing a computer to regulate the timing and speed of all its functions.

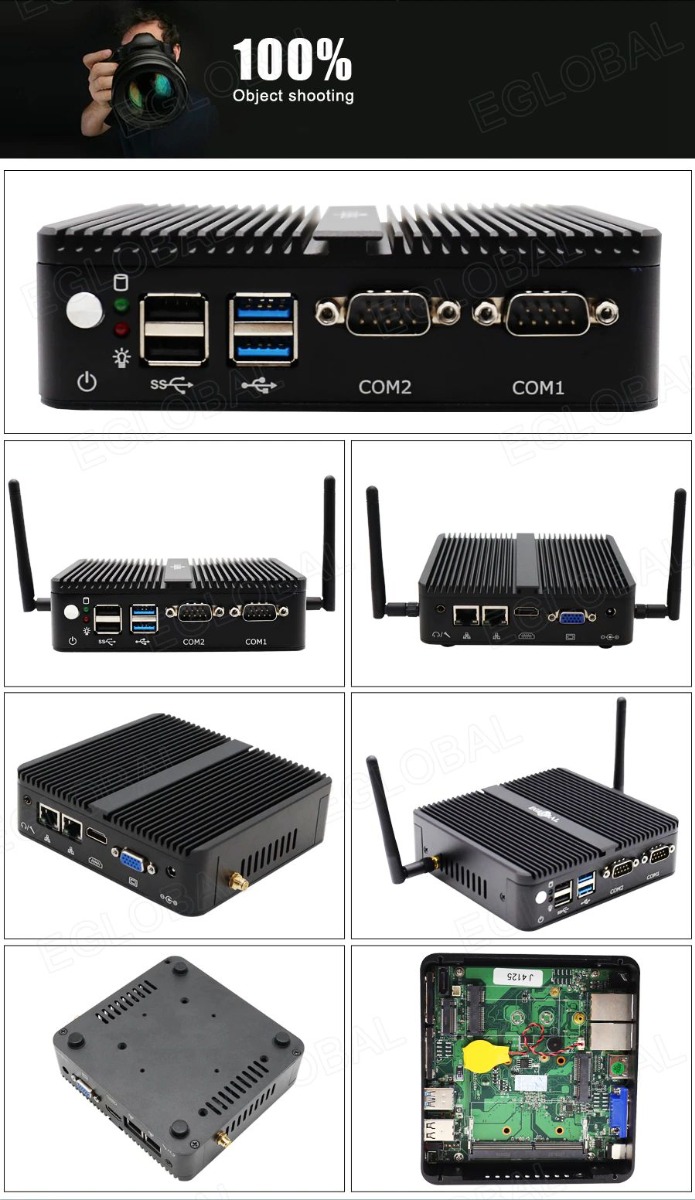

100% Object shooting
Applications: Independent Personal Computer - With high-end hardware, can be used as an independent computer; also can be used as a parlour pc connecting the TV Set to watch video, surf the internet.
Economical Computer - Used for touch screen devices, e.g. Touch Kiosks, Advertising Player, POS, IPTV. Tiny size can fix in the cabinet; Fanless system design, no noisy and no dust.
Hotel Smart Computer - With high-end hardware, can be used as smart computer in Hotel, it can save space by stand holder or VESA Mount, also used in KTV, Bank Office, Retail Stores or shops.
Business Office Computer - Cloud terminal used in business is extremely different from computer in surfing the net or display, like chatting online, enjoy media player.
Education Computer - Used in Multimedia Teaching System, can install teaching software for education; Also Portable Computer for kids, Low consumption and Less radiation.
Industrial Computer - Industrial standard design, High stability and reliability; with RS232 serial port for more industrial needs; solid state design, fanless design.

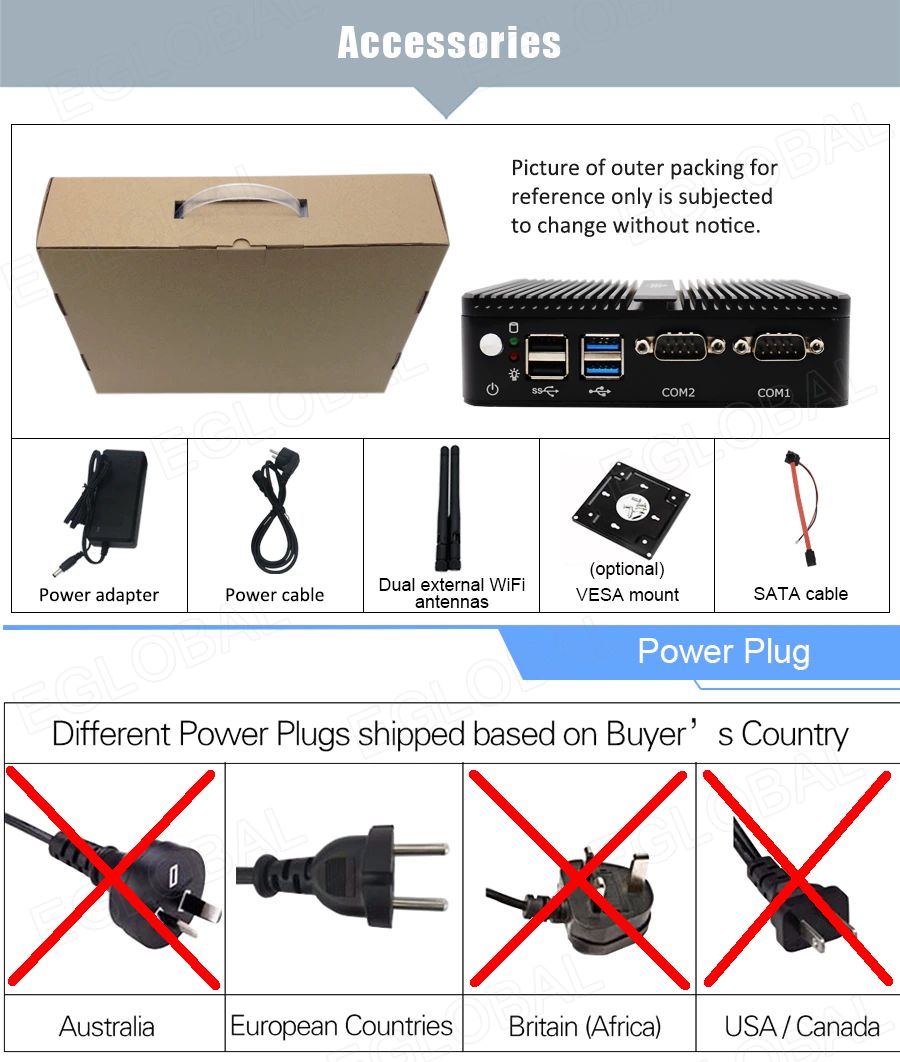

Accessories - Power adapter, Power cable, Antennas, VESA mount (optional), SATA cable, Power Plug - Different Power Plugs shipped based on Buyer	Countrys: Australia, European Countries, Britain (Africa), USA/Canada. Picture of outer packing for reference only is subjected to change without notice.
ВиробникEglobal
