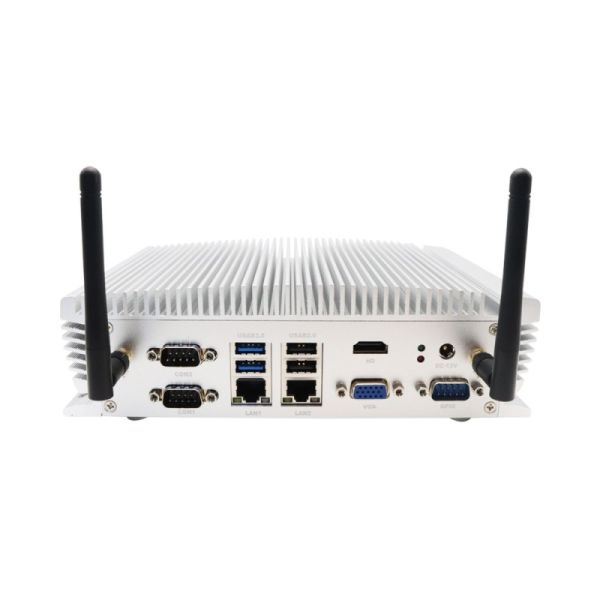

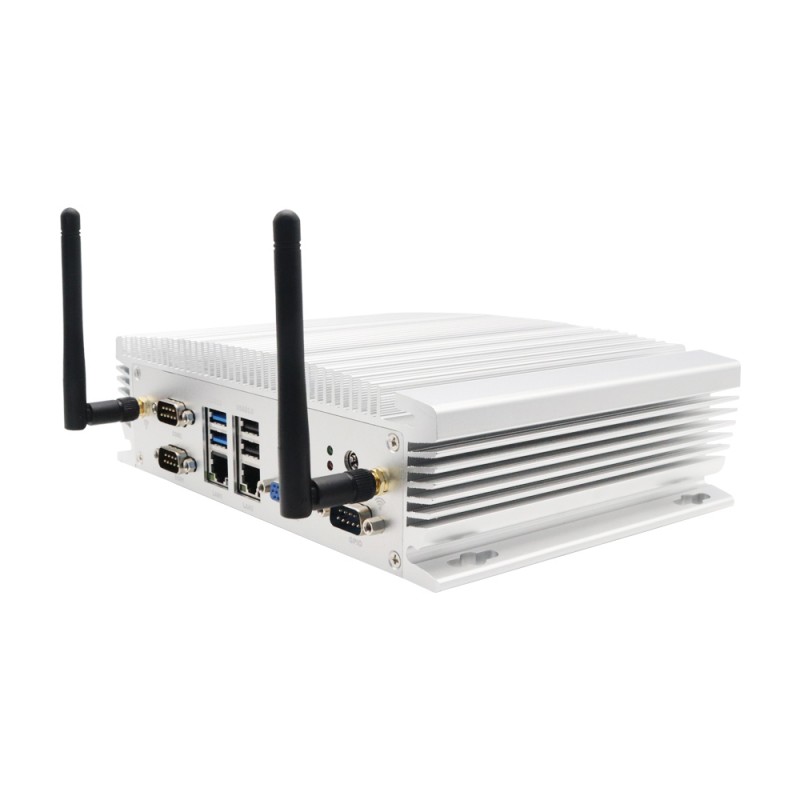

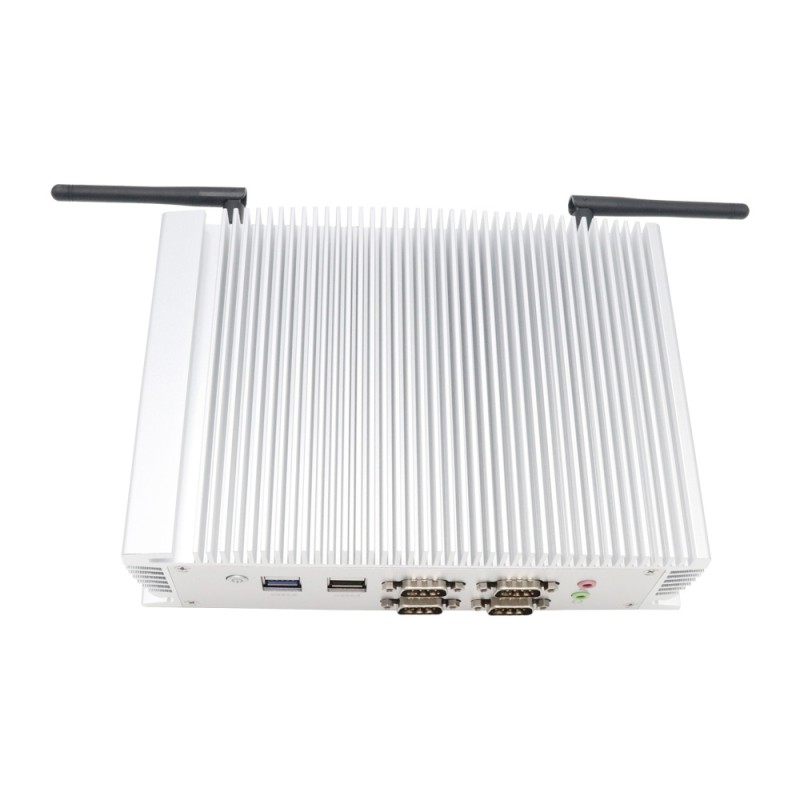

Mini pc computer intel core i5 6360U dual lan 6COM with embedded SIM card slot RTC wake up

Eglobal Newest barebone Industrial Fanless Rugged Mini BOX PC i5-6360U NUC PC 8USB 6RS232 COM 2LAN VGA HDMI AC WIFI
В наявності
SKU
G6-6360U
18 484,00 ₴
Mini pc computer intel core i5 6360U dual lan 6COM with embedded SIM card slot RTC wake up наявний для покупки з кроком збільшення в 1

We will send this product in 2 days. Read more...

Call us now for more info about our products.

Return purchased items and get all your money back.

Buy this product and earn 10 special loyalty points!


Highly reliable, fanless, noise-free, energy efficient, Industrial Fanless Rugged Mini BOX PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.


EGLOBAL Industrial Fanless Rugged Mini BOX PC series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance. These characteristics make these Rugged PCs ideal for applications like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.
Main advantages:

Small size: all EGLOBAL Industrial Fanless Rugged Mini BOX PC are smaller than A4 paper, some of them only 4.5 inch size 234*150*45MM, just like the HDD sized using it traditional fat computers.
Durability: all those EGLOBAL Industrial Fanless Rugged Mini BOX PC are highly integrated, fanless design makes it runs silent and no need extra maintenance like normal fat computers; the rugged cabinet can take extreme pressure and temperatures;
Low power: all the EGLOBAL Industrial Fanless Rugged Mini BOX PC using 12V power supply, most of them power consumption 15W only, compare to 150W traditional pc's consumption, it helps saving more than 80% energy;
Universal performance: EGLOBAL Industrial Fanless Rugged Mini BOX PC compatible with almost all popular operating systems, such as Windows, Linux, fulfill all kind requirement for different environment.

What can this Industrial Fanless Rugged Mini BOX PC do?

Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others;
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games;
Industrial fields: Fit for CCTV, POS, Kiosk, ATM, Terminal, etc.


Industrial Fanless Rugged Mini BOX PCSpecifications:

Basic Information:

CPU

Onboard Intel Core i5-6360u

TDP

15W

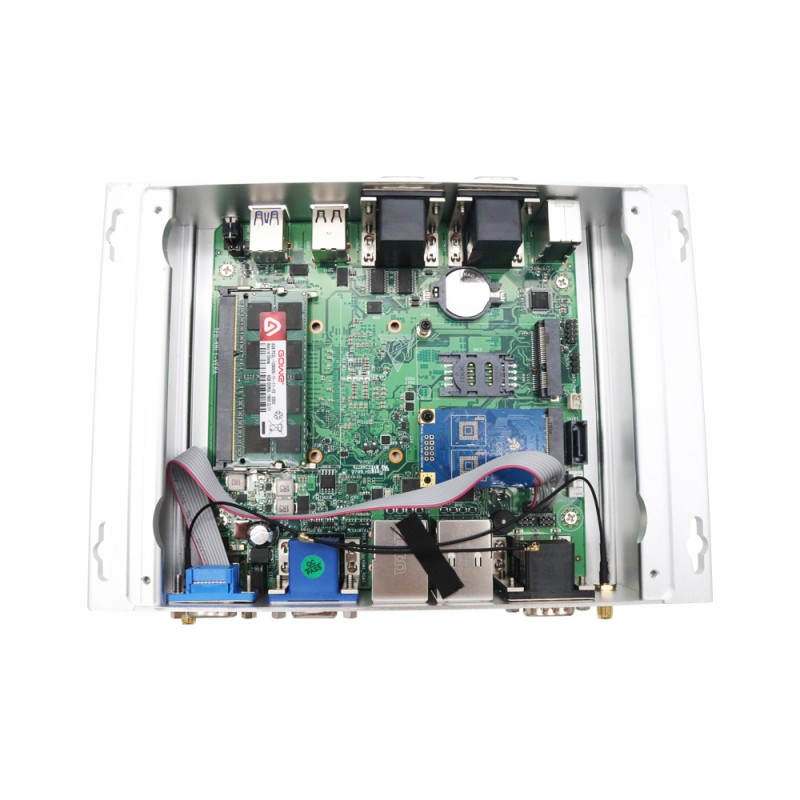

Motherboard

14.5 x 14.7 cm

BIOS

American Megatrends Inc. 5.6.5

Chipset

Intel Sunrise Point-LP, Intel Skylake-U

Memory

2 x SO-DIMM DDR3L Slot, Support 4GB/8GB/16GB

DDR3L 1333/1600, LPDDR3 1333/1600

OS

Windows 7/Windows 8/Windows 10/Linux

PXE

YES

Audio

Intel Skylake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller

Realtek ALC662 @ Intel Sunrise Point-LP PCH - High Definition Audio Controller

Network

Onboard Intel i211 Gigabit Network Connection

10/100Mbps/1000Mbps BaseT LAN

Video

Intel(R) Iris(R) Graphics 540

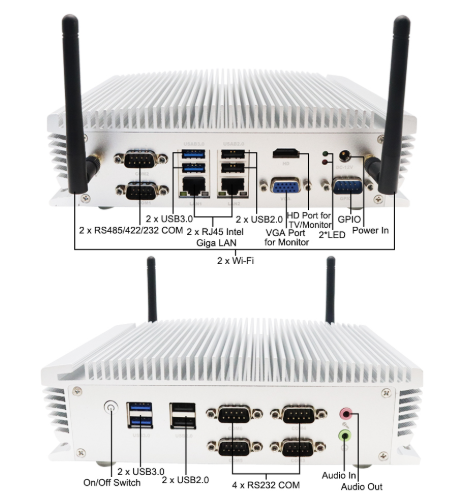

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 12V DC In

LED

2 x LED

USB

4 x USB2.0, 4 x USB3.0

Display

1 x VGA, 1 x HDMI

LAN

2 x RJ45 Intel Giga LAN

COM

6 x COM RS232(3 line) ports, COM1 COM2 can change to RS485/422 from BIOS

SIM

1 x embedded SIM card slot onboard

GPIO

1 x GPIO

Audio

1 x MIC, 1 x SPK

Storage



MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Wi-Fi



Module

1 x mini PCIE-half port for Wi-Fi/Bluetooth module

1 x mini PCIE-full port for 3G/4G module

Antenna

2 x inner RF cables and 2 x external antennas

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 12V/5A

Operating Temperature

-20/+75 Centigrade

Storage Temperature

-40/+80 Centigrade

Relative Humidity

0%~90% (non-condensing)

Product Dimension & Details

Size

213*255*66mm

Weight

Net 1.6kg, Gross 2.5kg

Shell

Silver color aluminum alloy(any customized color for bulk order)

Mounting

4 Mounting holes on case

Cooling Mode

Fanless

Functions

AWAL, Wake On LAN, RTC

Package Content



Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag

Optional

Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag
