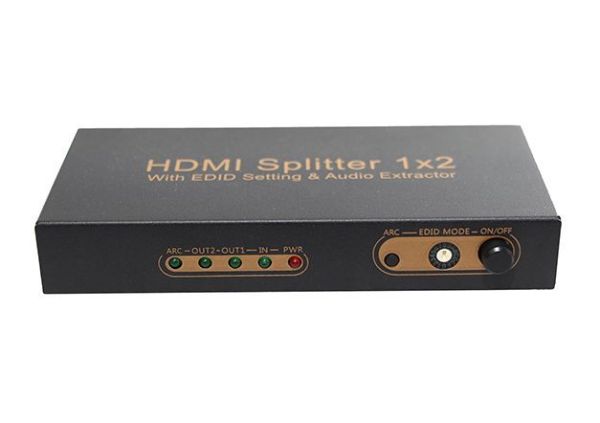

Splitter HDMI 1x2 HDMI Wi

The 2 Port HDMI Audio Extractor can allow two HD Display/TV connected to one HDMI Source and also can extract audio signals from the HDMI source. You can take your original HDMI audio signal and convert it to digital optical/coaxial or analog audio output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format output. It is one perfect audio extractor for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.

Specification:

1. 2 port 4K HDMI splitter
2. With audio SPDIF+COAX+3.5MM audio output
3. Support EDID setting

Features:

• HDMI input and 2X HDMI output,can sync separation HDMI audio signal. Supports 1xSPDIF optical and 1xSPDIF coaxial digital audio outputs, and  1x 3.5mm analog audio output;
• HDMI supports Full HD,3D and 4K*2K video;
• Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH;
• Support ARC audio output;
• Supports 16 built-in EDID mode, can enhance the signal format match between different devices;
• 24bit /192KHz DAC;

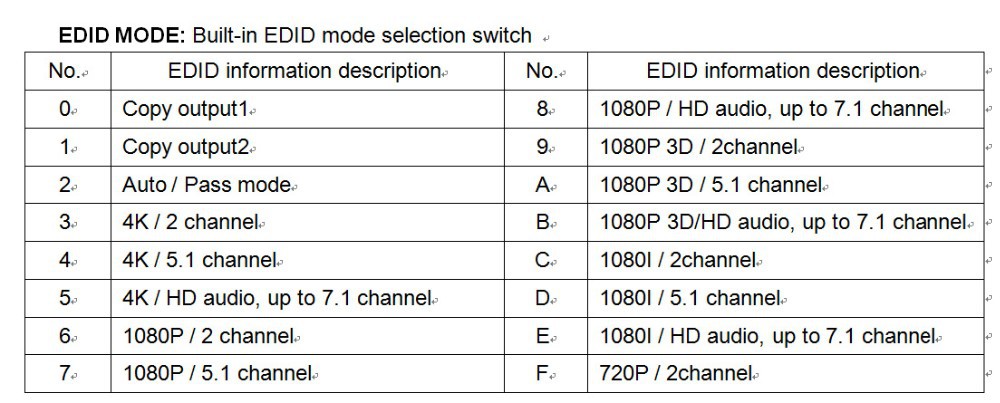

EDID Mode Set Tips:

1. EDID Setting function working for Sources and Sink End special match, Each side must support the choice EDID .
2. EDID Auto By Pass. Make sure your Source Device video and audio output mode with Auto Status.
3. SPDIF 5.1 function need Source Device DOLBY/DTS to Bitstream/Raw Output.
4. After setting EDID , display will restart with new EDID mode.
5. Note: Some Speical Source Device need restart for new EDID effect.
