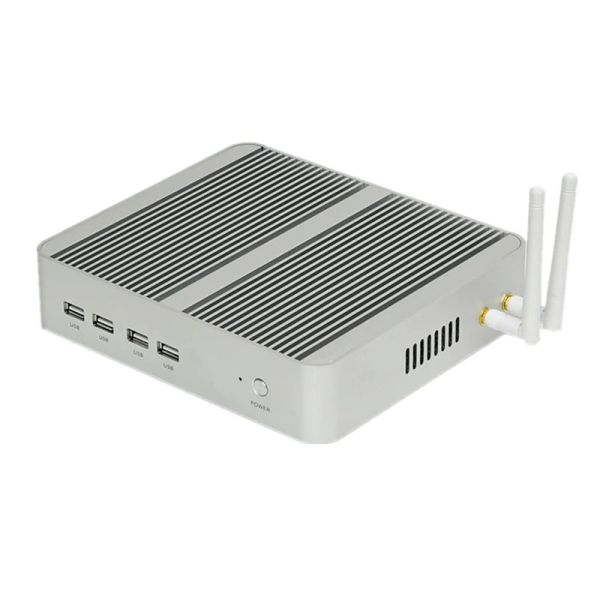

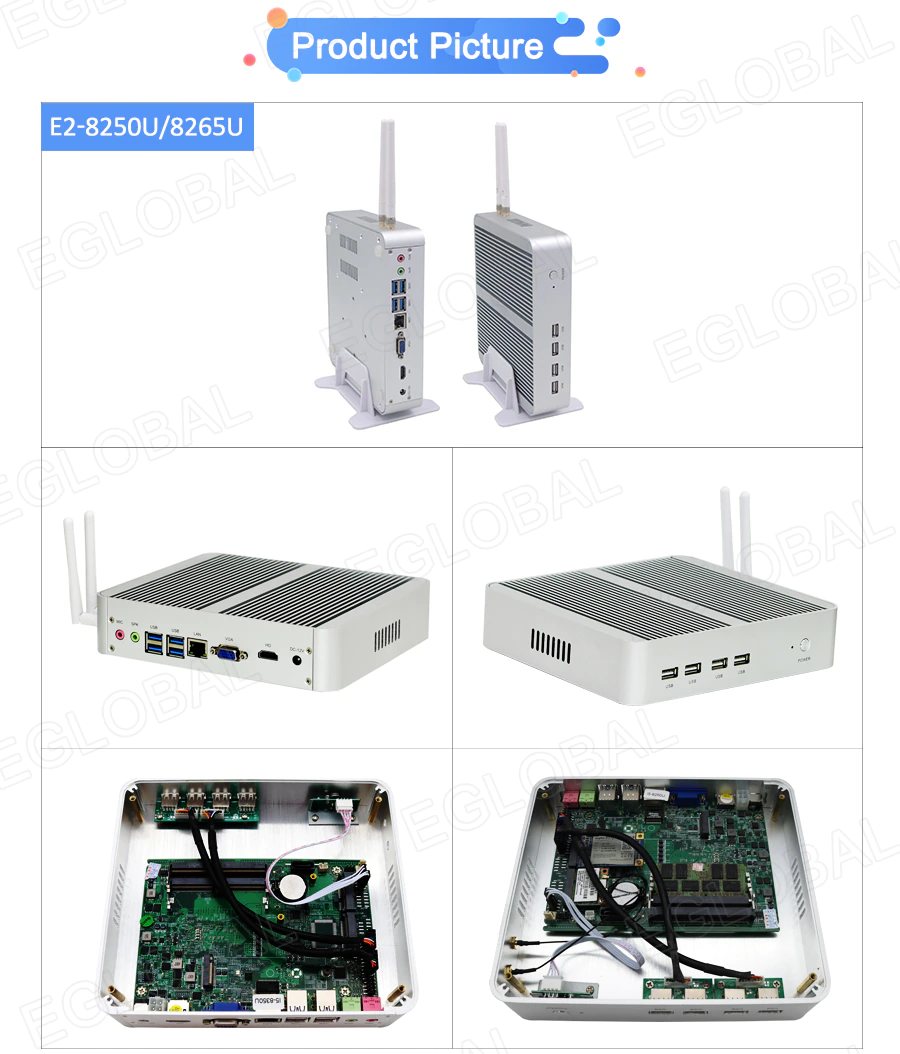

Industrial Fanless Mini P

19 535,86 ₴
Немає у наявності
  • Onboard Intel Core i5-8250U 1.6GHz Max 3.4GHz(Turbo boost Technology) Quad Core Eight Threads
  • Full Brushed Aluminum Alloy Silver color shell, Exquisite production craft on outside design.
  • 2xSODIMM DDR4 memory slot up to 32GB more powerful performance improve work efficiency and give you a  smooth experience.

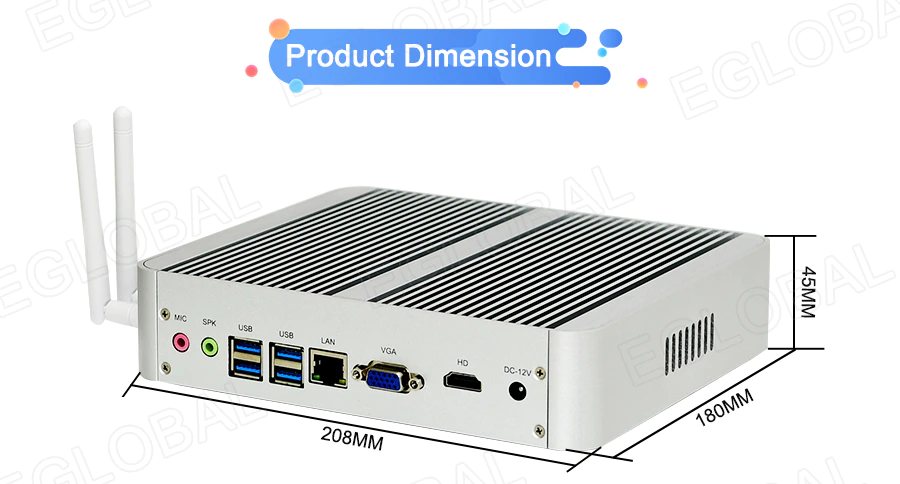

  • Fanless system without cooling fan and slim design 208*180*45MM.
  • Low consumption TDP only 15W, save much energy and eco-friendly.

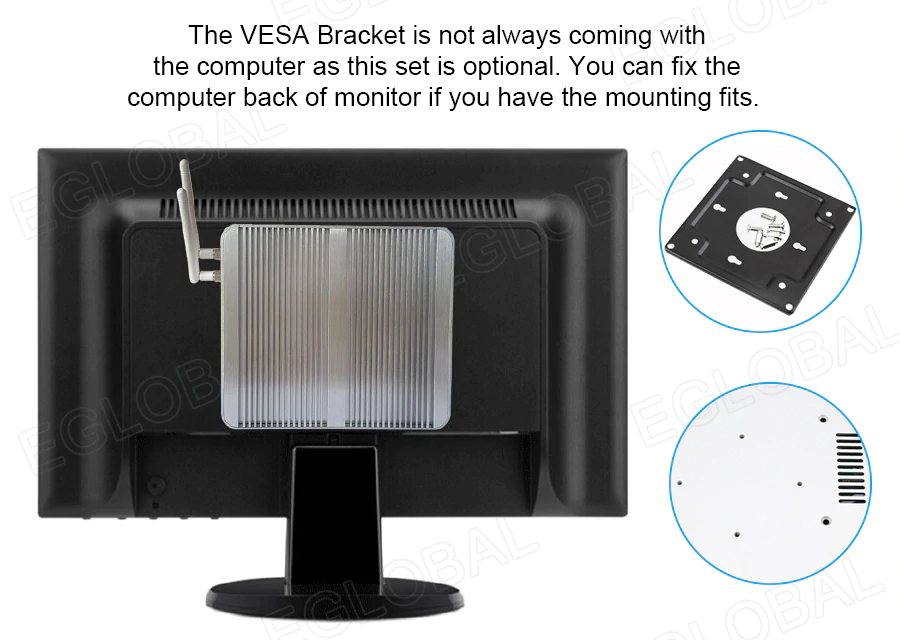

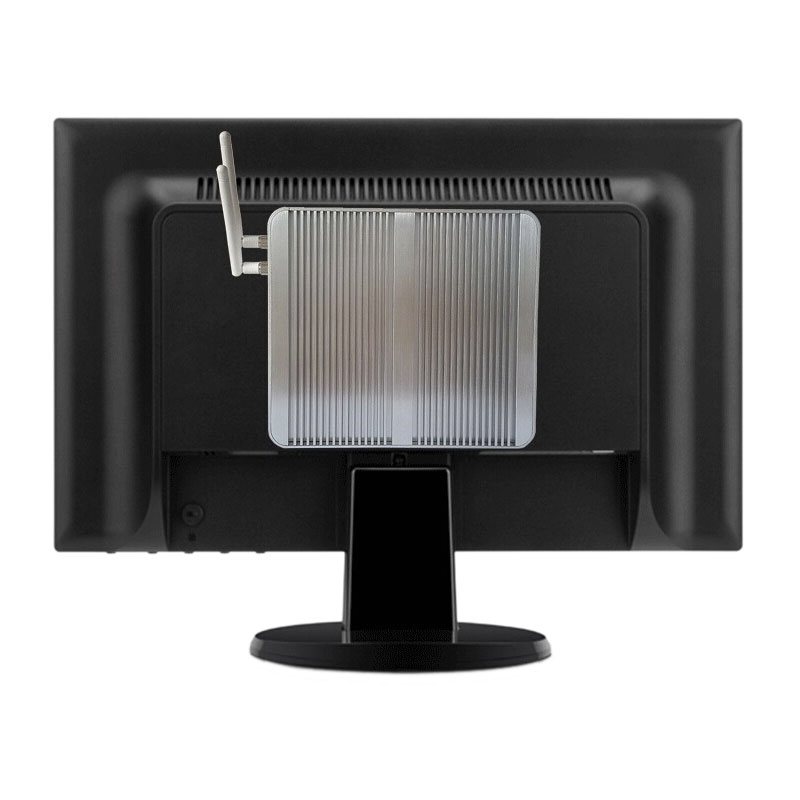

  • Can stand up by free plastic stand holder or can be fixed back of monitor by VESA mount.

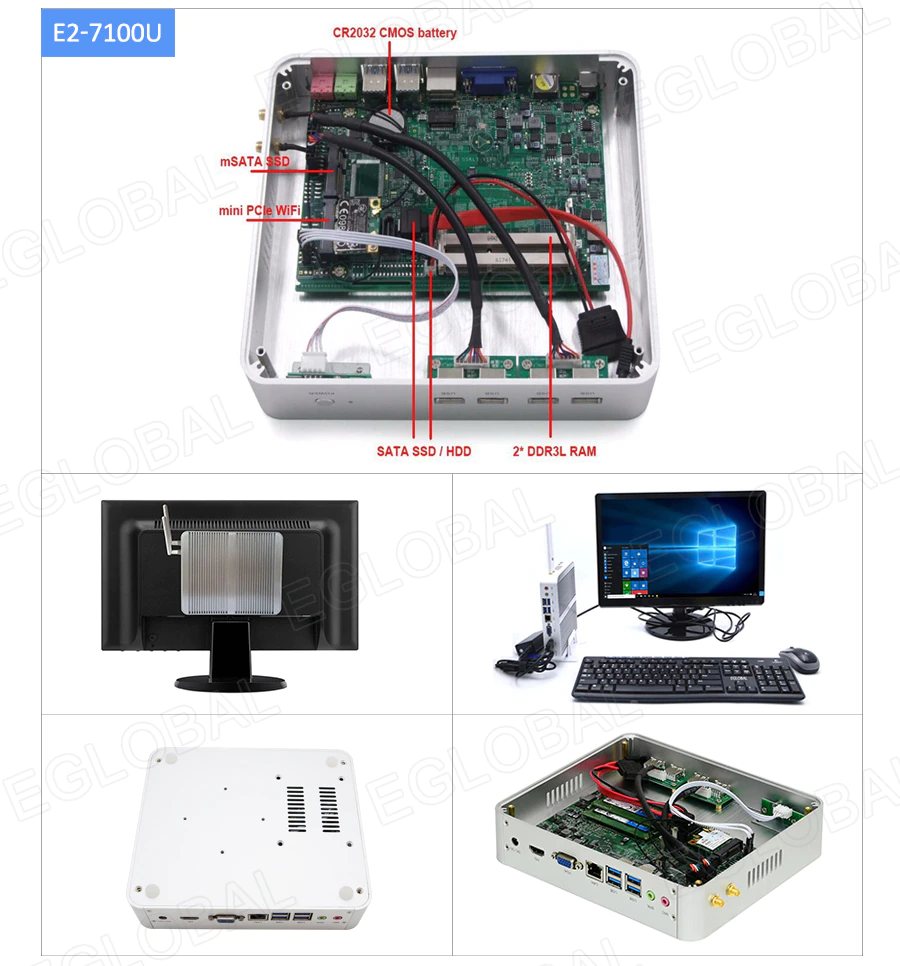

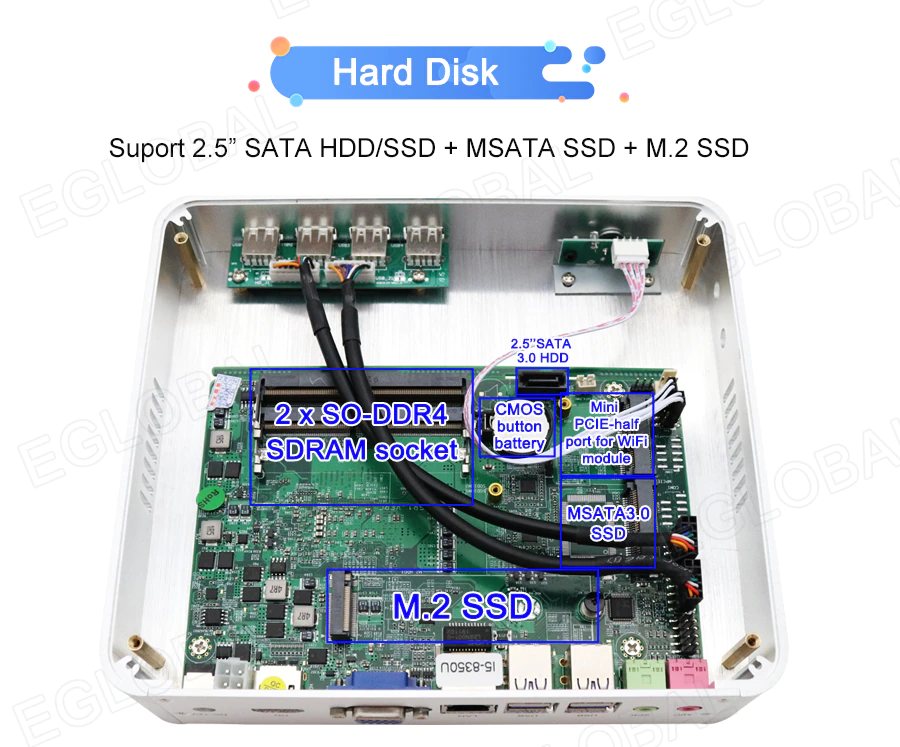

  • Can install M.2+MSATA SSD+2.5” SATA HDD together.

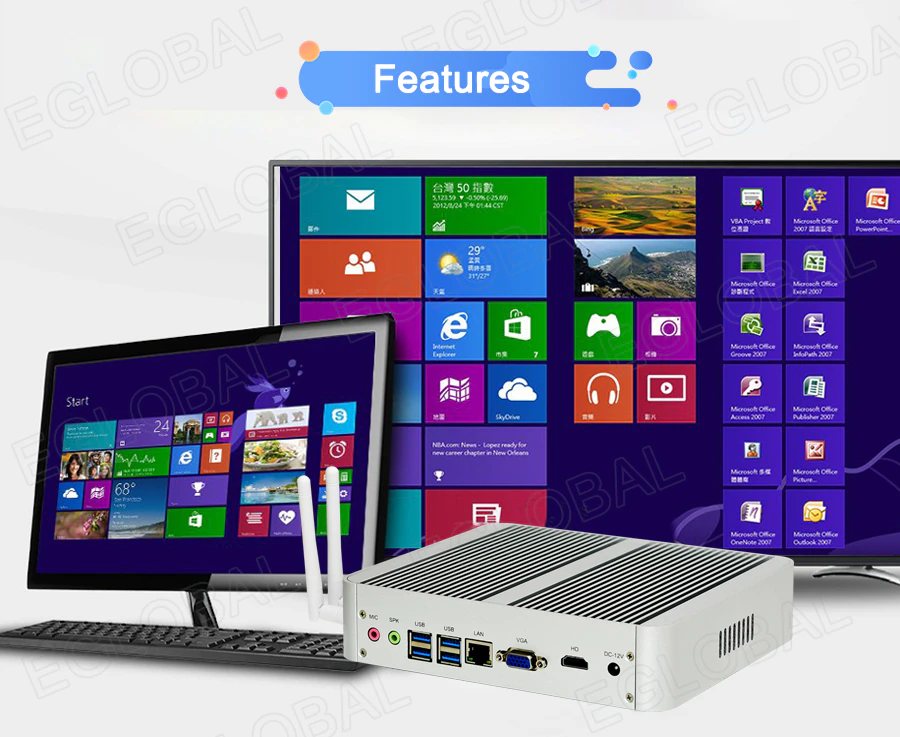

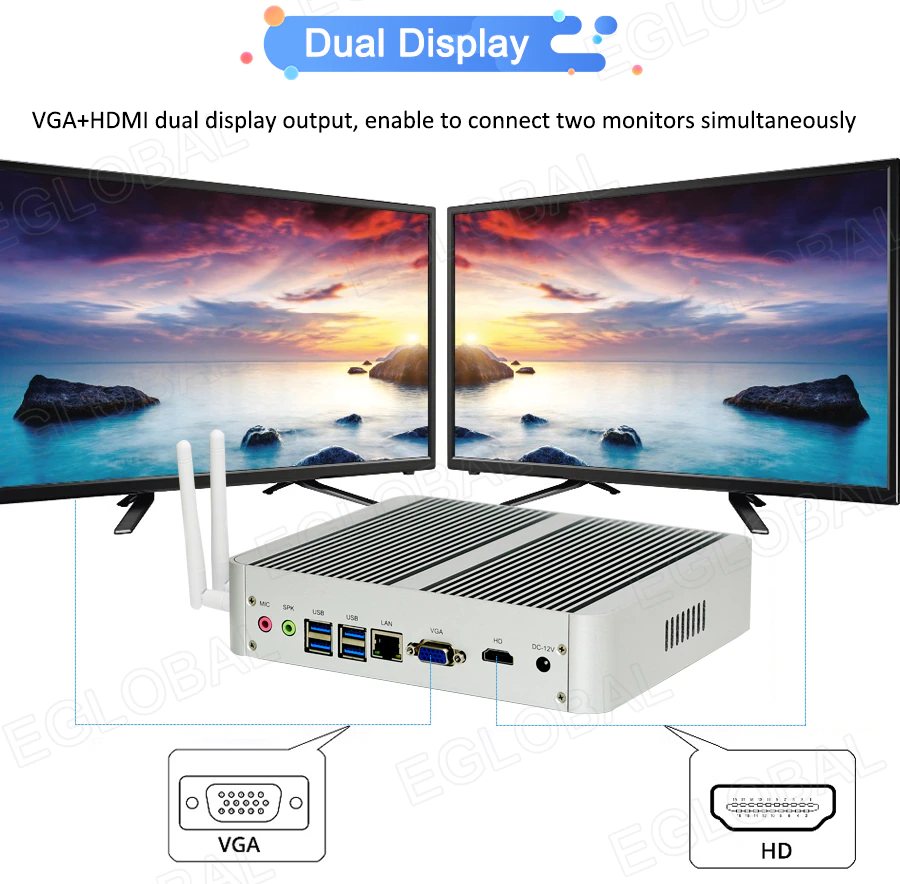

  • Support VGA + HDMI dual display output synchronously.


  1. Dual Channel: Motherboard supports dual channel memory technology;
  2. Noiseless: Fanless system, low consumption, 0.00dB noise;
  3. Special: Support 64 bits computing Turbo boost Hyper-Threading Virtualization technology etc, Can install 1pc 2.5'' SSD or HDD and 1pcs MSSD(5CMx3CM) together(welcome to contact our Pre-Sales if you need it) up to 1TB SSD or 2TB HDD large volume;

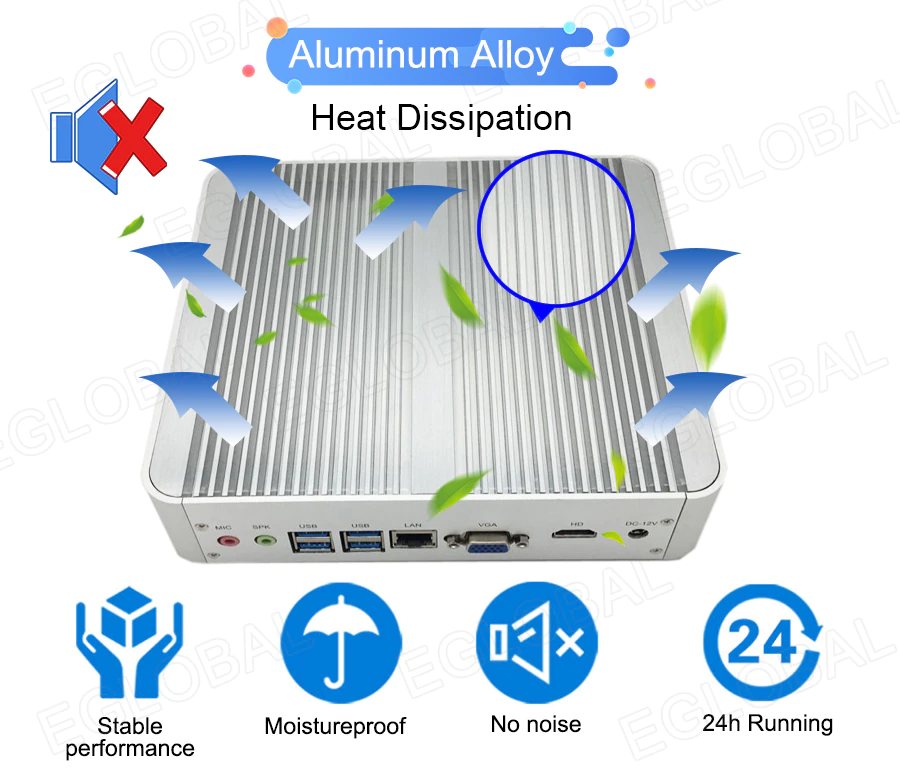

  4. Stable: Newest Intel Core i5 8250U+Kaby Lake R structure+ Intel Graphics UHD 620+Fanless professional passive cooling by alloy case, be able to work 24hours per day;
  5. Slim: Can stand on desk by free bracket we supply;

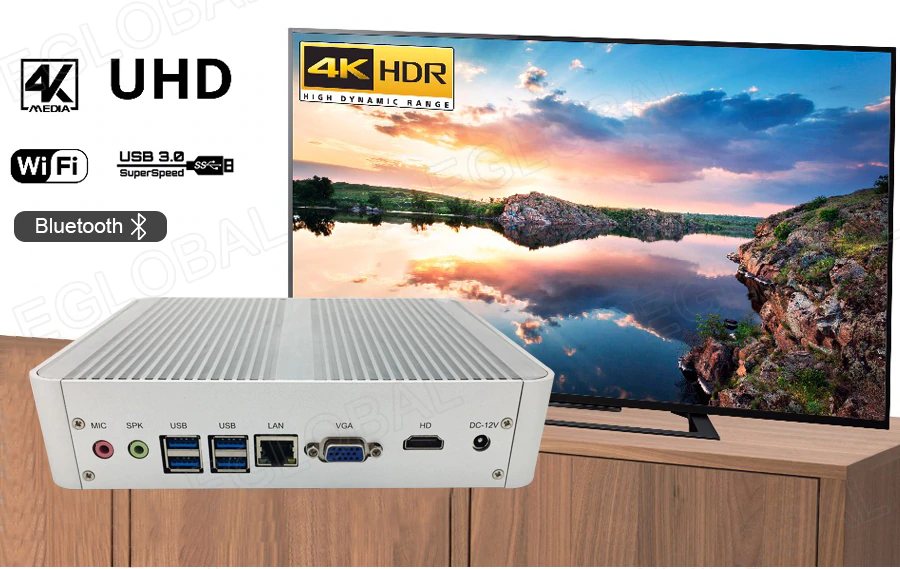

  6. Smooth: High-end Intel Graphics UHD 620, fight again dedicated Graphics! Support all online games, big 3D games, large-scale mapping software, blu-ray and 4K Ultra HD streams, full 1920*1080 HD resolution, 2*HDMI dual monitor display;

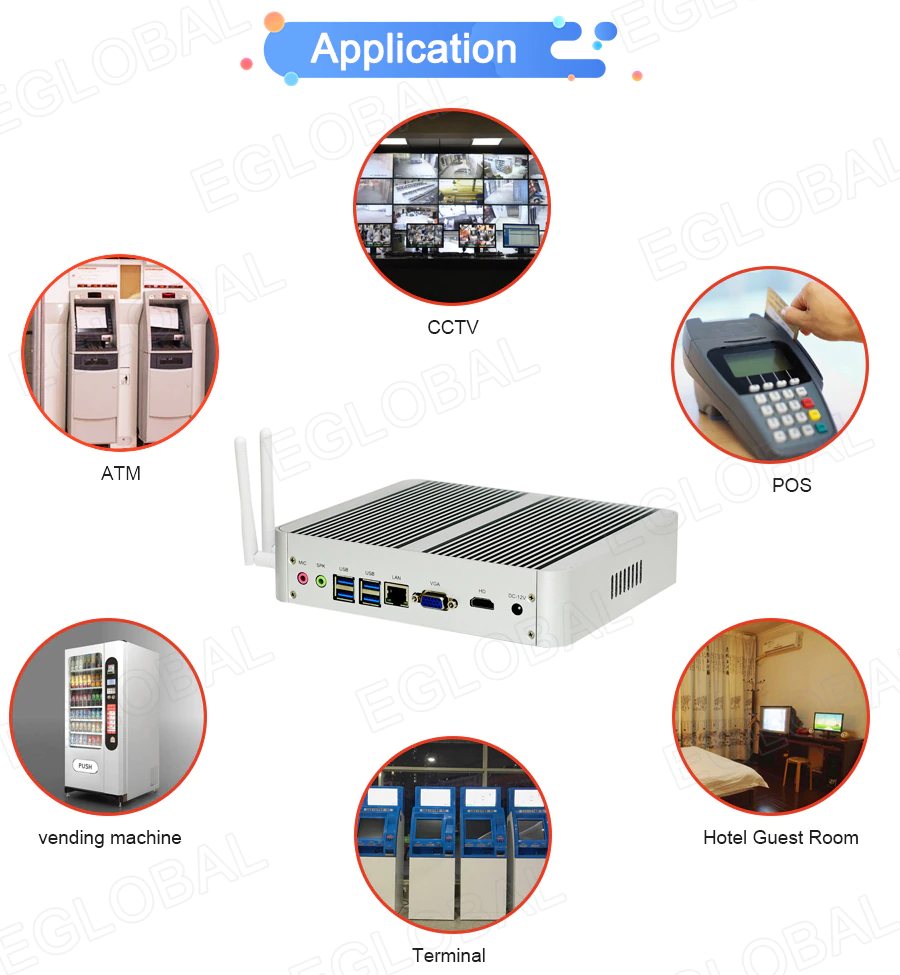

  7. Strong: Work with any brand monitors; 1*RJ45 Gigabit Lan Nic+1*VGA+1*HDMI+4*USB3.0+4*USB2.0 Suit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects;
  8. Low-carbon green: TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.
  9. Certification: CE, FCC & RoHS.

Basic Information:

CPUOnboard Intel Core i5-8250U
ChipsetIntel KABYLAKE
Memory2 x SO-DDR4 SDRAM SlotSupport 4GB/8GB/16GB/32GBDual Channel, DDR4-2133, LPDDR3-1866, DDR3L-1600

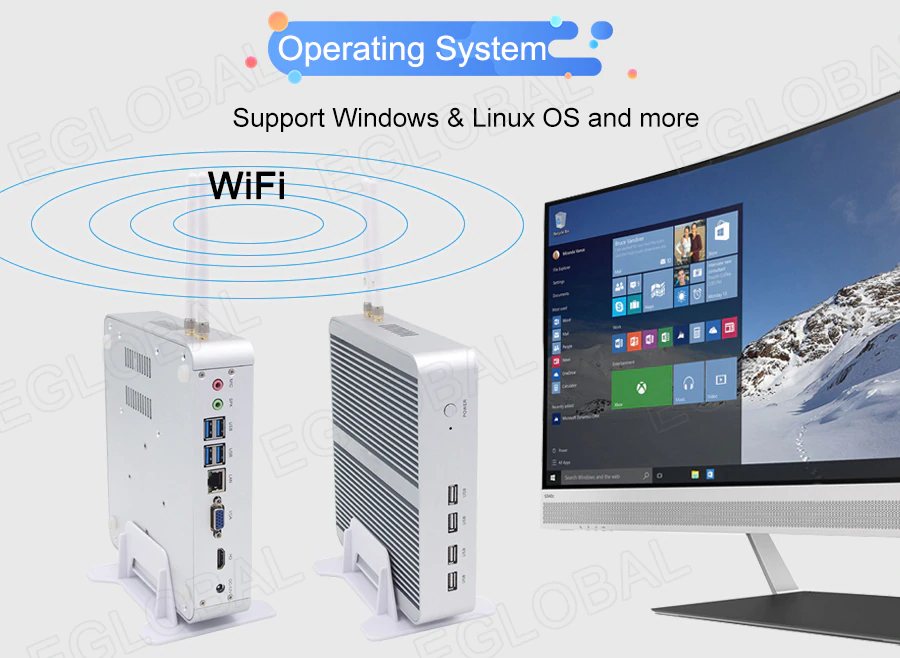

OSWindows 7/Windows 8/Windows 10/Linux
AudioALC897 chip, 7.1 channel soundIntel Lynx Point-LP HDA
NetworkOnboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC lO/lOOMbps/lOOOMbps BaseT LAN
VideoIntel® UHD Graphics 620
Module1 x mini PCIE-half port for Wi-Fi module
Antenna2 x inner RF cables and 2 x external antennas

Power and Working Environment:

InputDC100-240V AC/50-60HZ
OutputDC +12V-+19V, recommend 12V/5A
Operating Temperature0/70 Centigrade(32F~140F)
Storage Temperature-20/+85 Centigrade
Relative Humidity0%~90% (non-condensing)

Input/output port:

Switch1 x Power On/Off Switch
Powerlx DC In
USB4 x USB2.0, 4 x USB3.0
DisplaylxVGA, lxHDMI
LAN1 x RJ45 Giga LAN
MSATA1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s1 x M.2 slot for M.2 SSD, support 6Gb/s
SATA1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Product Dimension & Details:

WeightNet 1.5kg, Gross 3.0kg
ShellSilver color aluminum alloy(any customized color for bulk order)
Cooling ModeFanless
FunctionsCalls on function automatically, Wake-On-LAN, RTC, AWAL

Package Content:

StandardIX Mini PC, IX Power Adapter,, IxPower Cord, IxScrews Bag, lxStand Holder
OptionalWi-Fi antennas, lxHDMI cable, lxLIser Manual, IxVESA mount


Key Features CPU Onboard Intel Core i5 8250U 1.6GHz up to 3.4GHz (Turbo boost Technology) Quad Core 8 thread 6M cache
RAM Support 2*SO-DIMMDDR4-2133/2400 laptop ram Maximum 32GB RAM

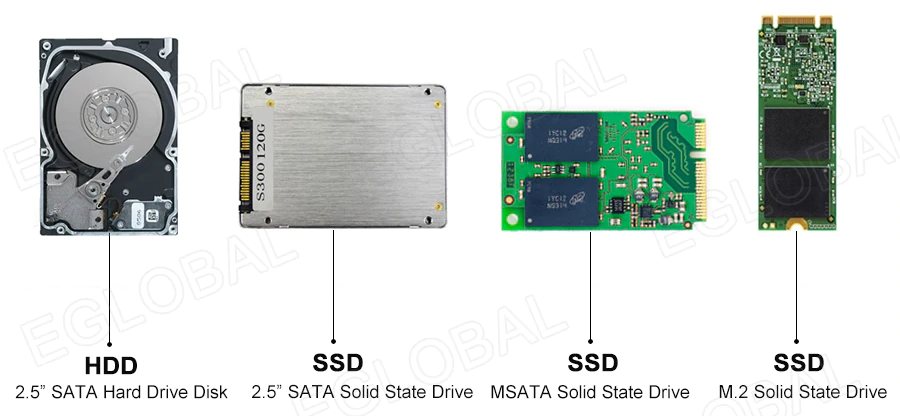

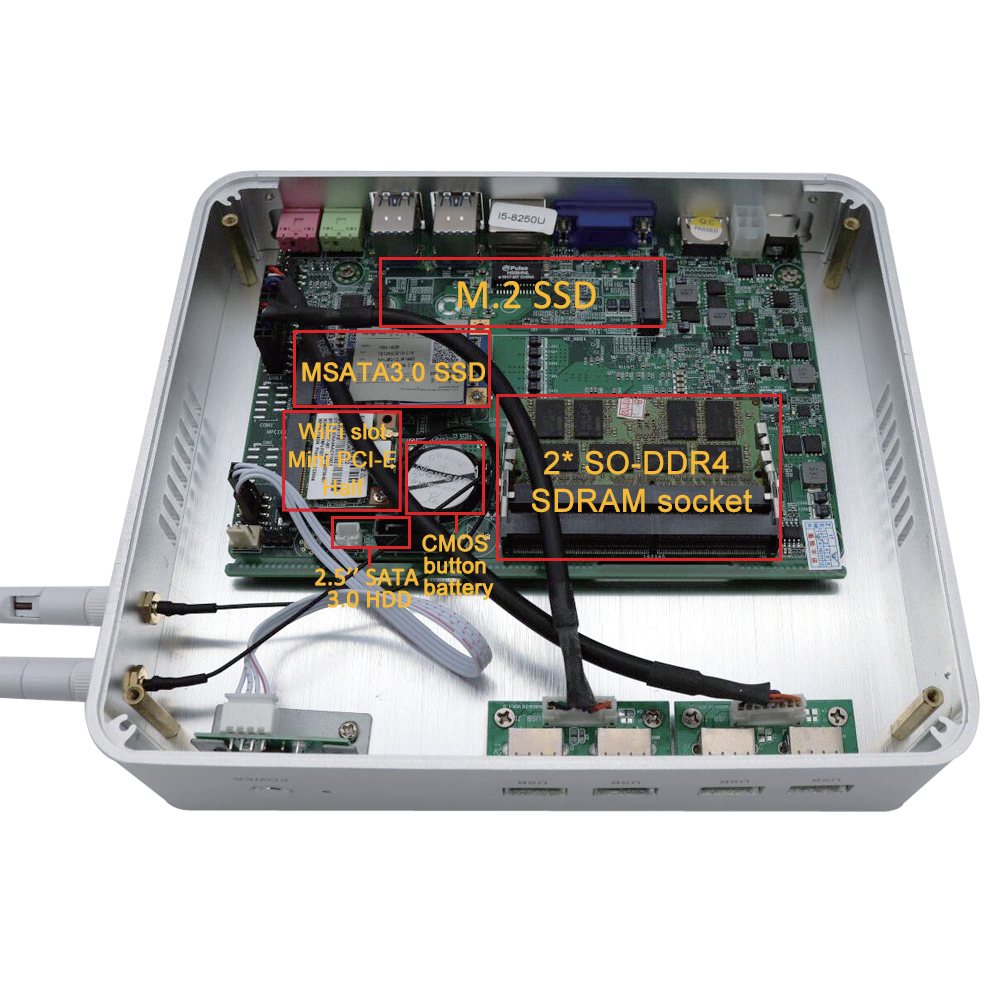

Storage Support 1pcs mSATA SSD+1pcs M.2(NVMe) SSD+1pcs 2.5 inch laptop HDD/SSD installation together
Graphics Intel graphics UHD 620,support ultra HD 4K resolution

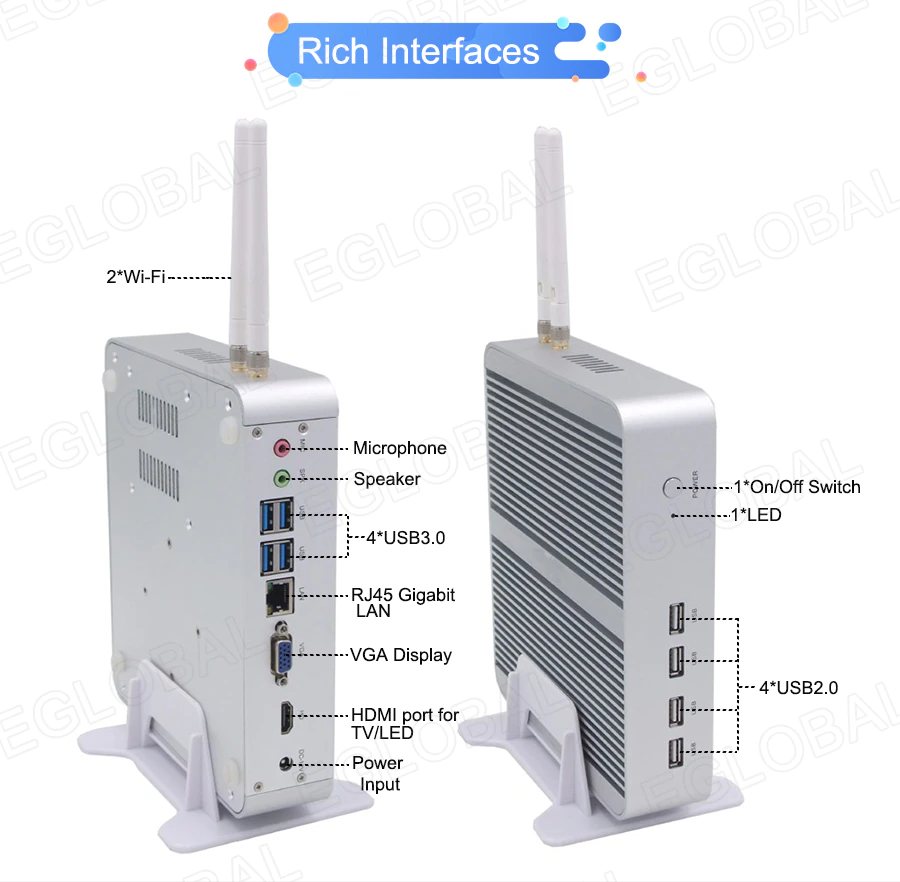

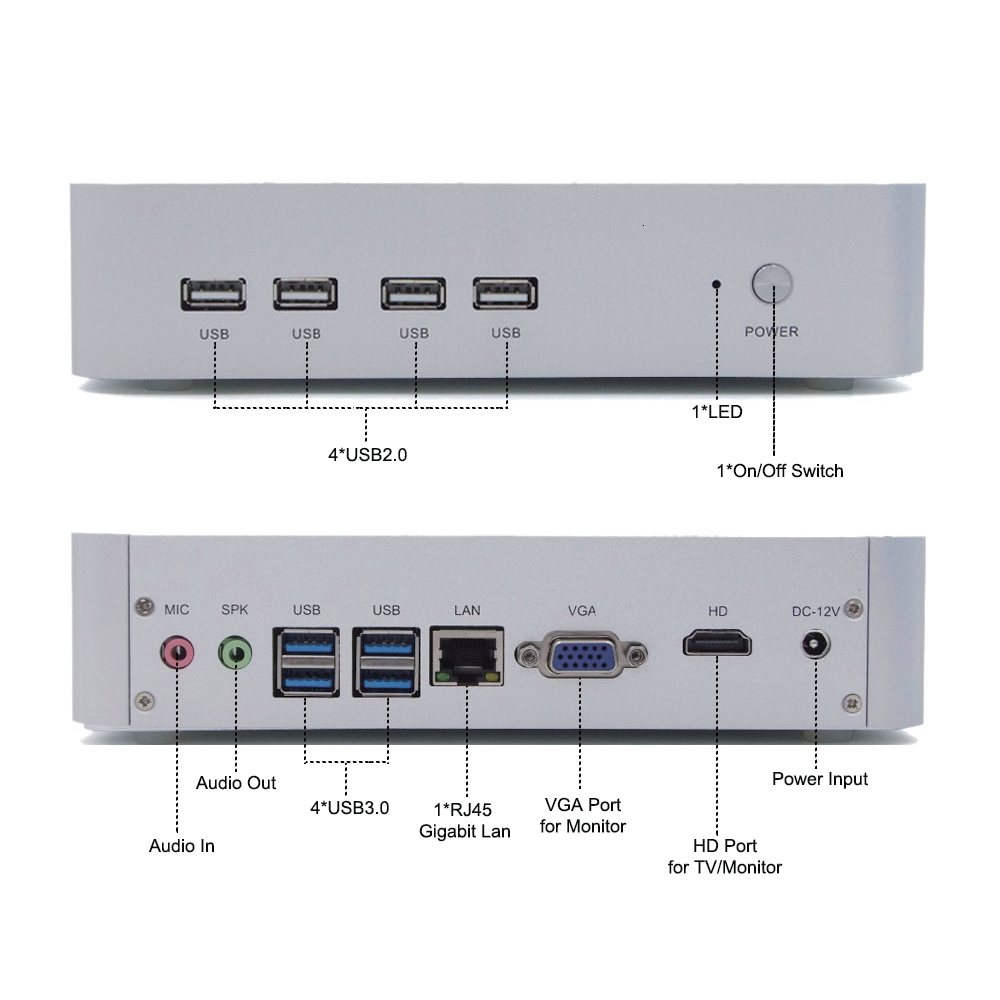

I/O Mic; Speaker; 4* USB 3.0 port; 4* USB 2.0 port; 1* RJ45 Gigabit LAN Port; 1* VGA; 1* HDMI; 1* DC12V In;
Operating System Windows10, Linux Compatible, suggest OpenELEC
Language Multi Language
Feature Fanless system design, without noise
USB port 4* USB 3.0+4* USB 2.0

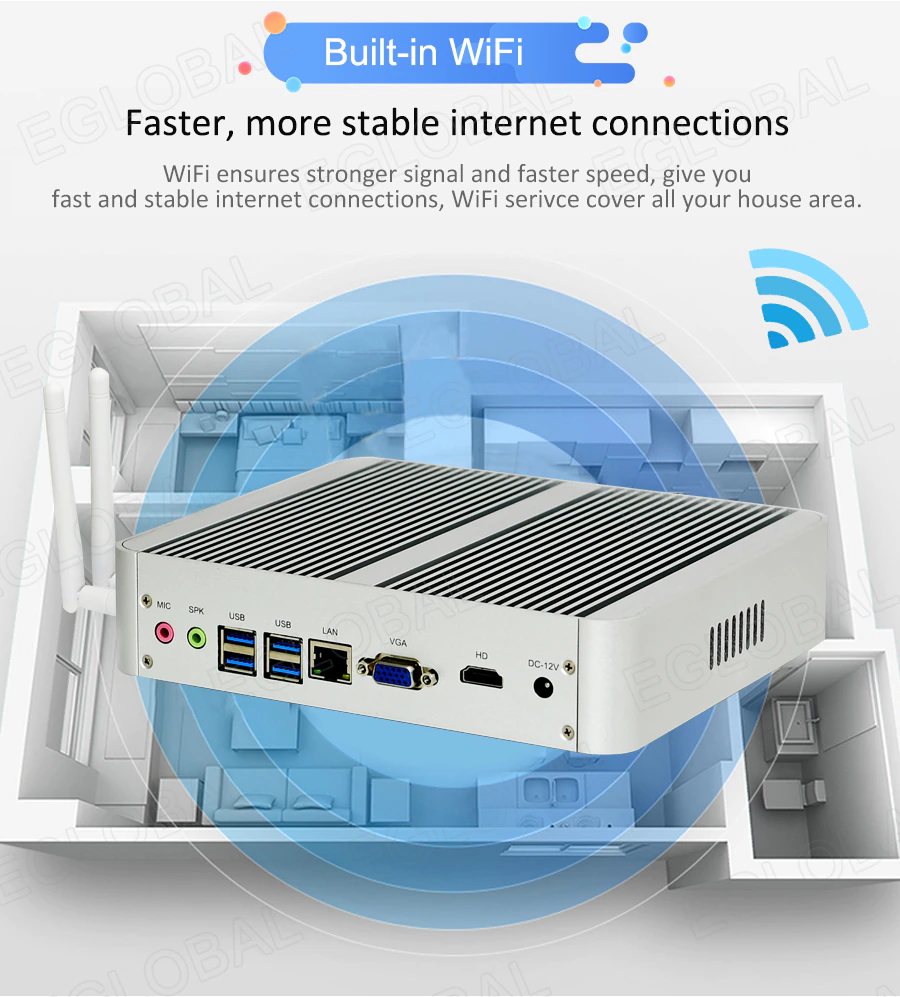

Wireless 300MB Wifi with 2 Antennas
HD Output 1* HDMI port, 1* VGA port, support HDMI+VGA dual display

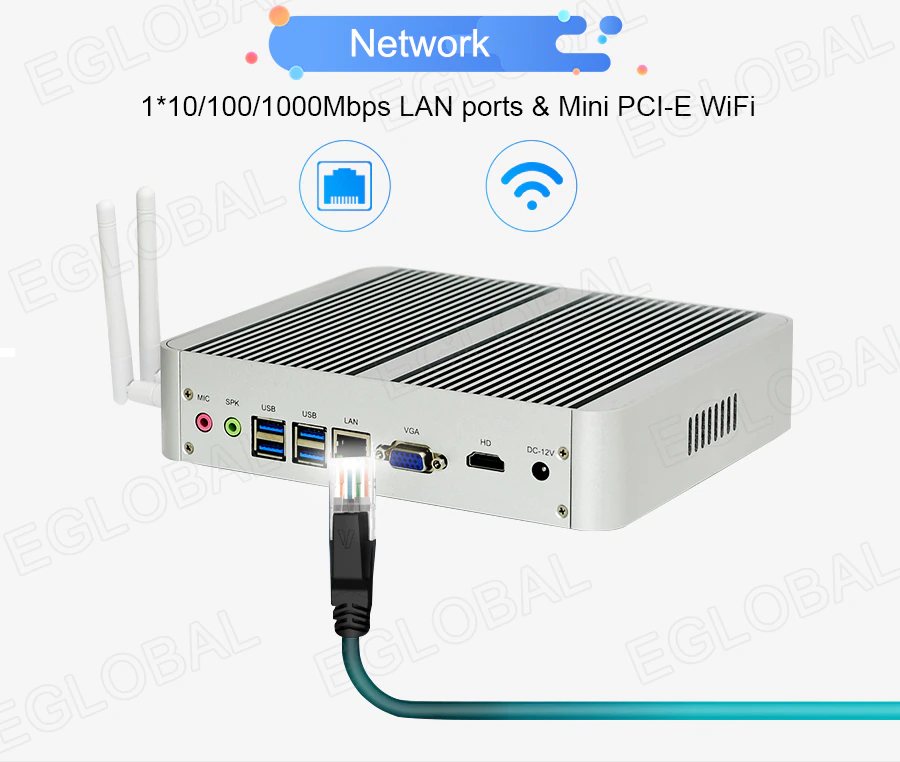

LAN port 1* Gigabit RJ45 port speed up to 1Gbps
Power and Environment Input DC100-240V AC/50-60Hz
Output DC 12V~3A/5A
Operating Temperature 0/70 Centigrade (32F~140F)
Storage Temperature -20/+85 Centigrade
Relative Humidity 0%~90% (non-condensing)
Energy-saving Support Energy-saving technology, Speedstep
64 bit computing Support 64 bit computing
Virtualization Support Virtualization technology
Hyper-threading Support Hyper-Threading
Consumption 15W~28W
Physical Properties Material Brushed Aluminum Alloy
Weight NW:2.0Kg   GW:2.7Kg
Package Content 1* Mini PC; 1* power adapter; 2* Antennas
Warranty 30 days free defective replacement and 3 years free repair

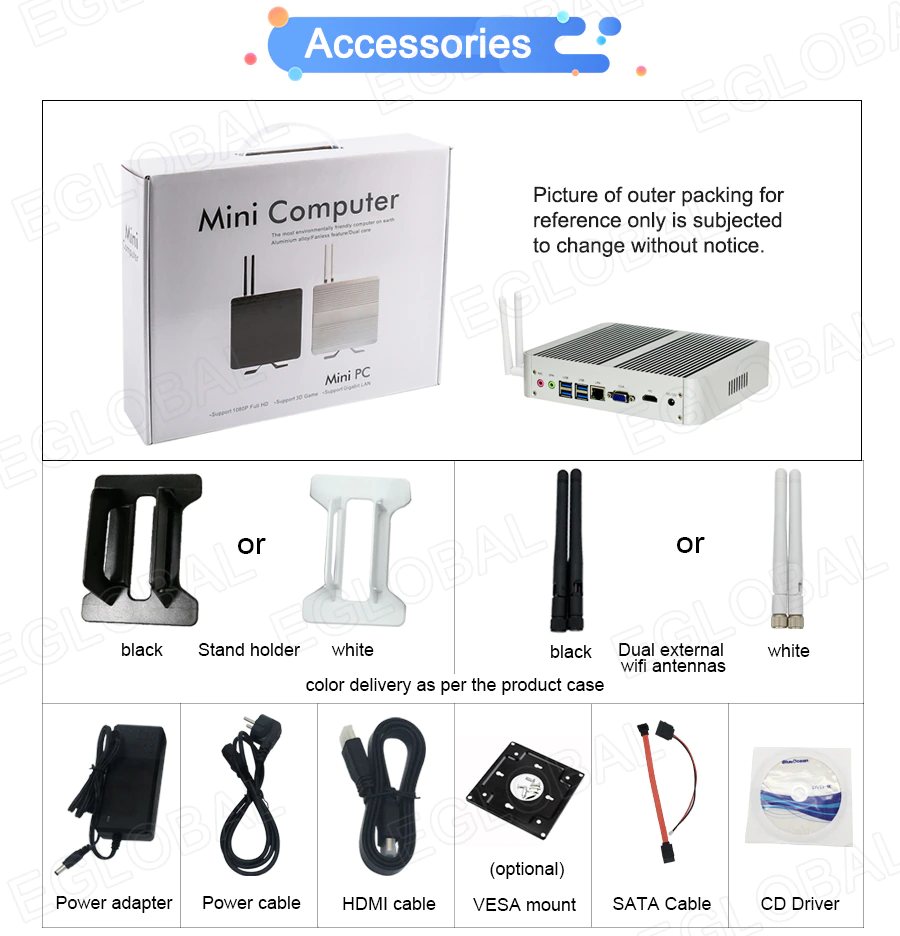

What is in the Box

  1. 1*Mini PC
  2. 1*Power adapter
  3. 1*HDMI cable(as a gift)
  4. 1*CD driver
  5. 1*Desk bracket
  6. 1*Set of SATA power and data cables (for 2.5'' hard drive installation)
  7. 2*WiFi antennas

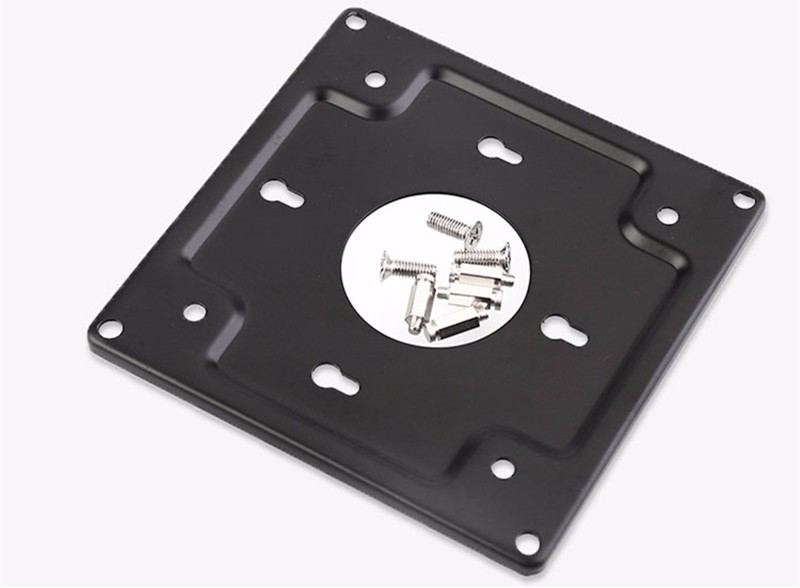

  8. 1*Vesa Bracket(Optional)
