Android Smart TV Box Zido

Description

Video

• Full 4K 60Hz support on HDMI 2.0a, HDR / HDR10, 10-bit color depth, 1.07 billion colors.
• New technology for image quality optimization and an optimized conversion algorithm from HDR to SDR allows you to accurately reproduce the original colors during 4K HDR playback, also without an HDR TV. Expanded SDR HDR mapping function.
• Accurate and automatic frame switching and resolution (23,976,594,94,25,30,50,60).
• Hardware H.265 / HEVC 10 bit video decoding.
• Full Blu-Ray navigation menu (also UHD) and DVD.
• Extensive function of editing the way the subtitles, size, color and font are displayed. Support for downloading subtitles online. Support for special effects in SUP and ASS subtitles.
• Zidoo Poster Wall function. Automatic classification and sorting of the library of films, series and music.
• Kodi ZDMC and access to the Google Play store

Audio

• Full bandwidth support for multichannel HD-Audio multichannel audio, including the highest Dolby Atmos and DTS: X formats as well as stereo downmix.
• Plays native flute 24bit / 192kHz via HDMI outputs, optical coax and USB - with a connected DAC converter.
• Supports other lossless audio formats: SACD, DFF, DSF, APE, FLAC, WAV and etc. Supports the CUE path. Supports the control of a mobile phone without having to turn on the image display device to listen to music.
• Only in Zidoo the sampling frequency of SPDIF - 192KHz. The limits of the Android capability have been crossed for the first time.
• Plays SACD - conversion to 176 kHz.

Functionality

• Zidoo is one of the largest suppliers of devices with Realtek processors. As a result of the cooperation of both companies and collecting the experience of hundreds of thousands of users, an efficient and optimized 1296 layout was created
• New, improved, quad-core Realtek 1296 processor, 2GB of memory, 16GB of built-in memory eMMC, LAN card Gigabit, 802.11ac 2T2R 867 Mb / s WiFi and Bluetooth 4.2.
• Android 7.1 system and working in parallel with OpenWRT with NAS and client torrent
• Aluminum housing.
• Large LED display.
• Wealth of interfaces: 1x SATA 3.0 3.5 "Pocket, 1x external SATA 3.0 connector, 2x USB 2.0, 2x USB 3.0, 1x Spdif Toslink, 1x Spdif Coaxial, 1x composite video, 1x RCA Audio (left and right), 1x RS232, 1x HDMI OUT 2.0a output, 1x HDMI IN 2.0 input.
• Independent SATA 3.0 ports. Patented solution for a metal pocket for HDD.
• The new, improved WiFi 2T2R MIMO module supports speeds up to 867 Mb / s.
• Intelligent temperature control, efficient fan.
• Possibility of remote control from phones, tablets or PC (TV does not have to be running)
• HTTP support, RS232 (on / off), Control4
• Support for network protocols: NFS, SMB V2, SMB V1
• HDMI input with PIP function, recording from unprotected sources, streaming in the network - the possibility of connecting a second source.
• Ergonomic, backlit IR remote control with command learning function.

Specification:

• Chipset : REALTEK RTD1296DD
• Maximum resolution : 4K60
• CPU architecture:  ARM CORTEX A53
• Number of cores:  4
• Timing:  2
• GPU:  MALI-T820MP3
• System:  ANDROID 7.1 + OPENWRT
• RAM:  2GB
• Built-in memory:  16GB
• HDD pocket:  1x 3.5 "SATA 3.0
• USB 2.0:  2
• USB 3.0:  2
• Others:  SATA 3.0 external
• Bluetooth:  Yes. 4.2
• Network connection:  1xRJ45, Gigabit Ethernet
• WiFi:  DUAL-BAND 802.11 A / B / G / N / AC 2X2 MIMO
• HDMI output:  1x HDMI 2.0A
• HDMI input:  1x HDMI
• Composite Video:  1
• Stereo L / R Audio:  1
• S / PDIF Toslink:  1
• S / PDIF Coaxial : 1
• Video codecs:  HDR, 10-BIT HEVC / H.265 to 4K @ 60FPS, VP9 to 4K @ 60FPS, H.264 to 4K @ 24FPS
• Audio codecs : Support HD Audio multichannel passthrough and downmix for 3D stereo SBS: Yes
• 3D Top Bottom:  Yes
• 3D Frame Packing:  Yes
• Blu-Ray 3D:  Yes
• DVD ISO:  Yes
• Blu-Ray ISO:  Yes
• Dolby Digital (AC3) Downmix:  Yes
• Dolby Digital (AC3) Passthrough:  Yes
• Dolby TrueHD Downmix:  Yes
• Dolby TrueHD Passthrough:  Yes
• DTS Downmix:  Yes
• DTS Passthrough:  Yes
• DTS-HD MA Downmix:  Yes
• DTS-HD MA Passthrough : Yes
• Kodi : in the ZDMC version - installed separately
• Google Play:  Yes - installed separately
• Fan:  Yes
• Remote control : IR
• Length (mm) : 302
• Depth (mm):  240
• Height (mm) : 100
• Kit : 1x Player, 1x Remote control, 1x HDMI cables, 1x Power supply, 1x Power cable, 2x WiFi antennas, 1x Manual

Higher efficiency

Thanks to the use of the new Realtek 1296DD chip, Zidoo Z10 performance is 30% higher than the previous generation of devices. The Z10 has more connection options and has been equipped with a new image optimization engine and an HDR to SDR conversion engine.

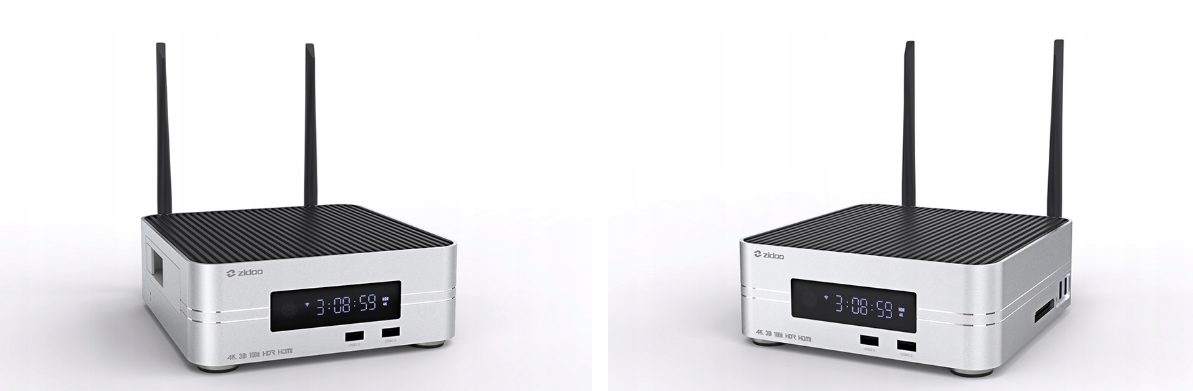

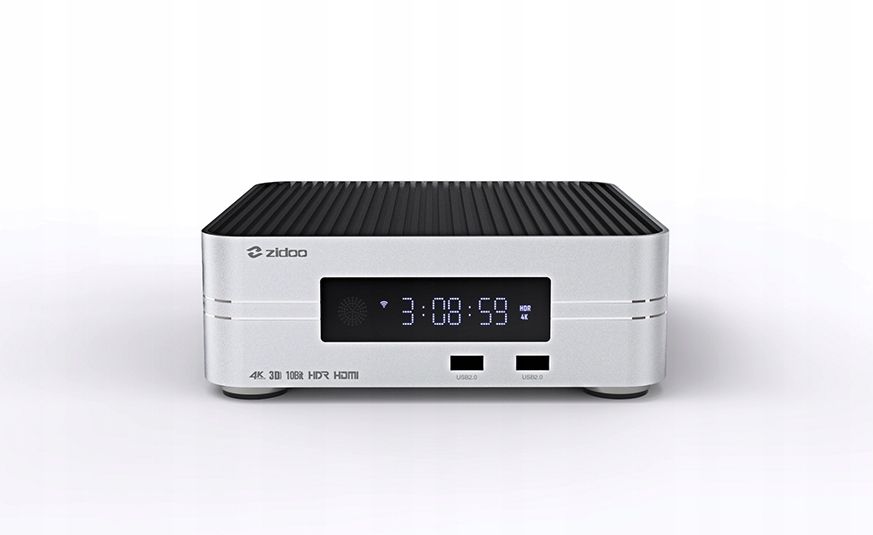

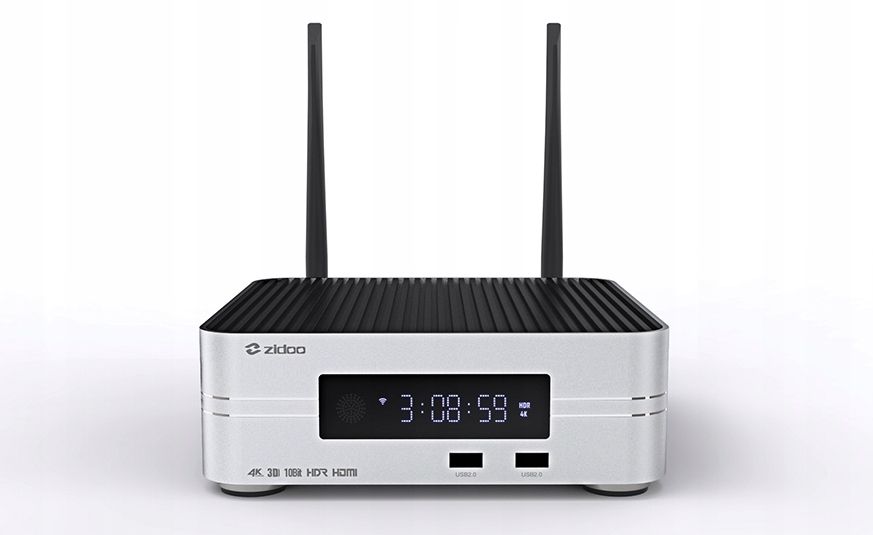

New housing and display

The Z10 housing is made of elegant, brushed aluminum. On the front panel we get a large, readable LED display.

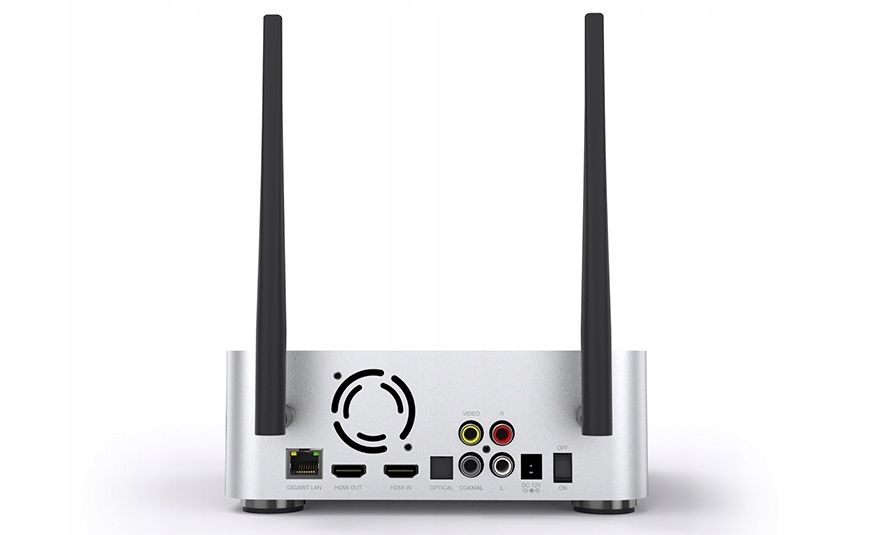

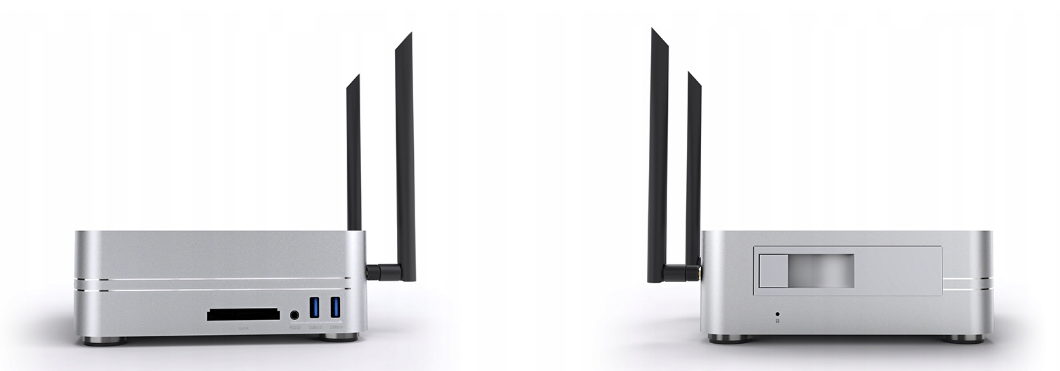

A lot of connection options

The patented 3.5 "HDD SATA HDD system and a wealth of interfaces, including the second SATA 3.0 slot, two high-speed USB 3.0 connectors, Gigabit LAN, SPDIF Toslink / Coaxial, RCA analog audio (L / R), RCA composite, HDMI 2.0 a, HDMI IN, RS232, make the Zidoo player nothing missing.

Cooperation between Zidoo and Realtek

Zidoo is one of the largest suppliers of devices with Realtek processors. As a result of the cooperation of both companies and collecting the experience of hundreds of thousands of users, an efficient and optimized 1296 layout was created

The latest technologies and quality assurance

Quality is the driving force behind great projects. ZIDOO attaches great importance to the quality of its products, which use the highest quality electronic components in accordance with environmental standards around the world. Z10 has not only a stable structure, but also good heat dissipation properties, eg the motherboard uses gold precipitation technology, which guarantees product life.

New WIFI module and fast memory

Improved WiFi 2T2R MIMO supports up to 867 M / s speed. The Z10 also has 2GB of RAM and built-in mass memory with 16GB eMMC capacity.

Functional remote control with learning function

Illuminated, fully functional remote control with IR learning function. Convenient, remote control "without a dead angle".

High quality power supply.

Effectively reduces the interference of the external magnetic field, ensuring high quality video signal.

Intelligent temperature management of the device.

Z10 has an active fan with adjustable working parameters.

Android 7.1

The new Android system offers higher performance than the devices from the previous generation, it allowed to build an intelligent operating system that better understand the user's needs. The device also has an OpenWRT system that allows you to use the device as a NAS server with m.in. Torrent client. More: www.openwrt.org

Rich protocol support

NFS support, SMB V2, SMB V1 and many other network protocols make the Z10 work successfully on any network.

Remote control from any phone, tablet or PC with a web browser.

Zidoo Control Center is an interface available from the browser for convenient control of the player on the network. It has a remote control function and allows you to browse movie or music libraries or run applications. A great solution for music fans will be to control the music player without turning on the TV. In addition, Zidoo allows you to control HTTP, RS232 (on / off) and Control4.

A real pleasure from 4K 60Hz. HDR support and 10-bit color depth.

New technology for image quality optimization and hardware 4K 60Hz allows you to get the best image quality with the possibility of correction. Support H.265 / HEVC codec 10bit and automatic switching of resolution and frame (23.976,59.94,25,30,50,60). The Z10 has an optimized HDR conversion algorithm that allows you to accurately reproduce the original colors during 4K HDR playback without even having an HDR TV. It also supports the SDR SDR mapping function.

A new music player

Zidoo music player 3.0 has a new user interface and natively supports SACD, DFF, DSF, APE, FLAC, WAV and other lossless audio formats. It has CUE support with list display and equalizer. Automatically downloads album art and song lyrics. The interface is simple, neat and convenient to use.

Native 192KHz Hi-Fi support

Zidoo as the first producer of Android players has abolished system limitations in terms of sampling frequency. The entire Z series models support native 192KHz on digital connectors.

Poster wall - movie management center

Zidoo has developed one of the best UI for movie management on the market - Poster Wall. Automatically downloads covers for movies and series, along with descriptions, casts and ratings. It allows you to categorize materials, quickly search or edit.

 An extensive function of editing the display of subtitles

Z10 allows you to edit the size of the subtitles, color, font. Supports downloading subtitles online and handling special effects in the subtitles SUP and ASS.

Full Blu-Ray navigation menu

Zidoo players were the first on the market to support playback of Blu-ray files together with the UHD Blu-ray navigation menu, both from ISO files and structure. Experience watching complete Blu-Ray movies and DVDs with access to all materials, like on a physical disc player, with a choice of chapters, scenes, alternative endings, additions or ending with the choice of audio track and subtitles.

Full multichannel sound support

The Z10 supports the full passthrough of multichannel HD-Audio multichannel audio, including the highest Dolby Atmos and DTS formats: X, passthrough as well as downmix.
