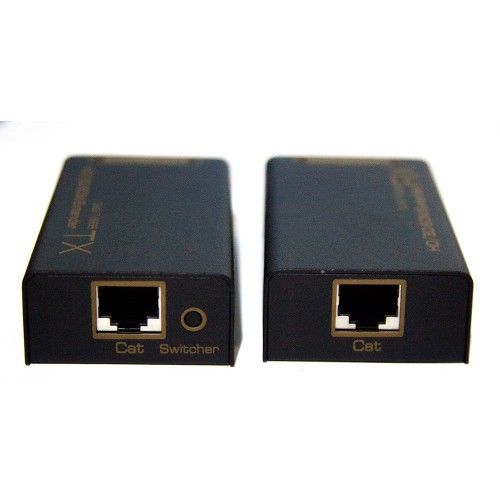

HDEX002M1 single CAT5E/6 HDMI Extender with 3D can transmit HDMI signal resolution Full HD at a distance of 60 m from the source (HD-receiver, BD-player, computers and other) to the receiver signal (HD-TV, panel, projector). Supports transmission of 3D content. One cable is used to transmit the signal Cat 5E/ Cat 6. HDMI signal with a resolution of 1080p by using categories Cat 6 transmitted over a distance of up to 60 meters, by using category cables Cat 5E - at a distance of 30 meters. The system requires minimal adjustment for used by the cable length - for a start you will need to press the button "switch" in the transmitter, system exchange information with the monitor, for which receiver is connected (TV, display, projector) itself will adjust the transmission parameters (gain, delays time, AFC correction), after which the indicator lights "status". The kit consists of a transmitter (TX) and receiver (RX) signal. HDMI Extender has a signal amplification function, that allows to transfer a signal on connected to the input and output cables at a distance of 15 meters without loss (higher quality cable, the distance is increased). On top of the device has light indication on and connect the source or signal receiver. All connectors are located on the side panels of the devices. Installation extension is possible on a horizontal surface or rack.
- HDMI version - HDMI 1.3;
- Resolution supported - 1080p/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i/24/50/60fps;
- Colour reproduction - 24bit;
- Support transmission of 3D content;
- Supported audio formats - LPCM7.1/DTS/Dolby AC-3/DSD;
- Max. bandwidth - 225 MHz;
- The data rate - up to 6.75 Gbit/s;
- The level of input/output TDMS signals - 0,5...1,5В (TTL);
- The level of input/output DDC signals - 5В (TTL);
- Permissible cable length type AWG26 between source and receiver - up to 15 meters;
- Compensation of losses in a connected to the output type cable AWG26 - up to 15 meters;
- Consumption current - up to 600mA;
- Power - external power supply AC 100-240W/50Hz, DC 5W/1А;
- The range of operating temperatures - -15°С...+55°С;
- Operating humidity - 5...90% (non-condensing);
- Dimensions of the device (L x W x H) - 82x44x22 mm;
- Installation options - on a horizontal surface or rack;
- Weight - 195 g.
Area of application of the splitter HDEX002M1 single CAT5E/6 HDMI Extender with 3D: HDMI-signal routing in the home ["multiroom" (large apartments, homes and cottages)] well as professional installations [for example for demonstration promo - and advertising information simultaneously on a plurality of displays in commercial networks, exhibition halls and "showrooms"] to connect remote viewing screen.
