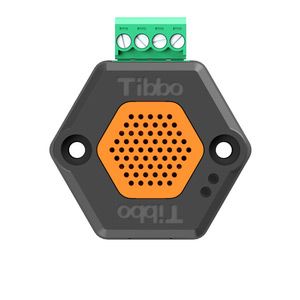

Tibbo BP#04 RS485 Modbus

SKU
BP#04
3 045,11 ₴
Немає у наявності
Ambient light sensor from Tibbo Bus Probes family of environmental sensors with an RS485 interface.
  • Is very compact (measuring only 40x36mm externally) and sport an attractive look and feel.
  • Has two mounting holes for attaching it to walls and other surfaces.
  • Can be configured and tested using our web-based test app (you will need to connect the probes to your PC or Android smartphone via our Web485 board).

Bus Probes are a family of environmental sensors with an RS485 interface. The probes communicate using the standard Modbus RTU protocol.

At the moment, Tibbo offers four types of probes: an ambient temperature sensor (BP#01), an ambient temperature and humidity sensor (BP#02), an ambient light sensor (BP#03), and a three-axis accelerometer (BP#04).

Bus Probes are typically wired to a twisted pair cable that distributes power and carries RS485 "+" and "-" lines. All probes accept a supply voltage from 4V to 15V, allowing you to power them with 5V sources (for example, the 5V output of Tibbit #00-3) or standard 12V power supplies. The wide supply voltage range also means that you can allow for a significant voltage drop along the bus (e.g., when using a bus cable of considerable length).

Bus Probes are very compact (measuring only 40x36mm externally) and sport an attractive look and feel. Each sensor has two mounting holes for attaching it to walls and other surfaces.

Bus Probes can be configured and tested using our web-based test app (you will need to connect the probes to your PC via our Web485 board). Tibbo also offers a browser-based test kit (see BP-TEST-WEB-KIT below), which consists of four Bus Probes (one of each type), a Web485 board, and the necessary cables.

Two Tibbo Project System (TPS), Gen. 2-compatible Tibbo BASIC applications for the setup and testing of Bus Probes are available: BP-Tester-UI and BP-Tester-Web. We also offer a TPS-based test kit (see BP-TEST-KIT below), which consists of four Bus Probes (one of each type), a TPS2L(G2) preloaded with the BP-Tester-UI app, and the necessary cables.

Specifications

Interface Half-duplex (two-wire) RS485 interface
Communications parameters: 38400-8-N-1
Protocol Modbus RTU
Power supply range 4~15VDC
BP#01
(ambient temperature sensor)
  • Measurement range: -40°C to 125°C1
  • Measurement resolution: 0.25°C
  • Measurement accuracy: ±1°C2
BP#02
(ambient temperature and humidity sensor)
  • Temperature measurement:
    • Measurement range: -25 to 50°C
    • Measurement resolution: 0.5°C
    • Measurement accuracy: not specified3
  • Humidity measurement:
    • Measurement range: 10 to 90% RH
    • Measurement resolution: 0.1% RH
    • Measurement accuracy: ±5% RH4
    • Temperature range for valid humidity measurements: 5°C to 50°C
BP#03
(ambient light sensor)
  • Measurement range: 1 to 65528 lux
  • Measurement resolution: 1 lux
  • Measurement accuracy: 1 lux
BP#04
(Three-axis accelerometer)
  • Independent X, Y, and Z axes
  • Measurement range for each axis: ±6G
  • Measurement resolution for each axis: 0.003G
  • Measurement accuracy for each axis: 0.1G
Operating temperature range -40°C to +85°C
Operating relative humidity 10-90%
Mechanical dimensions
(excluding terminal blocks)
40.0 x 36.0 x 19.0 mm

Here is How You Can Use Bus Probes

Use the probes in your
Modbus system

Tibbo Bus Probes feature an RS485 interface and support the industry-standard Modbus RTU protocol. Therefore, existing Modbus systems can use them as general-purpose environmental sensors.

To aid in the creation of sophisticated Modbus systems and network-enablement of serial Modbus devices, Tibbo also offers Modbus Gateways.

Deploy the probes as a part of our
TPS-based Remote I/O solution

Our Remote I/O solution supports the use of Bus Probes. Connect the probes to the RS485 port on a standard TPS-based controller and collect environmental data via the RS485 bus.

Combine TPS devices with Bus Probes to create environmental monitoring systems.

Key Features

Half-duplex RS485
interface
Modbus RTU
protocol
4V to 15V power

Available Probes

BP#01: Ambient temperature
sensor
BP#03: Ambient
light sensor
BP#05: Flood/leak sensor
BP#02: Ambient temperature
and humidity sensor
BP#04: Three-axis
accelerometer
BP#06: Opto-isolated digital input (DI)
ВиробникTibbo
МатеріалПластик
КолірСірий
Розміри40.0 x 36.0 x 19.0 mm
Вага0.100000
