OEM термопринтер Rongta R

SKU
RP203
4 849,63 ₴
В наявності
  • 2″ Panel Printer
  • 48mm print width, 384 dots/line
  • 8 dots/mm (203 dpi) resolution, 0.125mm dot size
  • 85mm/sec print speed
  • Buffer memory 32kB
  • USB or RS232/TTL interfaces
  • DC3.5V ~ 9V input voltage
  • Max 3A current consumption, typical use 1.5A
  • 58mm paper roll width with 30mm Ø
  • Thermal head life, 50km
  • Compact size 76.8 x 77.4 x 43.5mm
OEM термопринтер Rongta RP203 USB, чорний наявний для покупки з кроком збільшення в 1

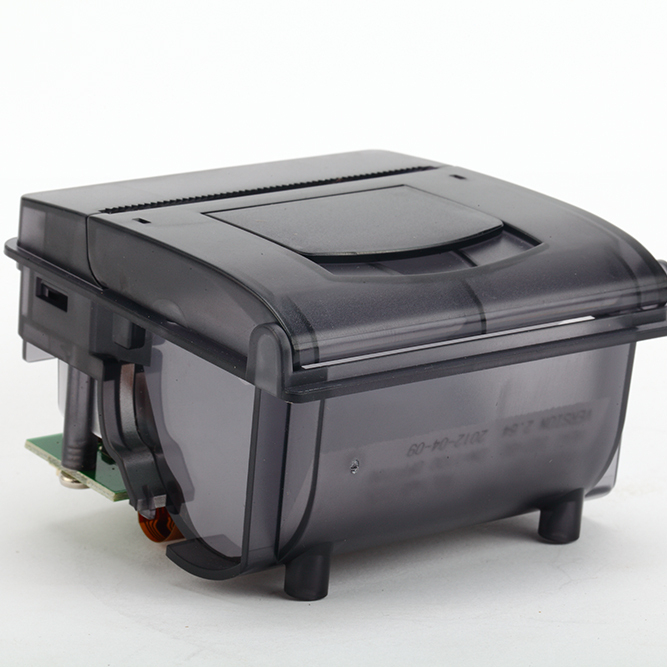

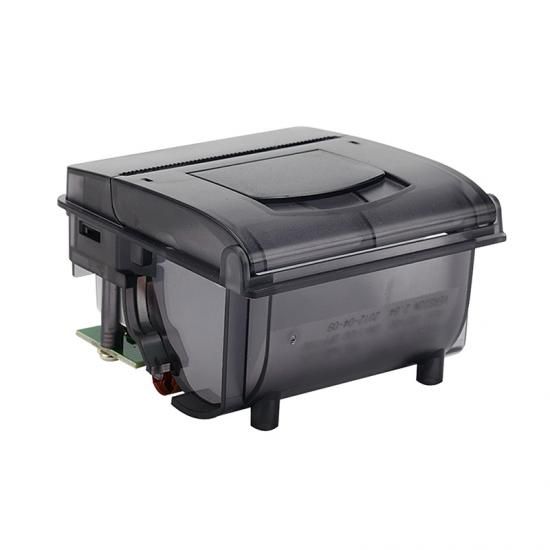

The RP203 is a clamshell design compact panel mount printer measuring just 76.8 x 77.4 x 43.5mm, it has an integrated USB or RS232/TTL interface for easy communication and is driven from a DC3.5V ~ 9V power supply (not supplied), drawing a maximum current of 3A although typical operation will only see a 1.5A figure. A fast print speed of 85mm/sec and a high resolution of 8 dots/mm (203dpi) with 384 dots/line produces high quality text, graphics and barcode print outs fast enough for most industrial applications.

Highlights

1.Fashionable ,delicate and elegant.
2.Low noise direct thermal printing method.
3.Paper out detection,automatic memory printing function.
4.RS232/TTLl interface.
5.Easy paper loading.

Specification

Paper Working Loading way easy
Cutting way divulsion(dentiform)
Printer Performance Print method direct thermal print and auto paper feed
Printing density 384 dots/line
8 dots/mm
Printing width 48 mm
Max printer speed 85 mm/s(max.)
Dot distance 0.125 mm
Drawing/Bar code Word size(WxH mm) 0.75×1
ASCII Character(WxH dots) 16 lattice:8×16; 24 lattice:12×24
ASCII Size(WxH mm) 16 lattice:1×2; 24 lattice:1.5×3
Drawing/bar code suitable
Testing Method Lacking paper testing photoelectricity sensor
Control System Printer interface TTL/RS232
Buffer 32k
Command system ESC printer command/WH printing command
Power Woking voltage DC3.5V--9V (from7.2-7.5V,with highest speeed and excellent effect)
Current 2.5A-3A
Printer Mechanism Printing head lifespan 50km
Paper  Paper item thermal paper
Paper width 58mm
Papaer thickness 65±5um
Diameter of paper roll 30mm
Environment  Operating temperature/humidity 0~50℃/10%~80% RH
Storage temperature /humidity -20~60℃, 10%~90% RH
Physics Specification Dimension (WxHxD mm) 76.8mm*77.4mm*43.5mm
ВиробникRongta
Максимальна швидкість друку150
Роздільна здатність друку, dpi203
Ширина витратного матеріалу85
Діаметр витратного матеріалу84
RS232Так
LPTНі
USBТак
BluetoothНі
RJ45Ні
WiFiНі
Media Width [mm]24
Printing Length [mm]1000
Sensor GAPНі
Sensor Black MarkНі
Sensor NotschНі
Надійність104
Lagertemperatur-40 ~ 55℃
Температура рабочая5 ~ 45℃
Питание24DC,2.0A
Розміри237mmx146mmx130mm
Вага1.500000
