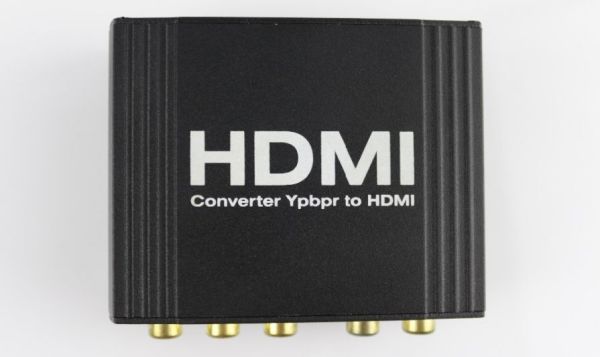

YPbPr to HDMI Converter YUV/YPbPr/YCbCRr+SPDIF(Optical+Coax) input signal,One HDMI output

More Views

Залишіть відгук про цей товар першими

31,10 $

Наявність: На замовлення (2 тижд.)

FEATURES:



  • One YUV/YPbPr/YCbCr +R/L input signal convert to one HDMI sink devices

  • Support video input : Up to capture YPbPr1080p, 330Mbandwidth,50/60H

  • Support audio input : R/L analog

  • HDMI output : Support up to 1080p/60HZ, same format as input

  • Support CEC

  • LED indication: when source or sink is working, LED relative to is light

  • Support output up to 20metres AWG26 cable length

  • No loss of quality

  • Installs in minutes

  • Need DC5V/1A power supply

Артикул: [HDCYUV0101]

FEATURES:



  • One YUV/YPbPr/YCbCr +R/L input signal convert to one HDMI sink devices
  • Support video input : Up to capture YPbPr1080p, 330Mbandwidth,50/60H
  • Support audio input : R/L analog
  • HDMI output : Support up to 1080p/60HZ, same format as input
  • Support CEC
  • LED indication: when source or sink is working, LED relative to is light
  • Support output up to 20metres AWG26 cable length
  • No loss of quality
  • Installs in minutes
  • Need DC5V/1A power supply



SPECIFICATIONS:



  • YUV/YpbPr/YcbCr Input: Support up to capture 1080p, 330M bandwidth, 50/60HZ
  • Audio Input: R/L Analog
  • HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i, same format as input
  • Max transmission bandwidth: 5.1Gbps
  • Input Video signal: 0.5~1.5Volts p-p
  • Output DDC signal: 5Volts p-p (TTL)
  • Output cable distance: ≤20m AWG26 HDMI standard cable
  • Max working current: 600mA
  • Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
  • Operating Temperature range: (-15 to +55℃)
  • Operating Humidity range: 5 to 90%RH (No Condensation)
  • Dimension (L x W x H): 90x70x33 (mm)
  • Weight: 155g



Notes:

  1. Use the machine as the instruction listed to keep the long use lifetime of the machine
  2. The machine should be placed at the spot far from the damp, high temperature, dusty, erosive, and oxidative environment
  3. All parts will be free from the strong shake, hit, fall
  4. Touching the power adaptor with the wet hands is prohibited
  5. Hold the power adaptor head and do not pull the power cord when cut off from the socket
  6. Turn the power off when the machine is not used for long time
  7. Do not open the cover and do not touch the inside parts
  8. Use the original factory power adaptor
