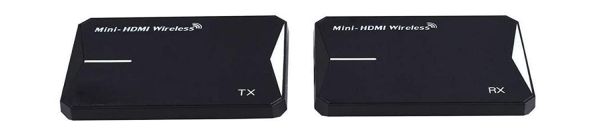

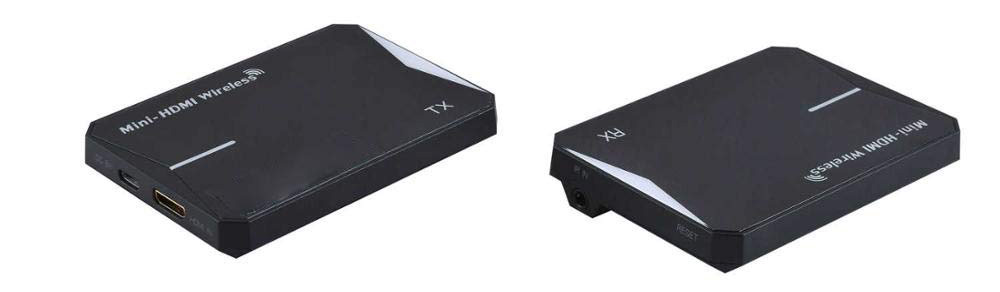

Wireless HDMI Extender with Transmitter & Receiver 1080P HD Video 5GHz 60m

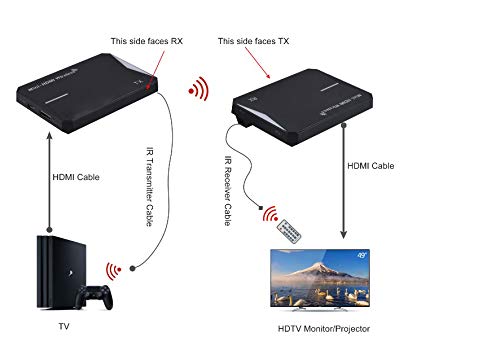

  1. Connect the HDMI input port of the HDMI wireless TX to the HDMI output port of the signal source by HDMI cable.
  2. Connect the HDMI output port of the HDMI wireless RX to the HDMI input port of the TV/Monitor by HDMI cable.
  3. Connect the IR Transmitter cable to the HDMI wireless TX and the IR Transmitter cable must face to the control target device.
  4. Connect IR Receiver cable to the HDMI wireless RX.
В наявності
SKU
HDEX0018M1
2 843,69 ₴
Wireless HDMI Extender with Transmitter & Receiver 1080P HD Video 5GHz 60m наявний для покупки з кроком збільшення в 1

We will send this product in 2 days. Read more...

Call us now for more info about our products.

Return purchased items and get all your money back.

Buy this product and earn 10 special loyalty points!


Wireless HDMI Extender with Transmitter & Receiver 1080P HD Video 5GHz 60m

  1. Connect the HDMI input port of the HDMI wireless TX to the HDMI output port of the signal source by HDMI cable.
  2. Connect the HDMI output port of the HDMI wireless RX to the HDMI input port of the TV/Monitor by HDMI cable.
  3. Connect the IR Transmitter cable to the HDMI wireless TX and the IR Transmitter cable must face to the control target device.
  4. Connect IR Receiver cable to the HDMI wireless RX.
  5. Connect 5V power supplies to the TX&RX, the POWER indicator will be lit at this moment.
  6. The device will automatically connect after power on. The STATUS indicator of TX and RX will be lit. When the connection is successful. If the HDMI input or output signal is normal, the HDMI indicator light will be lit also. The STATUS indicator flashes continuously during normal transmission.
  7. Note: the antenna is located on the side near the IR interface, Please point these two faces towards each other when placing them.

Web settings :
To prevent the interference caused by the same frequency device, the Wireless HDMI Extender support to set up the working Frequency, transmit channel and SSID by the WEB. For safety, the user should change the SSDI and the password at the first log in. Please follow the steps which on user manual.

Restore factory settings and switch wireless band:

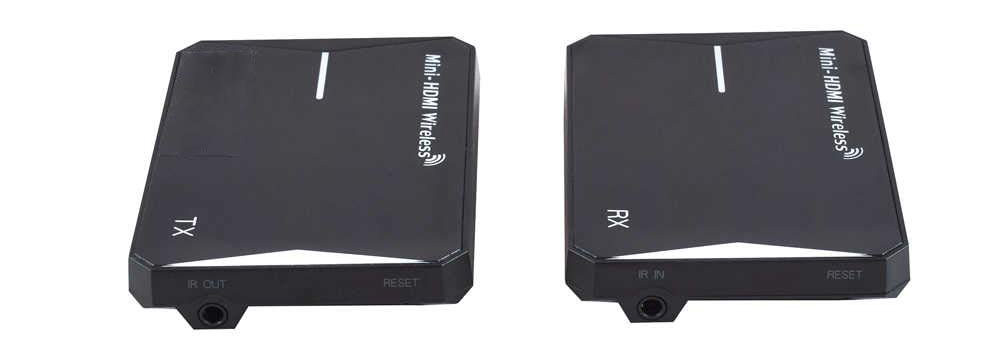

The reset key is hidden in the RESET hole. It is able to work under power on status. To use one long and narrow insulated stick (like toothpick) to insert the whole end to press the button as below:
1 Restore Factory Setting: To press the button for lasting three seconds, then the HDMI Status Led Light will flash for three times and restart, it shows that Restore Factory Set is successful.
Note: You must to restore factory set at both transmitter and receiver.
2 Switch Wireless Band: Press the button to cyclic switch the 2.4G/5G (only for TX).
