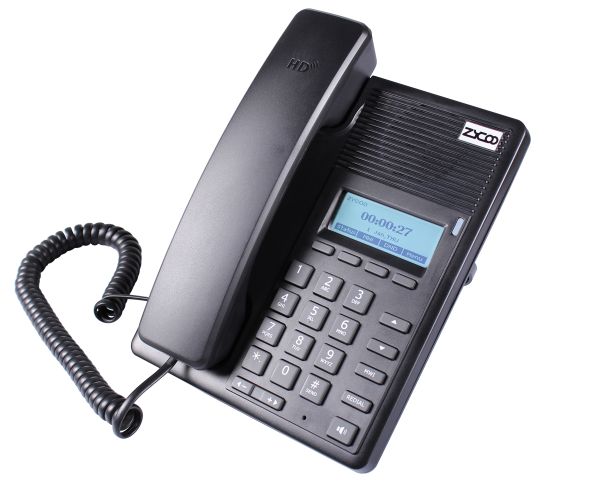

Telefon VoIP ZYCOO D30P, PoE, 2xSIP, Router, LCD, HD Voice

More Views

Залишіть відгук про цей товар першими

48,00 $

Наявність: Є в наявності

CooFone-D30 is entry level IP Phone which is designed for junior employees or middle managers specially for promoting productivity and efficiency in daily working environment. CooFone-D30 is provided with reasonable price at great quality and working performance with HD voice, friendly user-interface and auto provisioning. And PoE is supported by CooFone-D30 as default (Model D30P).
Артикул: [D30P]
28 Available


Phone Features

  • SIP authentication (none, basic, MD5)
  • Call forward/ Caller ID
  • Call transfer (blind/attended)
  • Call holding/waiting
  • 9 kinds of ring types and
  • 3 user-defined music ring
  • Multiple road call waiting in line
  • Softkeys programmable
  • Phonebook 500 records
  • SMS and Speed Dial
  • 3 way conferencing
  • Multilanguage realizes localization
  • Flexible dial map
  • Empty calling no. reject service
  • Black list /white list
  • No disturb
  • Peer to Peer
  • Incoming calls /outgoing calls /
  • missing calls(100 records for each).

Advanced Features

  • XML phonebook/browser
  • Code synchronization via IP PBX/IMS
  • Click to dial via web phone book
  • Support action URL/active URI
  • Voice codec setting for each SIP line
  • Hands-free headset ringing choice

IP Phone System Integration

  • Conference call park
  • Call pickup
  • Paging and intercom
  • Redial and unredial
  • Click to dial
  • Secondary dialing automatically
  • CLIR (reject the anonymous call)
  • CLIP (make a call with anonymous)
  • Dial without register

Codec & Voice:

  • Wideband codec: G.722.1
  • Narrowband codec: G.711a/u, G.723.1,high/low, G.729a/b, G.726
  • Voice Gain Setting, VAD, CNG
  • Echo cancellation: G.168
  • Hands-free can support 96ms
  • Full duplex hands-free speakerphone

Network Features

  • WAN/LAN: 10/100M Ethernet ports,supports Route and Bridge mode.
  • Support bridge working as hub(optional)
  • SIP 2.0 (RFC3261) and correlative RFCs
  • Support VLAN(voice vlan/data vlan)
  • DTMF Relay:support inband, SIP info,RFC2833
  • Support basic NAT and NAPT
  • NAT transverse: support STUN client
  • Support DHCP client on WAN
  • Support DHCP server on LAN
  • Support main DNS and secondary DNS server.
  • DNS name of server
  • SIP domain


  • Support DNS Relay, SNTP Client,Firewall
  • VPN (L2TP/OPENVPN), 802.1, DMZ
  • Network tools in telnet server:
  • including ping, trace route, telnet client

Maintenance and Management

  • Web, telnet and keypad management
  • Management with different account right
  • Upgrade firmware through POST mode and HTTP, FTP or TFTP
  • Support DHCP option66 auto provisioning
  • Auto Provisioning to upgrade firmware or configuration file with HTTPS
  • Telnet remote management/upload/download setting file
  • Safe mode provide reliability
  • Support TR-069(optional) and Syslog


  • WAN: 10/100Base-T RJ-45 for WAN
  • LAN: 10/100Base-T RJ-45 for PC
  • Power Adapter: Input:100-240V, Output:5V/1A
  • Power Consumption: Idle: 2.5W/Active: 2.8W
  • LCD Size: 128*48 pixels graphic LCD
  • Operation Temperature: 0-40
  • Relative Humidity: 10-65%
  • Main Chipset: Broadcom
  • SDRAM: 128Mbits
  • Flash: 32Mbits


  • Inner box: 250mm × 205mm × 60mm
  • G.W./unit: 0.87 KG
  • Carton MEAS: 430mm × 325mm × 275mm
  • Units per Carton: 10 units/ CTN
  • G.W./CTN: 9.62 KG/CTN


  • VoIP Phone D30P
  • Handset
  • Handset cord
  • Ethernet cable
  • Quick installation Guide EN
