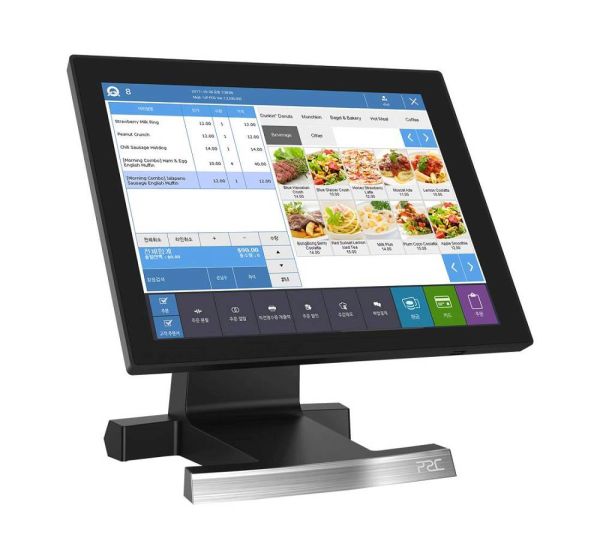

Slim & Sleek Stylish POS

SKU
J-200P
23 530,52 ₴
В наявності

Slim & Sleek Stylish Smart Desk dock System for Hospitality and Retail

  • Luxurious metallic stand by new style
  • Stable performance which is proved by strict test
  • All-in-one ventilation frame structure which has high heat-treatment ability (No noise, Low heat Fanless)
  • Faster and more accurate capacitive-flat typed multi(l0-point) touch screen
  • More convenient and easer installation structure by top 1/0 panel location
  • Diverse 1/0 ports to connect many types of devices
  • 6 x Serial (DB9x3, RJ50x2, RJ11x1), 1 x Parallel, 6x USB
  • Powerful functions of 8th generation's i3/i5/i7 processors or reasonable priced Intel® Celeron  Processor can be chosen
Slim & Sleek Stylish POS Terminal P2C J-200, 15", J1900, 4GB, 128GB SSD, PCAP наявний для покупки з кроком збільшення в 1

True All-in-One as Kiosk and POS in one terminal

→ Main/Dual Monitor transformed as Landscape and Portrait
→ All-in-one ventilation frame structure
→ Safe connection structure for a power. Industrial Lock Plug.
→ One touch connection for 2nd display(Easy Installation by Automatic connection structure during docking)
→ Wide space for I/O Port connection
→ Multi Display available (3pcs)
→ Adjustable Brightness up to 400cd/㎡

Why, P2C P2C 200 Series?


Design

Harmony of Solid & Sophisticated Design and Soft & Strong product lineSpace-saving & Slim style

Stability

Outstanding heat treatment ability through the whole aluminum ventilation frame Longer life-span, Low maintenance fee

Accessibility

Abundant I/O Ports Wide space for I/O Port connection Multi Display available (3pcs)

Easy Maintenance

Easy replacement of all main parts like M/B, LCD, Touch panel

Expandibility

7th Generation (Kaby Lake) Support i3/i5/i7 Product Line-up

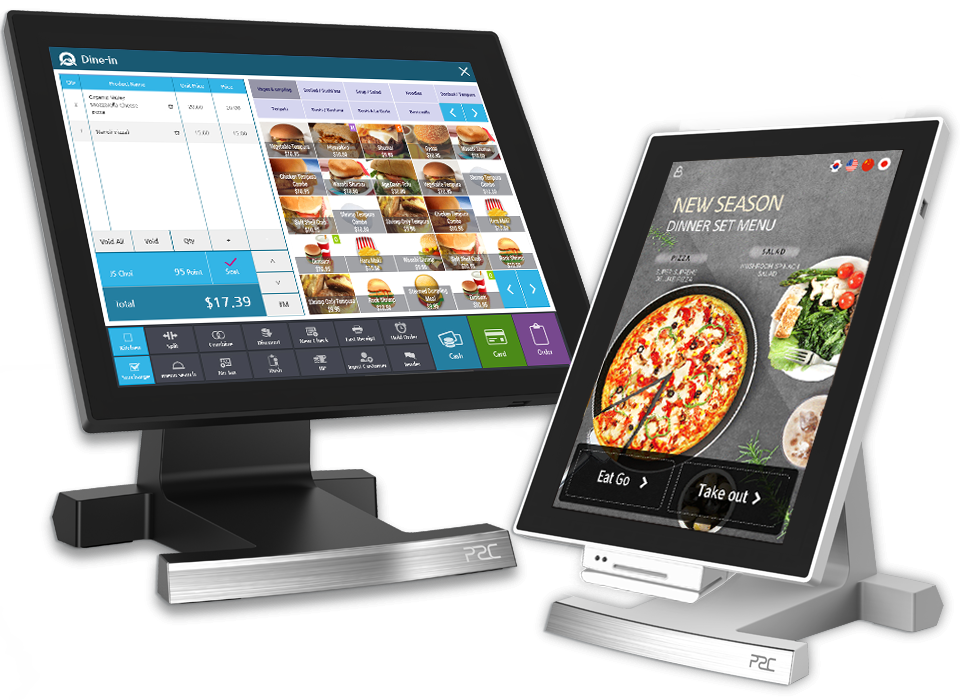

True All-in-One

Simple assemble way to transform POS (Landscape) to Kiosk (Portrait), and vice versa


Different CPU

7th Generation (Kaby Lake) Support i3/i5/i7 Product Line-up

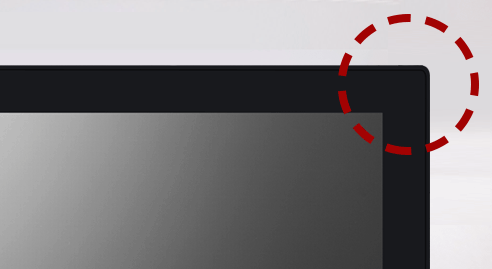

Front Flat Design

Wide I/O ports

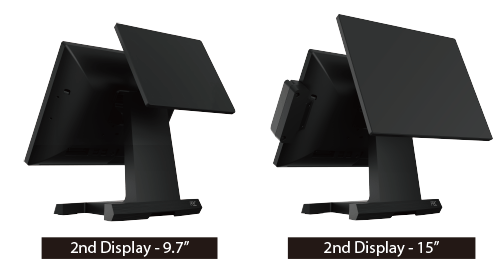

Dual monitor for easy installation and assembly

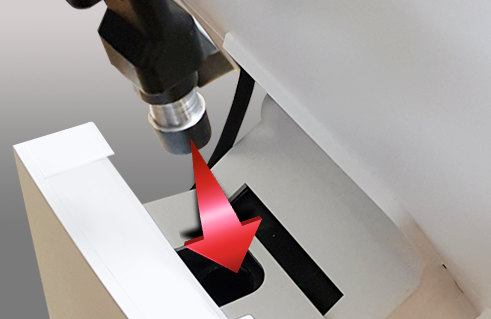

One touch connection for 2nd display


(Easy Installation by Automatic connection structure during docking)

Simple assemble way to transform POS (Landscape) to Kiosk (Portrait) and vice versa

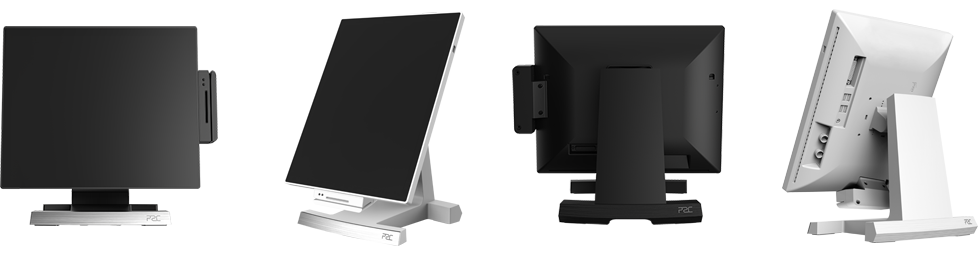

Transform POS (Landscape) to Kiosk (Portrait)
Adjustable bracket

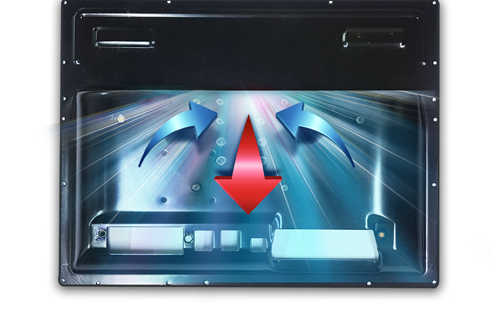

Superior ventaliation frame structure Excellent ability for heat conduction and ventilation

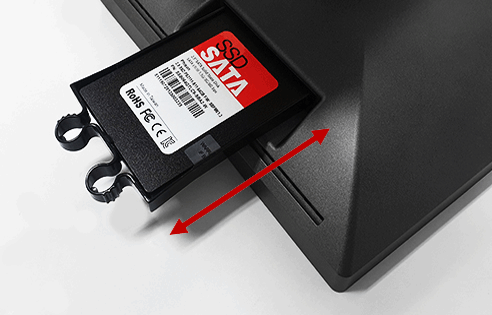

Easy SSD replacement with sliding structural design

Easy SSD replacement with sliding structural design

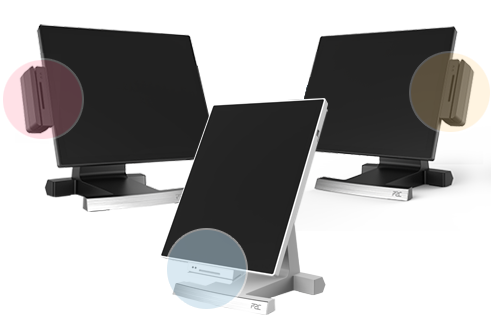

MSR position changeable Easy attachable MSR to 3 different position by a simple way

MSR position changeable Easy attachable MSR to 3 different position by a simple way

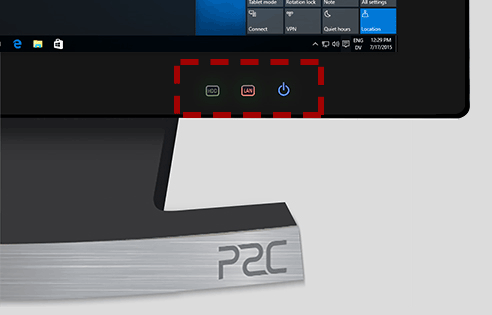

Operation status LED Operation status LED

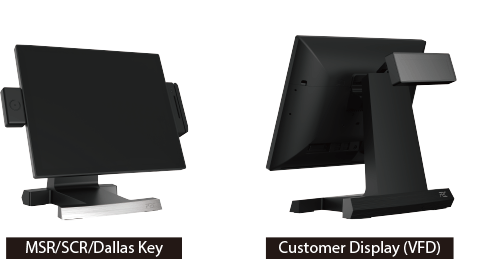

Peripheral Options

Peripheral Options1

Peripheral Options2

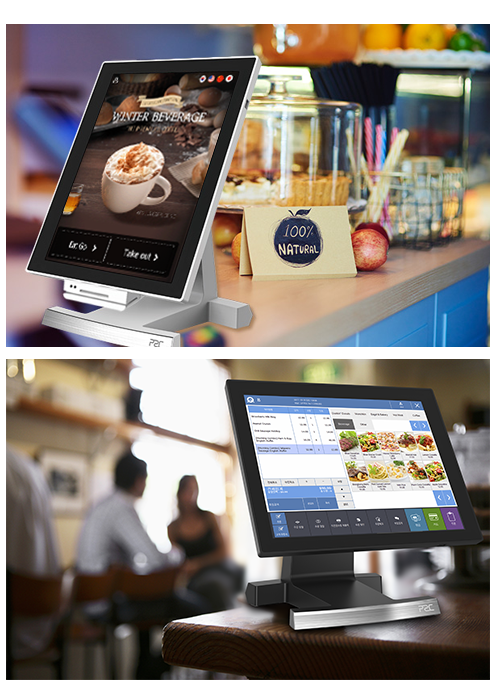

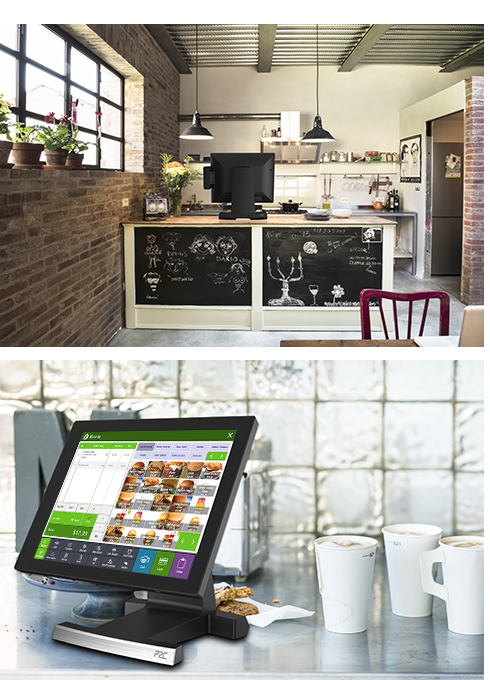

Kiosk store image1 Kiosk store image2

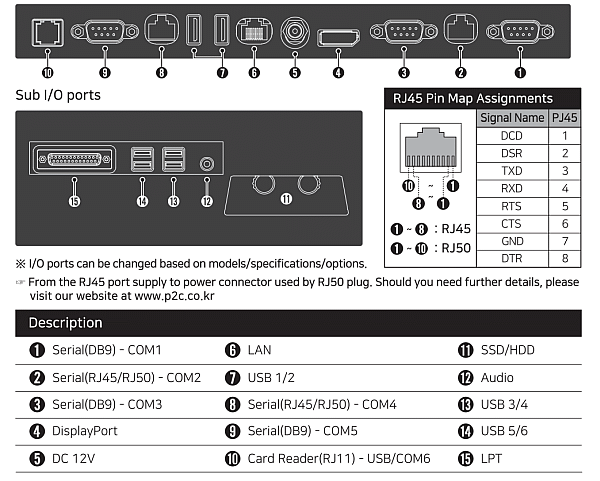

Wide range of I/O ports

Specifications

Model P2C S-200 P2C J-200
System Configurations
Processor 7th or 8th GenerationIntel®! Core'" i3, i5, i7 Processors Intel® Celeron*” Quad-core Processor J1900 2.0GHz
Chipset/BIOS Intel® Kaby Lake SoC / AMI Intel® Baytrail SoC / AMI
Storage 2.5" SATA III SSD 64GB (HDD 500GB &. SSD 128GB / 256G , optional)
Memory 4GB, DDR4 2133MHz x 2 slot (Max 8GB, optional) 2GB, DDR3 1333MHz x 1 (Max 8GB, optional)
Graphics Intel® HD Graphics 520 / Intel® HD Graphics 620 Intel® HD Graphics
Multi Display 3 (# of Displays Supported) 2 (# of Displays Supported)
Expansion Slot 1 x mini PCI-e
OS Windows 10 IoT Value/High End, POSReady 7 POS Ready 7, Windows 10 IoT Entry
Display
Main Display Type 15" WLED Backlight (Brightness : 350 cd/nT, Resolution : 1024 x 768)
Touch Projected Capacitive Touch(PCAP): 10 Point Multi Touch
I/O Interfaces
Rear Top &. Bottom Ports
USB 6 (2 x USB 3.0 Rear Top, 4 x USB 3.0 Rear Bottom) 6 x USB 2.0 (Rear Top x 2, Rear Bottom x 4)
Serial 6 (DB9 x 3, RJ50(RJ45) x 2, RJ11 x 1)
COM1, 3, 5(DB9): +5V on Pin #9, Selectable by BIOS
COM2, 4 (RJ50, RJ45): Support +5V and 12V for Special Devices and can be used for Kitchen Printer
COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader
LPT(Parallel) 1(LPT / DB25 on Rear Bottom)
Audio 1 x Audio-out / 3.5mm (changeable for MIC)
Secondary Display 1 x DisplayPort (Included 1 x USB 2.0 / Power Delivery +12V) x Can be used for HDMI and DVI, VGA Monitor by Converter Cable.
LAN 1 x RJ45 (Base-T 10/100/1000 Ethernet)
Peripheral Options
2nd Display | DisplayPort Display Type: 9.7" or 15" LCD(1024 x 768 Resolution)
Touch Display Type: 9.7" or 15" LCD with Capacitive Touch and support 1 x USB 2.0 Port
* P2C Display Functions: Supported Multi Display Function by DP MST Hub/Supported Standard HDMI, DVI, DP by each Cable
Customer Display (CDP) VFD Type (Alphabet & Numeric, 20 characters x 2 lines)
Card Reader (MSR/SCR) Smart Card Reader: ISO/IEC7816 EMV Level 1
Magnetic Stripe Reader: ISO7811 ID-1 All tracks
* Interface: USB(HID) and RS232C(COM6)
Dallas Reader Dallas Reader(i-button): 6 characters / prefix and suffix
* Interface: USB(HID) and RS232C(COM6)
Physical Dimension
Dimension (W x D x H) 362 x 237 x 336 mm
Weight 5 Kg
Environment
Power Supply DC 12V/5A (AC 100V~240V, 60W)
Temperature Operating: 0~50'C at 10% to 90% Humidity
Certifications CE, CB, FCC, KC
* All specifications are subject to change without notice.
ВиробникVenBOX
CPUIntel Celeron J1900 4x2GHz Cores 10W
ЧіпсетIntel® Baytrail SoC / AMI
Graphics CardIntel® HD Graphics
Пам'ять4GB
HDDSSD SATA 2.5"
ROM Storage128Gb
Тип підключенняКабелем
BluetoothНе має
Інтерфейси підключенняUSB
I/O
Rear Top &. Bottom Ports
USB 6 (2 x USB 3.0 Rear Top, 4 x USB 3.0 Rear Bottom) 6 x USB 2.0 (Rear Top x 2, Rear Bottom x 4)
Serial 6 (DB9 x 3, RJ50(RJ45) x 2, RJ11 x 1)
COM1, 3, 5(DB9): +5V on Pin #9, Selectable by BIOS
COM2, 4 (RJ50, RJ45): Support +5V and 12V for Special Devices and can be used for Kitchen Printer
COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader
LPT(Parallel) 1(LPT / DB25 on Rear Bottom)
Audio 1 x Audio-out / 3.5mm (changeable for MIC)
Secondary Display 1 x DisplayPort (Included 1 x USB 2.0 / Power Delivery +12V) x Can be used for HDMI and DVI, VGA Monitor by Converter Cable.
LAN 1 x RJ45 (Base-T 10/100/1000 Ethernet)
Тип батареїNo
ОСPOSReady 7, Windows 10 IoT Entry
Підтримувані мовиMultilanguage
Додатки
  • Retail
  • Hospitality
  • Kiosk
Комплектація
2nd Display | DisplayPort Display Type: 9.7" or 15" LCD(1024 x 768 Resolution)
Touch Display Type: 9.7" or 15" LCD with Capacitive Touch and support 1 x USB 2.0 Port
* P2C Display Functions: Supported Multi Display Function by DP MST Hub/Supported Standard HDMI, DVI, DP by each Cable
Customer Display (CDP) VFD Type (Alphabet & Numeric, 20 characters x 2 lines)
Card Reader (MSR / SCR ) Smart Card Reader: ISO/IEC7816 EMV Level 1
Magnetic Stripe Reader: ISO 7811 ID-1 All tracks
* Interface: USB(HID) and RS232C(COM6)
Dallas Reader Dallas Reader(i-button): 6 characters / prefix and suffix
* Interface: USB(HID) and RS232C(COM6)
МатеріалПластик
КолірЧорний
Розміри362 x 237 x 336 mm
Вага5.000000
Only registered users can write reviews. Please Sign in or create an account
Icon Етикетка Опис Тип Розмір Завантажити
pdf P2C 200 Series Leaflet (EN) pdf 328.1 KB Завантажити
pdf P2C J200/S200 Datasheet (EN) pdf 1 MB Завантажити
pdf P2C S200P/J200P Installation Guide (EN) pdf 7.5 MB Завантажити
