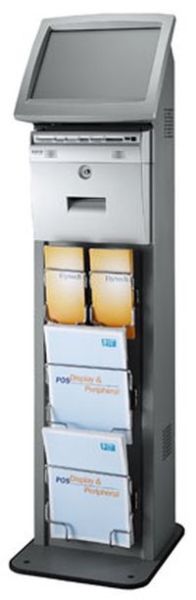

Киоск Flytech К892

Технические характеристики:



Model Name

K892

Mainboard

B81

CPU Supports

Intel® P4 Celeron® 2.5G

Core Logic

Intel® 852GM and ICH4

System Memory

2 x DDR DIMM sockets supported with memory size up to 2 GB

Graphic Memory

UMA Share Memory 8MB-64MB

Mini PCI Socket

1 x Mini PCI socket supported

LCD Touch Panel

LCD Size

15" TFT LCD

Brightness

350 cd/m?

Resolution

1024x768

Touch Screen

Resistive / Saw (by request)

Tilt Adjustment

0° ~ 60° (Desk-Top only)

Storage Devices

Hard Drive

1 x 3.5" HDD Drive Bay

Expansion

Mini-PCI Socket

1

Internal I/O Ports

Audio

Internal Speaker

2 x 3W

PS/2 Keyboard

1

PS/2 Mouse

1

USB Port

4 x USB 2.0

Serial Port

4 (Pin 1 / 9 with 5V / 12V)

Parallel

1

Serial Port

4 x powered COM ports (pin 1 / pin 9 support + 5V / +12V by Jumper)

LAN Port

1 x RJ-45 (10/100Mbps Giga LAN)

VGA

1 x LCD Monitor interface (LVDS / Inverter / USB)

Second Display

1 x male type connector with power

Cash Drawer Port

2 x RJ-11 Cash Drawer with 12V / 24V

Control / Indicator

Power Button

1

Power

Internal 250W ATX switching mode power supply

Environment

EMC & Safety

FCC Class A, CE, LVD

Operating Temperature

5°C ~ +35°C (41°F ~ +95°F)

Storage Temperature

-10°C ~ 60°C (14°F ~ 140°F)

Operating Humidity

10% ~ 90% RH non-condensing

Storage Humidity

10% ~ 90% RH non-condensing

Peripherial

Output Device

Thermal Printer

80 mm Thermal Printer

Communication

Wireless LAN

USB Dongle

Bluetooth

USB Dongle

IRDA

1

Other

Media Card Reader

Planar Flash Media Card Reader (with IrDA)

Chassis Lock Key

1

UPS

1

POP Shelf

1

Dimension (W x D x H)

370 x 193 x 1370 mm / 14.6'' x 7.6'' x 53.9"

Weight

48.6kg (107.14 lbs)

OS Supported

Windows® 9X, 2000, XP
