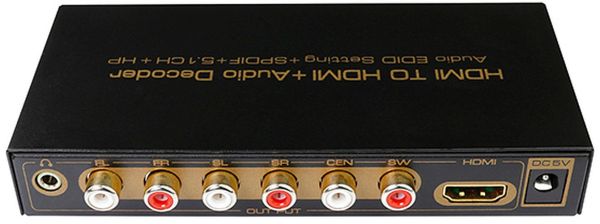

HDMI to HDMI + Audio AC3 DTS to 5.1 Decoder

More Views

Залишіть відгук про цей товар першими

60,00 $

Наявність: Є в наявності

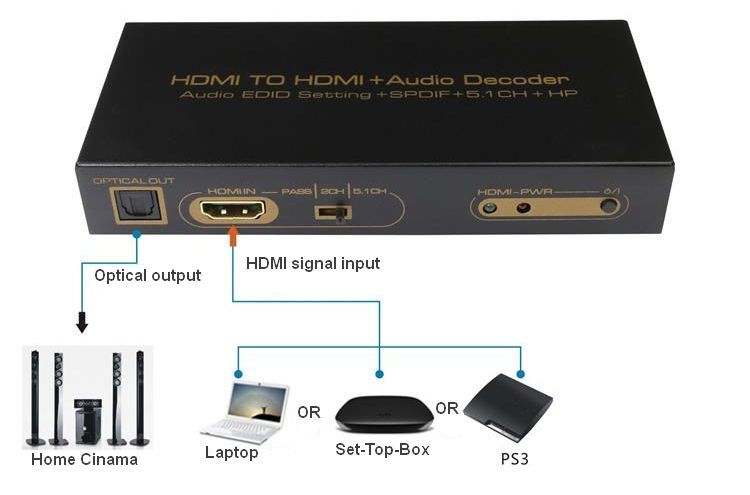

The HDMI TO HDMI Audio Decoder allows you to extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or analog 5.1 sound track output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format decoding. It is one perfect audio decoder for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.



  • 1X HDMI input and 1X HDMI output,can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 6 channel RCA analog audio output, and 1x headphone jack output.

  • Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)

  • Support CEC and HDCP

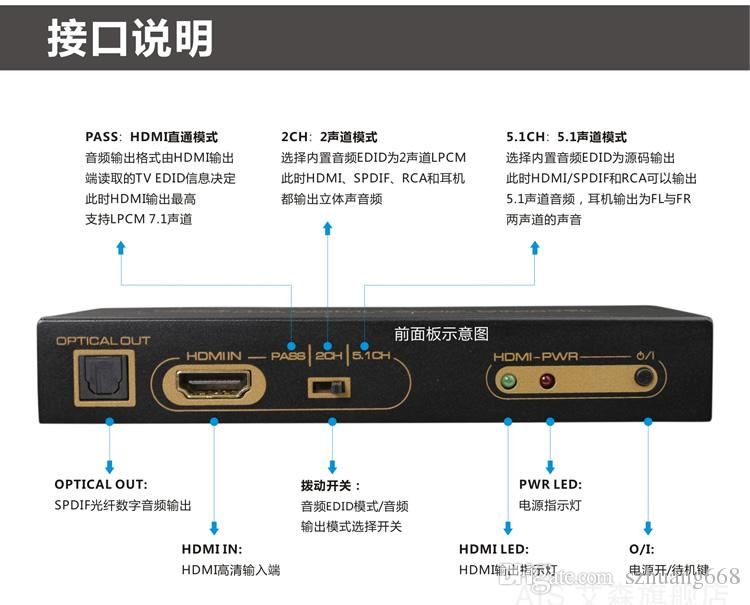

  • Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).

  • Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC

  • Support digital audio formats: Dolby digital (AC3), DTS, LPCM, automatic identification signal format

  • Headphone amplifier output, can drive the general 3.5mm earphone

  • High tone quality, low noise

  • DC5V/1A power adapter

Артикул: [HDCN0016M1]
5 Продано / 9 Available

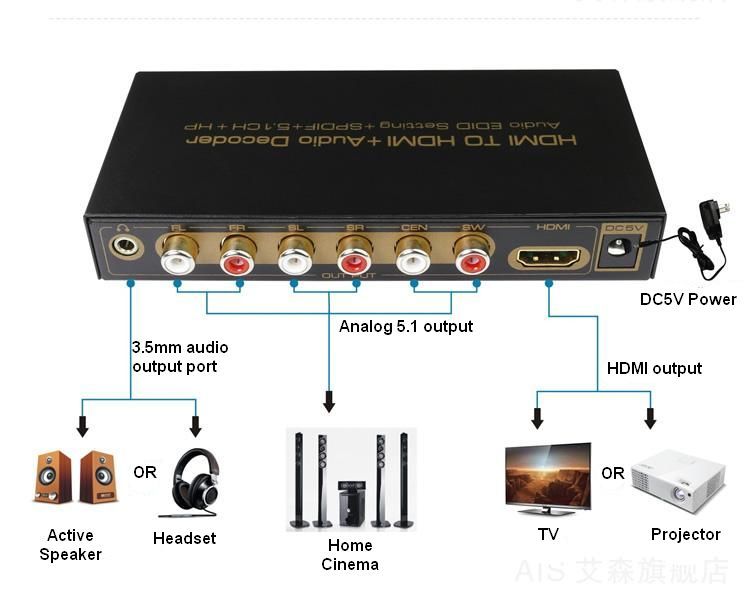

The HDMI TO HDMI audio decoders can help you to separate HDMI signal to synchronized HDMI signal and digital audio SPDIF optical output, after internal audio DSP decoding and high-quality DAC converter output 5.1 channel analog audio to your amplifier. Support Dolby Digital AC-3, DTS, LPCM and other digital audio formats decoding. With DVD player, Blu-ray player, Network player, HDMI high-definition output terminal set-top box, PS2, PS3, Xbox360, PC and other entertainment devices.

Main Functions

  • 1 x HDMI input and 1 x HDMI output, can sync separation HDMI audio signal.

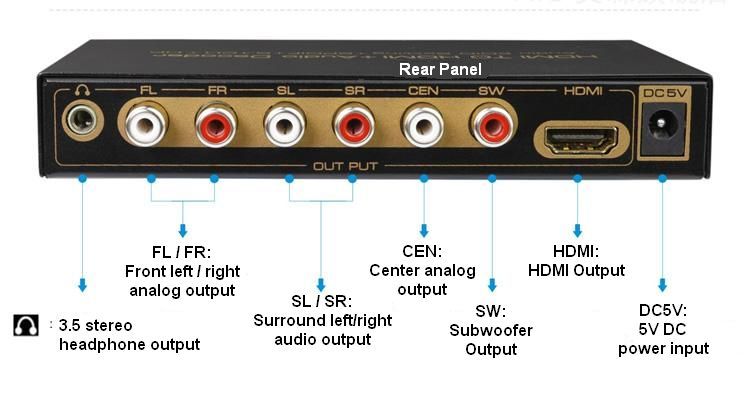

  • Supports 1x SPDIF optical digital audio output, 6 channel RCA analog audio output and 1x headphone jack output.
  • Support HDMI input up to 1080P/60Hz, support 3D (24/30fs)
  • Support CEC and HDCP Support 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
  • Uses 24 bit/96KHz audio DSP and 24bit /192KHz DAC
  • Support digital audio formats : Dolby digital (AC3), DTS, LPCM, automatic identification signal format Headphone amplifier output, can drive the general 3.5mm earphone High tone quality, low noise DC5V/1A power adapter

Specifications

HDMI resolution up to 1080P/50/60fs (3D 24/30fs)
Video color format Support 24bit/deep color 30bit, 36bit
HDMI Audio Format DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
Digital audio decode format Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Maximum bandwidth 225MHz
HDMI Maximum baud rate 6.75Gbps
Input/Output TMDS signal 0.5~1.5Volts p-p (TTL)
Input/Output DDC signal 5Volts p-p (TTL)
DSP sample frequency range 32~96 KHz
DSP Bit rate range 16~24 Bit
Analog output level (1kHz@0dB) 1V RMS
SNR @ 0dB (CCIR/ARM) >=85dB
Distortion <=0.1%
Frequency response 20Hz~20KHz
Headphone output power (1kHz@0dB RL=32) 20mW
HDMI input cable distance <=15m AWG26 HDMI standard cable
HDMI output cable distance <=18m AWG26 HDMI standard cable
Maximum working current 500mA
Power adapter format Input AC 100V~240V 50HZ/60Hz, DC5V/1A
Operating Temperature range -10 to +55oC
Storage Temperature range -20 to +60oC
Operating Humidity range 10 to 90%RH (No Condensation)
Storage Humidity range 5 to 95%RH (No Condensation)
Dimensions 139 x 64 x 22mm
Weight 220g
