Fanless Industrial PC Ven

SKU
G7
25 817,08 ₴
В наявності
  • Fanless system without cooling fan, no noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably.
  • 6*Intel i201/i211 Gigabit RJ45 LANs and 2*RS232 COM ports, support Windows, Linux and pfSense OS.
  • 1*mSATA SSD+1*2.5'' SSD/HDD installation supported.
  • One embedded SIM card slot onboard, 3G/4G/WiFi optional.
  • Applied in Firewall, Network Server, Network Security, VPN Router etc.
  • Full Aluminum Alloy Black colour shell, Exquisite production craft on outside design with high quality, slim design 209*150*57MM.
  • Low consumption saves much energy and is eco-friendly.
  • Support Watchdog, AWAL, RTC, WOL, PXE and Reset functions.

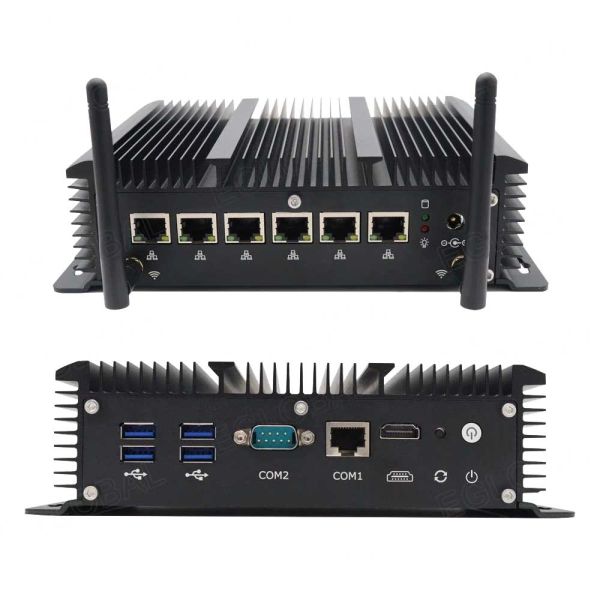

Fanless Industrial PC VenBOX G7 Intel Core CPU, 6*RJ45 i211AT Gigabit LAN, 4*USB3.0, 2*RS232, HDMI, 4G/3G WiFi, Firewall, Router, pfSense Computer наявний для покупки з кроком збільшення в 1

Main advantages:

  • Small size: Smaller than A4 paper, some of them only 4.5-inch size 234*150*45MM, just like the HDD sized using it traditional fat computers.
  • Durability: Highly integrated, fanless design makes it runs silent and not need extra maintenance like normal fat computers; the rugged cabinet can take extreme pressure and temperatures;
  • Low power: Using 12V power supply, most of them power consume 15W only, compare to 150W traditional pc's consumption, it helps save more than 80% energy;
  • Universal performance: Compatible with almost all popular operating systems, such as Windows and Linux, fullfil all kinds of requirements for different environments.

Applications

Independent Personal Computer With high-end hardware, can be used as an independent computer; also can be used as a parlour pc connecting the TV Set to watch video, surf the internet. Independent Personal Computer
With high-end hardware, can be used as an independent computer; also can be used as a parlour pc connecting the TV Set to watch video, surf the internet.
Economical Computer
Used for touch screen devices, e.g. Touch Kiosks, Advertising Player, POS, IPTV. Tiny size can fix in the cabinet; Fanless system design, no noisy and no dust.
Economical Computer Used for touch screen devices, e.g. Touch Kiosks, Advertising Player, POS, IPTV. Tiny size can fix in the cabinet; Fanless system design, no noisy and no dust.
Hotel Smart Computer With high-end hardware, can be used as smart computer in Hotel, it can save space by stand holder or VESA Mount, also used In KTV, Bank Office, Retail Stores or shops. Hotel Smart Computer
With high-end hardware, can be used as smart computer in Hotel, it can save space by stand holder or VESA Mount, also used In KTV, Bank Office, Retail Stores or shops.
Business Office Computer
Cloud terminal used in business is extremely different from computer in surfing the net or display, like chatting online, enjoy media player.
Business Office Computer Cloud terminal used in business is extremely different from computer in surfing the net or display, like chatting online, enjoy media player.
Education Computer Used in Multimedia Teaching System, can install teaching software for education; Also Portable Computer for kids, Low consumption and Less radiation. Education Computer
Used in Multimedia Teaching System, can install teaching software for education; Also Portable Computer for kids, Low consumption and Less radiation.
Industrial Computer
Industrial standard design, High stability and reliability; with RS232 serial port for more industrial needs; solid state design, fanless design.
Industrial Computer Industrial standard design, High stability and reliability; with RS232 serial port for more industrial needs; solid state design, fanless design.

Product specification

General specification:

  • CPU: Onboard Intel Celeron J1900, Intel 4th/5th/6th/7th/8th Gen Core i3/i5/i7 CPU as option according to reference table below. Installed Intel Core i5 7360U processor.
  • TDP: 15W
  • Motherboard: 150 x 150mm customized size
  • BOIS: American Megatrends Inc.5.12
  • Chipset: LIntel Sunrise Point-LP, Intel Kaby Lake-U
  • Memory: 1 x SO-DIMM DDR3L Slot
  • Support 2GB/4GB/8GB/16GB, DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333
  • OS: Windows® 7/8/10, WES 7/10, LINUX
  • PXE: YES
  • Audio: Intel Kaby Lake HDMI @ Intel Sunrise Point-LP PCH - High Definition Audio Controller
  • Network: Intel(R) i210/i211 Gigabit Network Connection, 10/100Mbps/1000Mbps BaseT LAN
  • Video: Intel® Iris Plus Graphics 650

Input/output port:

  • Switch: 1 x Power On/Off Switch
  • Power: 1 x 12V DC In
  • LED: 1 x Power LED, 1 x HDD LED
  • USB: 4 x USB3.0
  • Display: 1 x HDMI
  • LAN: 6 x RJ45 Giga LAN
  • COM: 1 x DB9 RS232 COM, 1 x RJ45 RS232 COM
  • SIM: 1 x embedded SIM card slot onboard
  • Audio: 1 x MIC, 1 x SPK
  • Others: 1 x Reset button

Storage:

  • MSATA: 1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
  • SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

Wi-Fi:

  • Module: 1 x mini PCIe-full/mini PCIe-half port for 3G/4G/Wi-Fi module(USB WIFI protocol)
  • Antenna: 2 x inner RF cables and 2 x external antennas

Power and Working Environment:

  • Input: DC100-240V AC/50-60Hz
  • Output: DC +12V~+19V, recommend 12V/5A
  • Operating Temperature: -20/+60 Centigrade
  • Storage Temperature: -30/+70 Centigrade
  • Relative Humidity: 10%~90%@30 Centigrade(non-condensing)

Product Dimension & Details:

  • Size: 209*150*57mm
  • Weight: Net 1.35kg, Gross 2.5kg
  • Shell: Black/Silver colour aluminum alloy(any customized colour for bulk order)
  • Mounting: 4 mounting holes on the case
  • Cooling Mode: Fanless
  • Functions: Watchdog, AWAL, RTC, WOL

Package Content:

  • Standard: 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
  • Optional: Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag

Processor parameter for reference:

  1. 4th Gen Haswell 22nm Intel Celeron 2957U" 2 cores 2 threads 1.4GHz 2MB cache TDP 15W Intel® HD Graphics (DO NOT SUPPORT AES-NI),
  2. 7th Gen Kaby Lake 14nm Intel Celeron 3865U 2 cores 2 threads 1.8GHz 2MB cache TDP 15W Intel® HD Graphics 610 (SUPPORT AES-NI),
  3. 7th Gen Kaby Lake 14nm Intel Core i3 7167U 2 cores 4 threads 2.8GHz 3MB cache TDP 28W Intel® Iris® Plus Graphics 650 (SUPPORT AES-NI),
  4. 7th Gen Kaby Lake 14nm Intel Core i5 7267U 2 cores 4 threads 3.1GHz up to 3.5GHz 4MB cache TDP 28W Intel® Iris® Graphics 650 (SUPPORT AES-NI).
  5. 5th Gen Kaby Lake 14nm Intel Core i5 7360U 2 cores 4 threads 2.3GHz up to 3.6GHz 4MB cache TDP 15W Intel® Iris® Plus 640































ВиробникEglobal
CPUIntel Core i5-7200U
ЧіпсетKaby Lake (Gen9.5)
Graphics CardIris Plus Graphics 650
Оперативна пам'ять8GB
HDDHDD 2.5", SSD SATA 2.5", SSD mSATA
Об'єм диска128Gb
Тип підключенняБезпровідний + провідний
BluetoothЄ
WiFi802.11ac/abgn
Типи роз’ємів клавіатуриBluetooth, USB, USB HID
I/O
  • Switch: 1 x Power On/Off Switch
  • Power: 1 x 12V DC In
  • LED: 1 x Power LED, 1 x HDD LED
  • USB: 4 x USB3.0
  • Display: 1 x HDMI
  • LAN: 6 x RJ45 Giga LAN
  • COM: 1 x DB9 RS232 COM, 1 x RJ45 RS232 COM
  • SIM: 1 x embedded SIM card slot onboard
  • Audio: 1 x MIC, 1 x SPK
  • Others: 1 x Reset button
Тип батареїNo
ОСPOSReady 7, Windows 10/11/IoT
Підтримувані мовиMultilanguage
Додатки
  • Independent Personal Computer
    With high-end hardware, can be used as an independent computer; also can be used as a parlour pc connecting the TV Set to watch video, surf the internet.
  • Economical Computer
    Used for touch screen devices, e.g. Touch Kiosks, Advertising Player, POS, IPTV. Tiny size can fix in the cabinet; Fanless system design, no noisy and no dust.
  • Hotel Smart Computer
    With high-end hardware, can be used as smart computer in Hotel, it can save space by stand holder or VESA Mount, also used in KTV, Bank Office, Retail Stores or shops.
  • Business Office Computer
    Cloud terminal used in business is extremely different from computer in surfing the net or displaying, like chatting online and enjoy media player.
  • Education Computer
    Used in Multimedia Teaching Systems, can install teaching software for education; Also Portable Computer for kids, Low consumption and Less radiation.
  • Industrial Computer
    Industrial standard design, High stability and reliability; with RS232 serial port for more industrial needs; solid state design, fanless design.
Адаптер / блок живленняDC 12V/5A
Комплектація
  • Standard:
    • 1xMini PC,
    • 1xPower Adapter,
    • 1xPower Cord,
    • 1xScrews Bag
    • Wi-Fi antennas,
    • 1xHDMI cable,
    • 1xUser eManual,
  • Optional:
    • 1xPaper User Manual,
    • 1xLong Screws Bag,
    • 1xDrivers CD
КолірЧорний
МатеріалМетал
Розміри209*150*57mm
Вага1.350000
