Fanless Industrial Mini P

SKU
G10-8550U-8-256
30 115,05 ₴
В наявності
Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing:

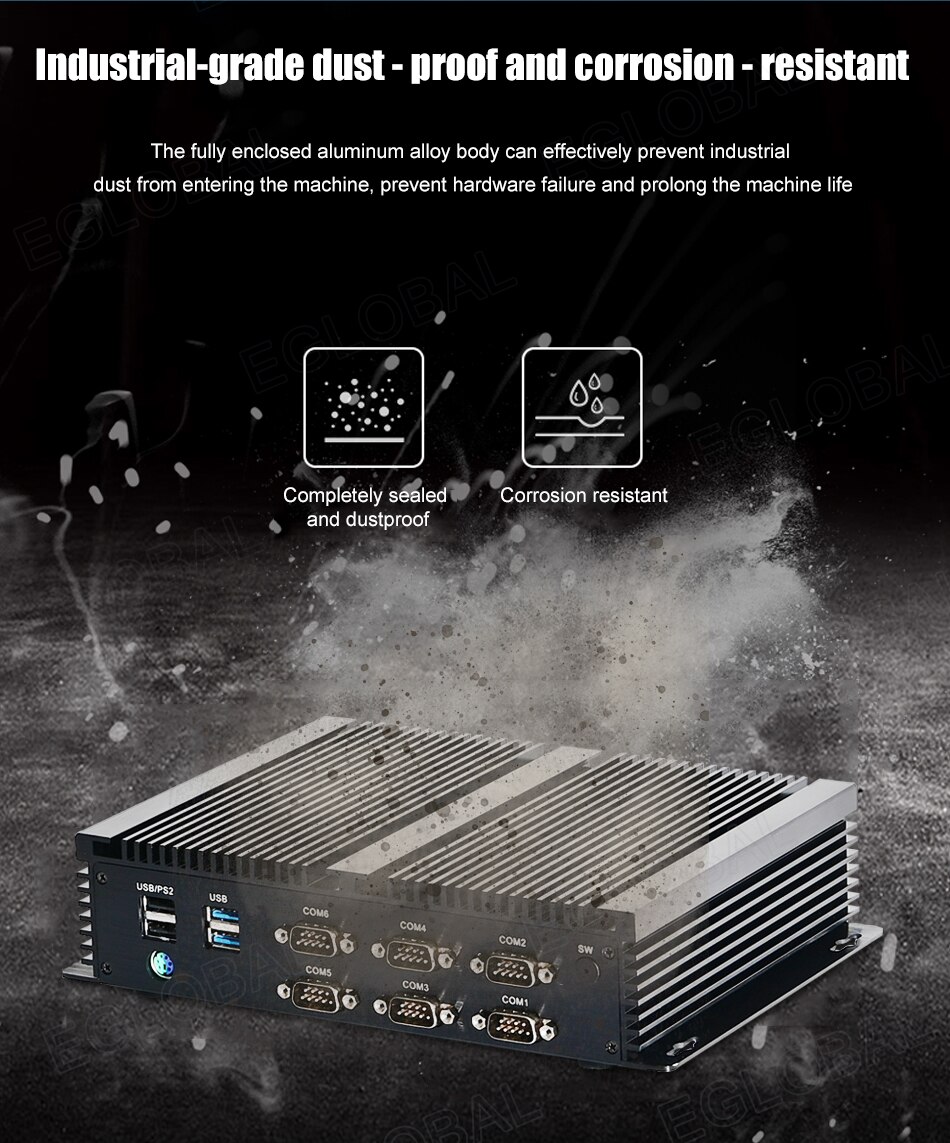

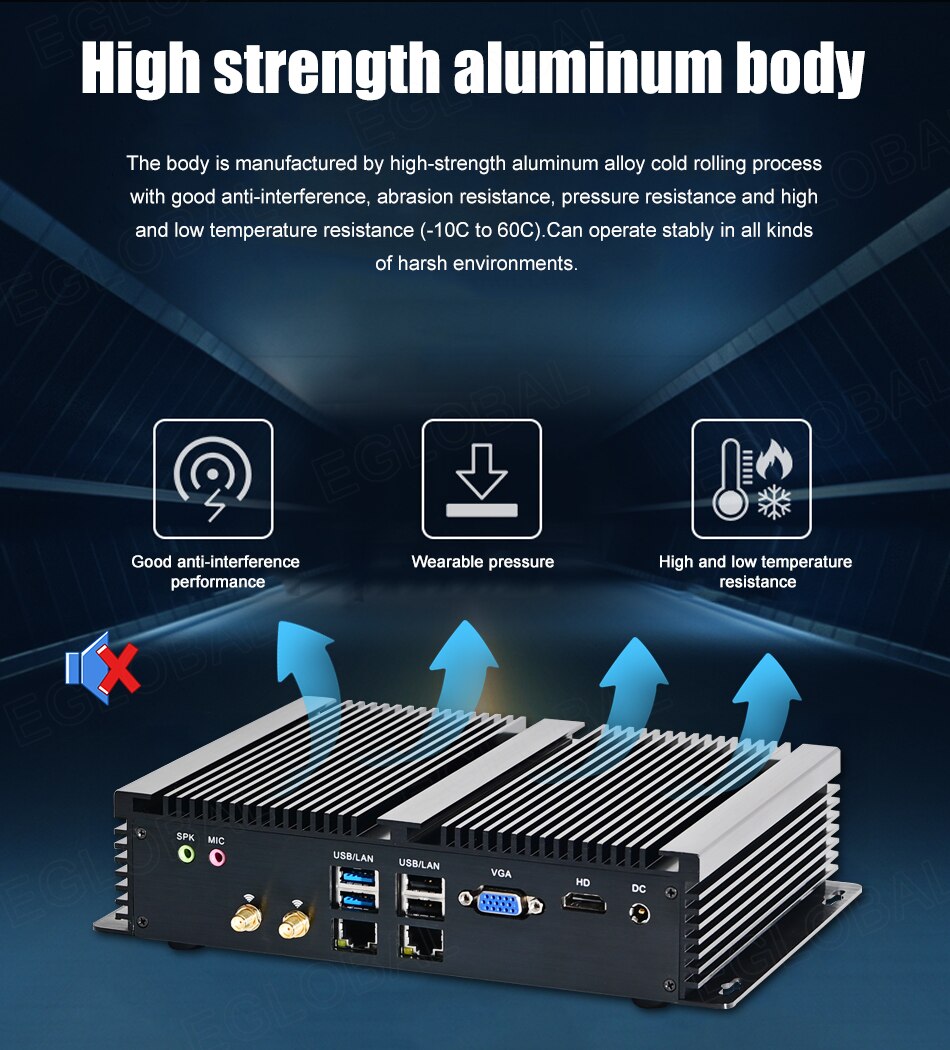

  • Fanless system without cooling fan, Brushed Full Aluminum Alloy shell for heat

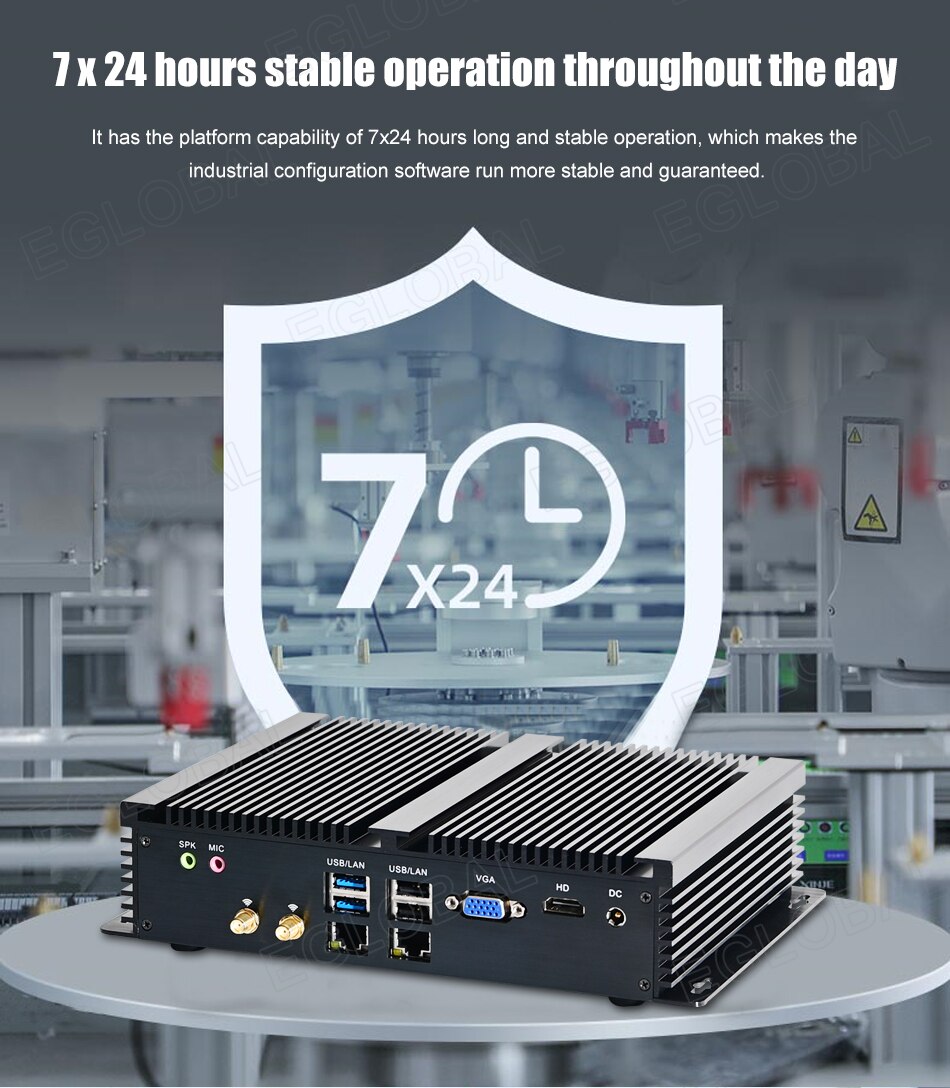

  • Dissipation, fit for industrial grade field, work as long as 24 hours.

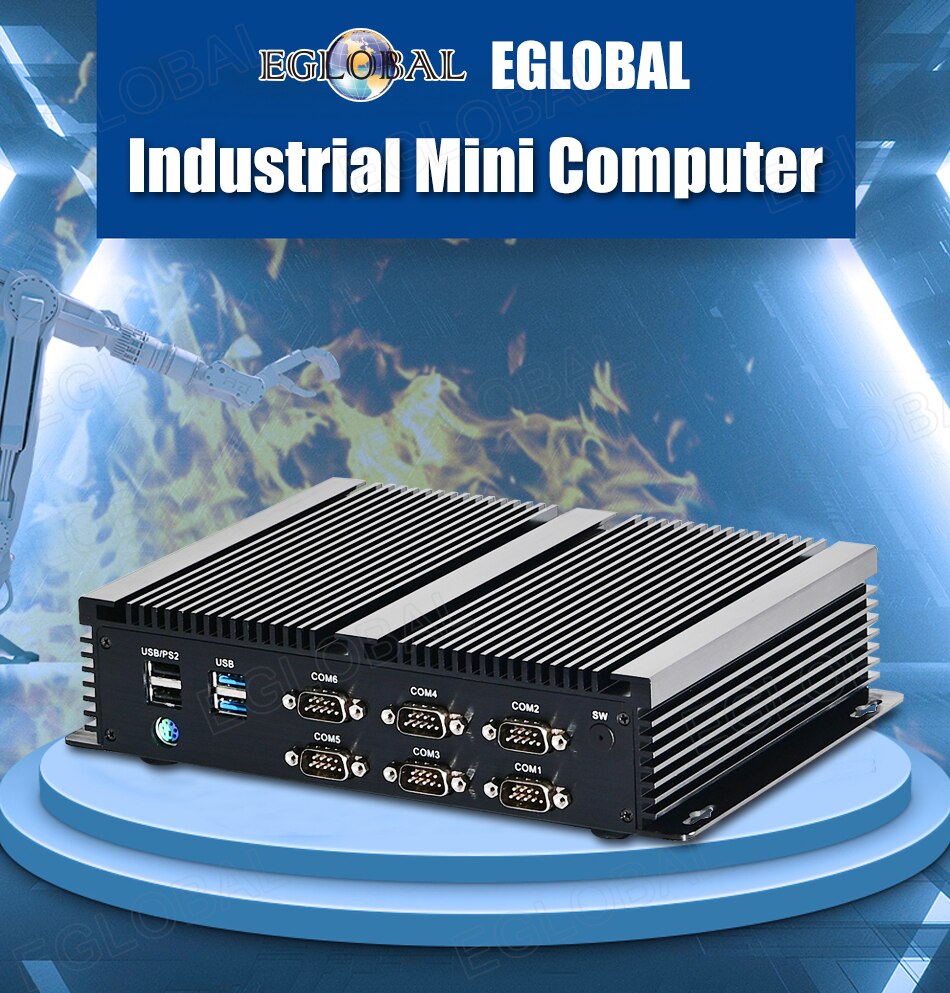

  • 2 Intel Gigabit LAN and 6 COM(COM1 COM2 can change to RS232/422/485 from BIOS).

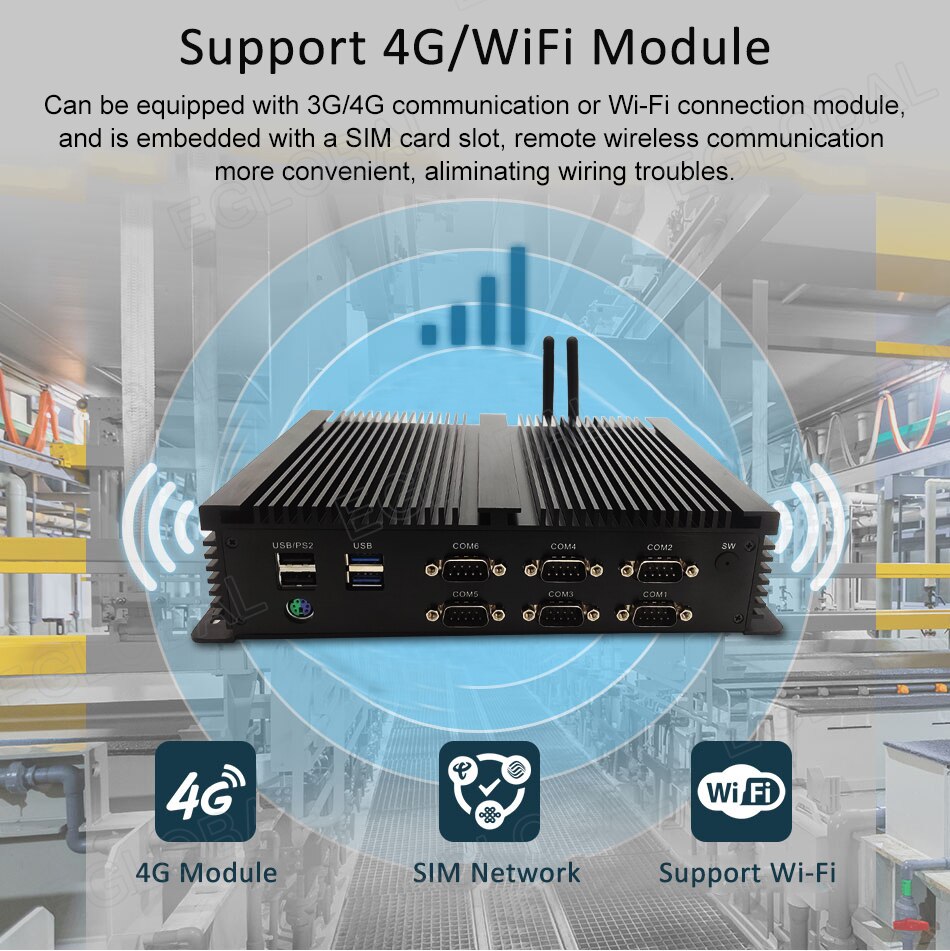

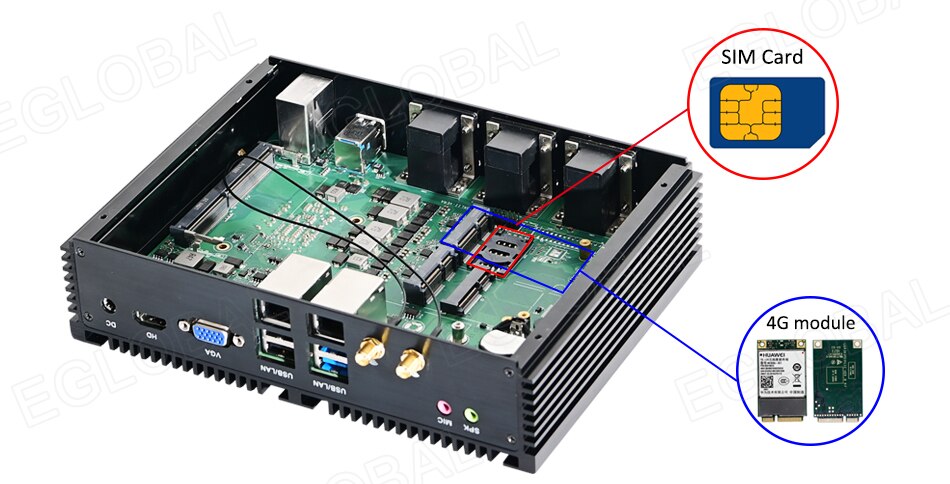

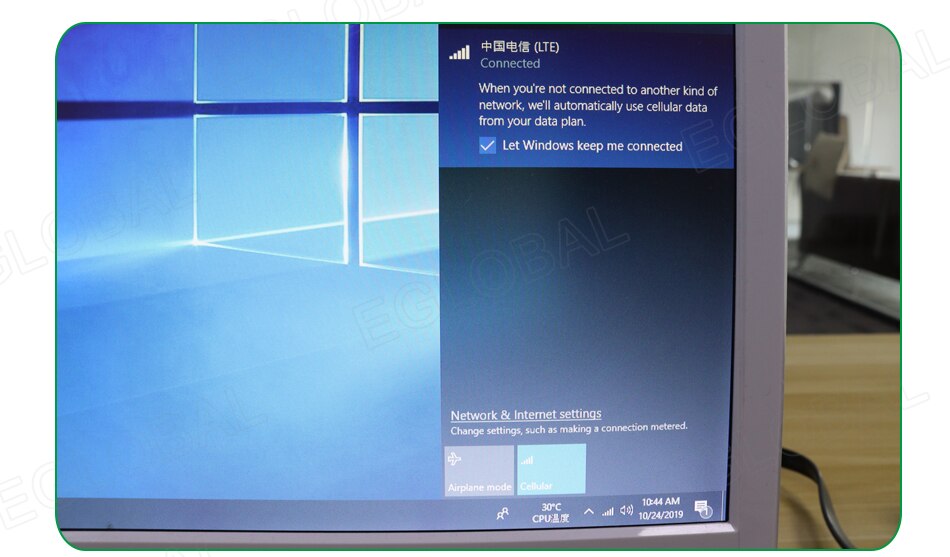

  • One embedded SIM card slot onboard for 3G/4G Wi-Fi module.

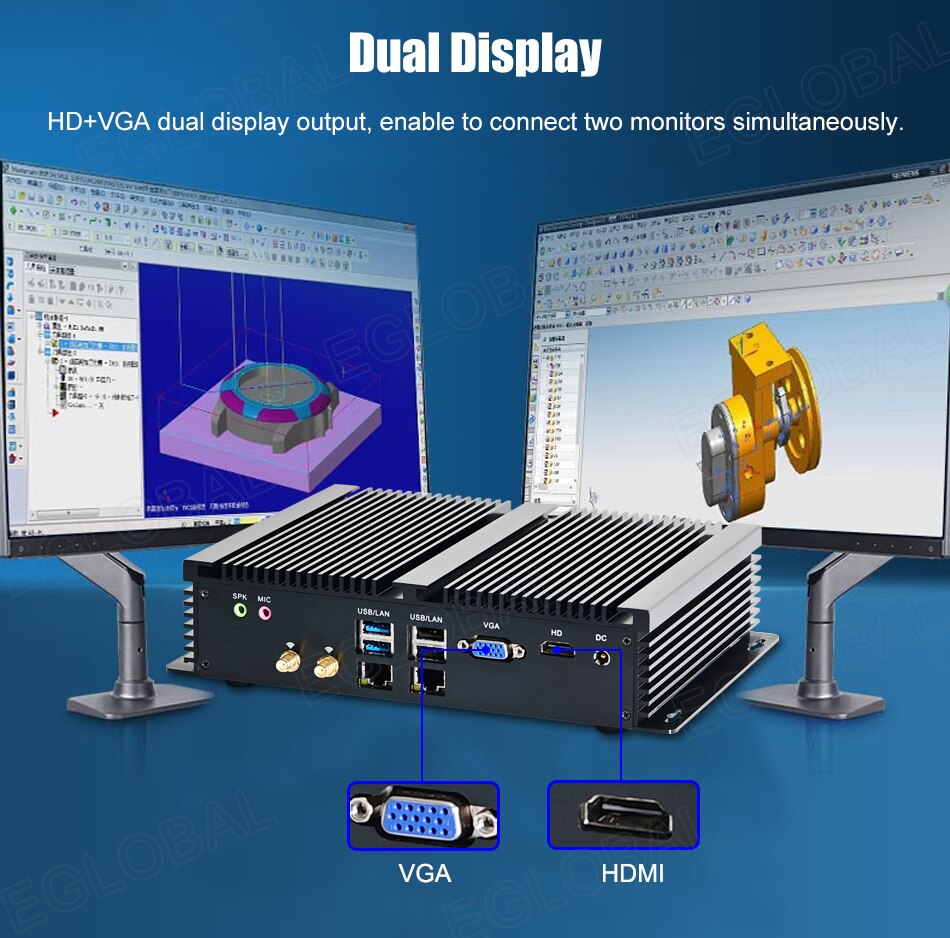

  • Support VGA + HDMI dual display output synchronously.
  • Low consumption can save much energy and eco-friendly.

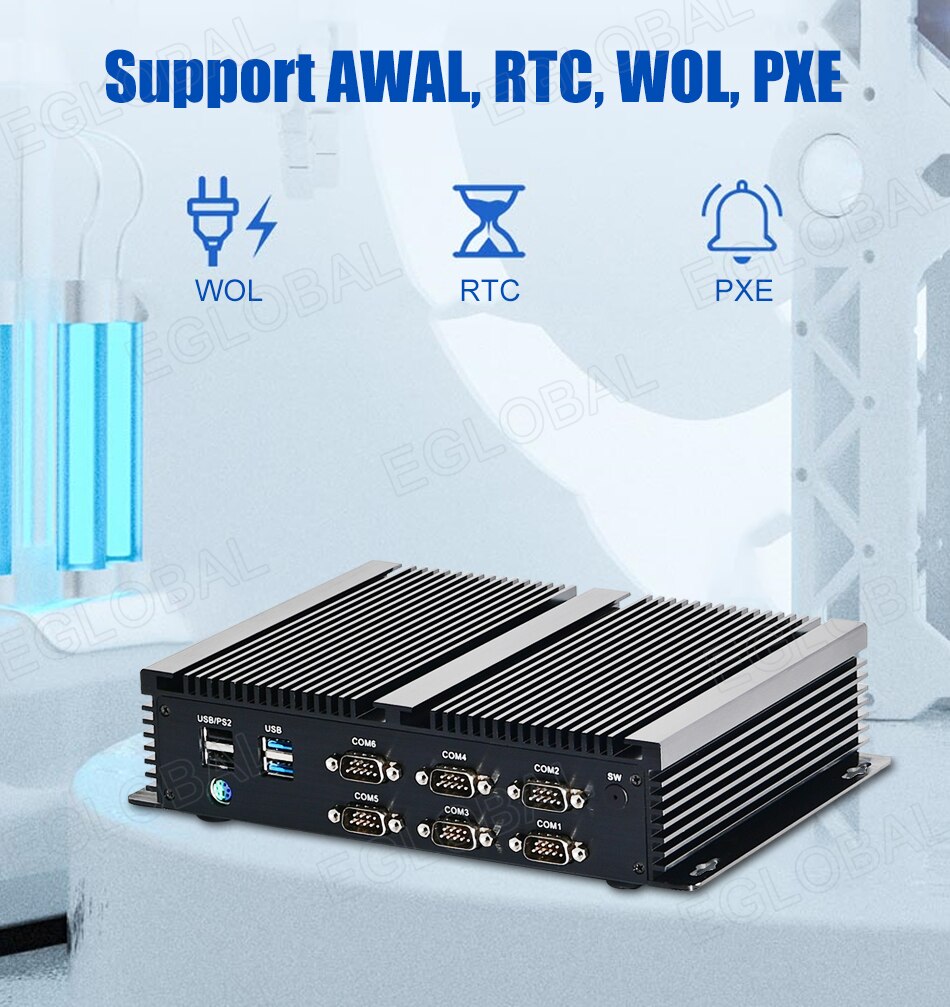

  • Support Watchdog, AWAL, RTC, WOL, PXE.
Fanless Industrial Mini PC / HTPC Intel Core i7-8550U, 2 x Intel Gigabit LAN, 6xCOM, WiFi, HDMI наявний для покупки з кроком збільшення в 1

Hightlights:

  • RAM: Support DDR4, max expanded to 32GB SO-DIMM Notebook memory;
  • Storage: max expanded to 1*mSATA3 SSD and 1*2.5 inch laptop HDD SATA3, no limited on storage capacity;
  • Operating System:Default: Windows 10 Pro; Optional: Windows 7, Windows 8.1 & Linux Ubuntu
  • Language: Multi Language available;
  • USB port: 4*USB 3.0, 4*USB 2.0; Serial Port: 6* RS232 COM;
  • Parallel Port: no, support external USB to Parallel Port adapter;
  • Feature: Fanless;
  • Wireless: 300MB WiFi with 2 Antennas;
  • HD Output: 1*HDMI port, maximal support Blu-ray 1080P resolution;
  • LAN port: 2 Gigabit RJ45 portintel i211;

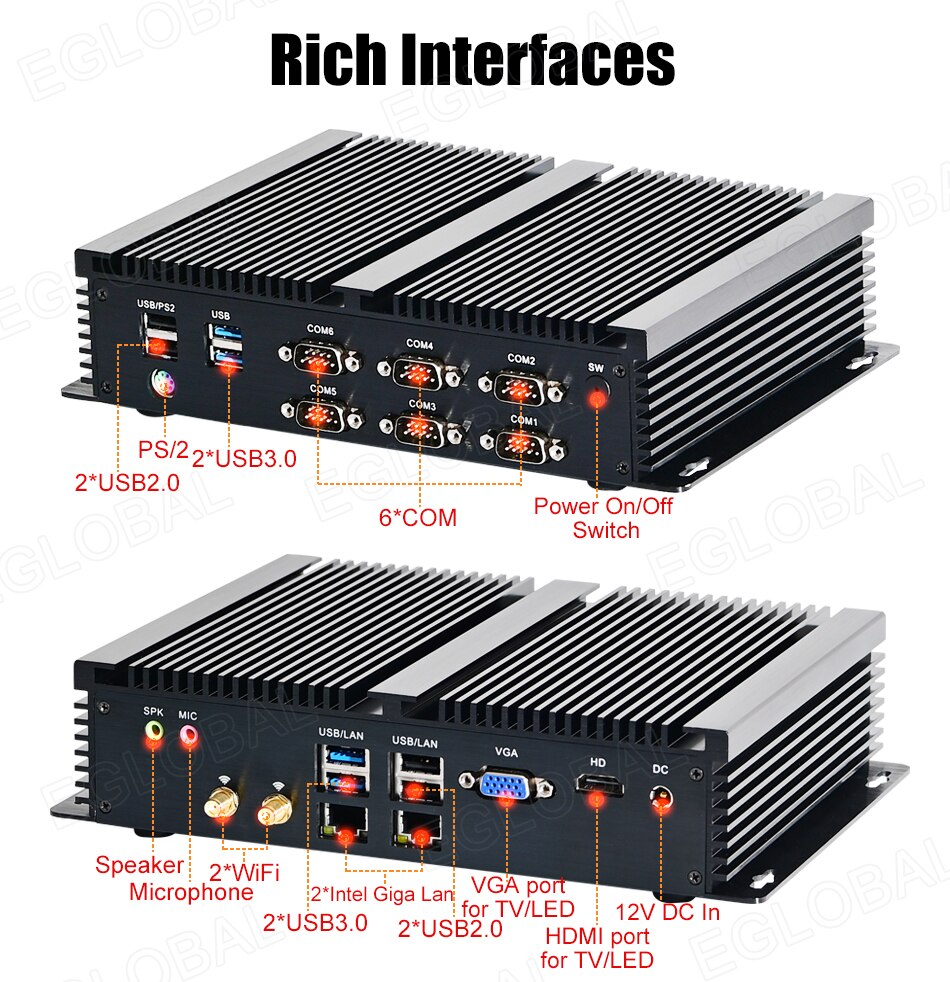

Connections of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Processors options (for reference only):

  • Skylake 14nm CPU Intel Core i3 6157U 2 cores 4 threads 2.4GHz 3MB cache TDP 28W Intel Iris Graphics 550.
  • Kaby Lake 14nm CPU Intel Core i5 7267U 2 cores 4 threads 3.1GHz up to 3.5GHz 4MB cache TDP 28W Intel Iris Plus Graphic 650.
  • Skylake 14nm CPU Intel Core i7 6500U 2 cores 4 threads 2.5GHz up to 3.1GHz 4MB cache TDP 15W Intel HD Graphic 520.
  • Kaby Lake R 14nm CPU Intel Core i5 8250U 4cores 8 threads 1.6GHz up to 3.4GHz 6MB cache TDP 15W Intel UHD Graphic 620.
  • Kaby Lake R14nm CPU Intel Core i7 8550U 4cores 8 threads 1.8GHz up to 4.0GHz 8MB cache TDP 15W Intel UHD Graphic 620.

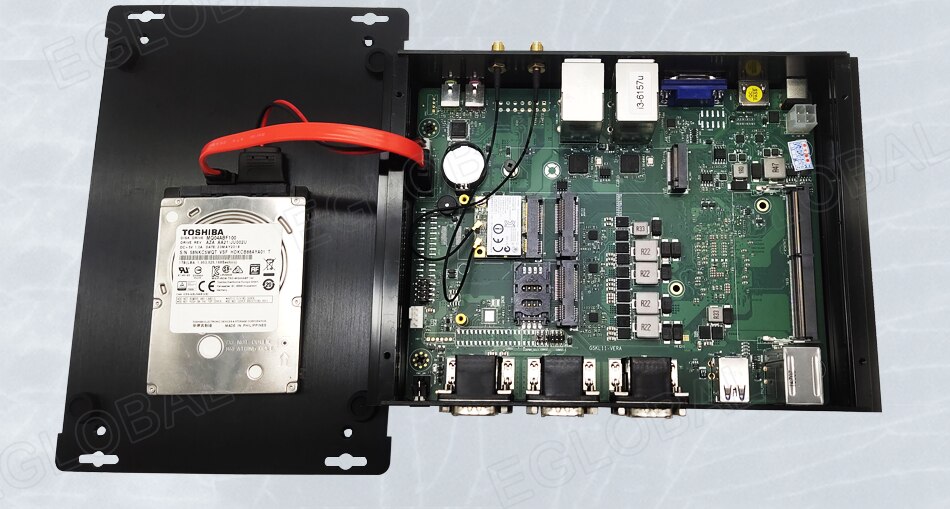

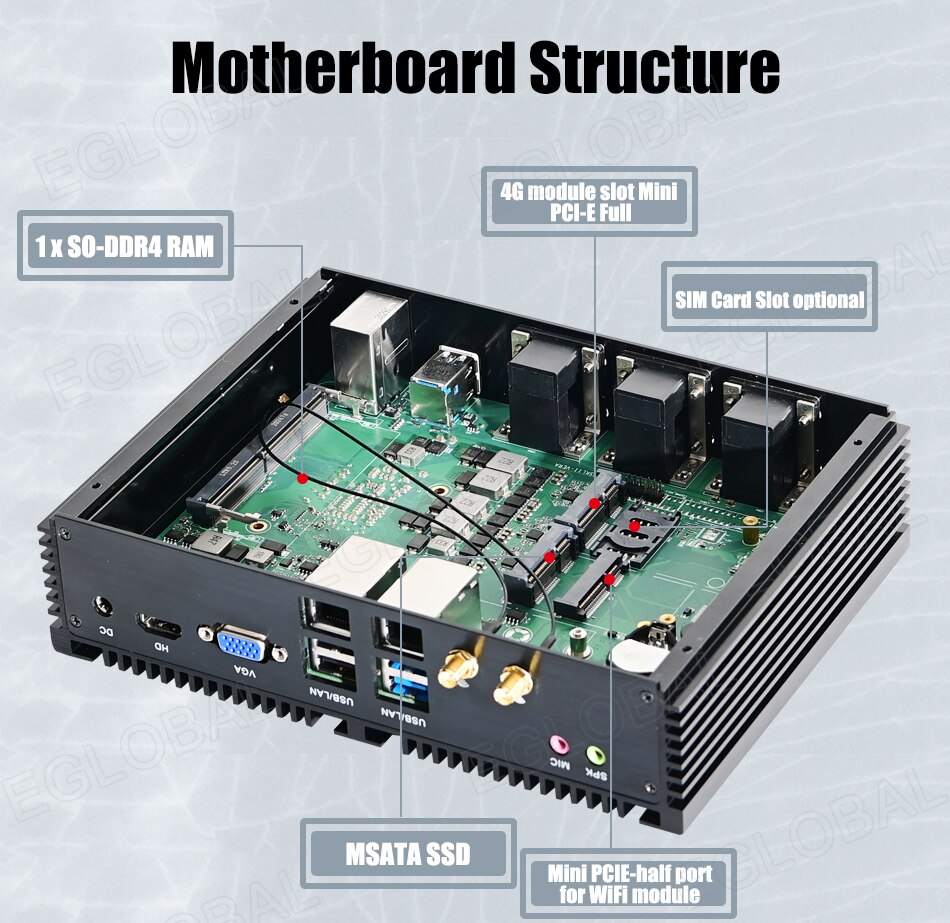

Inside of powerful computer with passive cooling for industrial applications: in commerce, production, offices. Well equipped with interfaces for connecting different peripherals

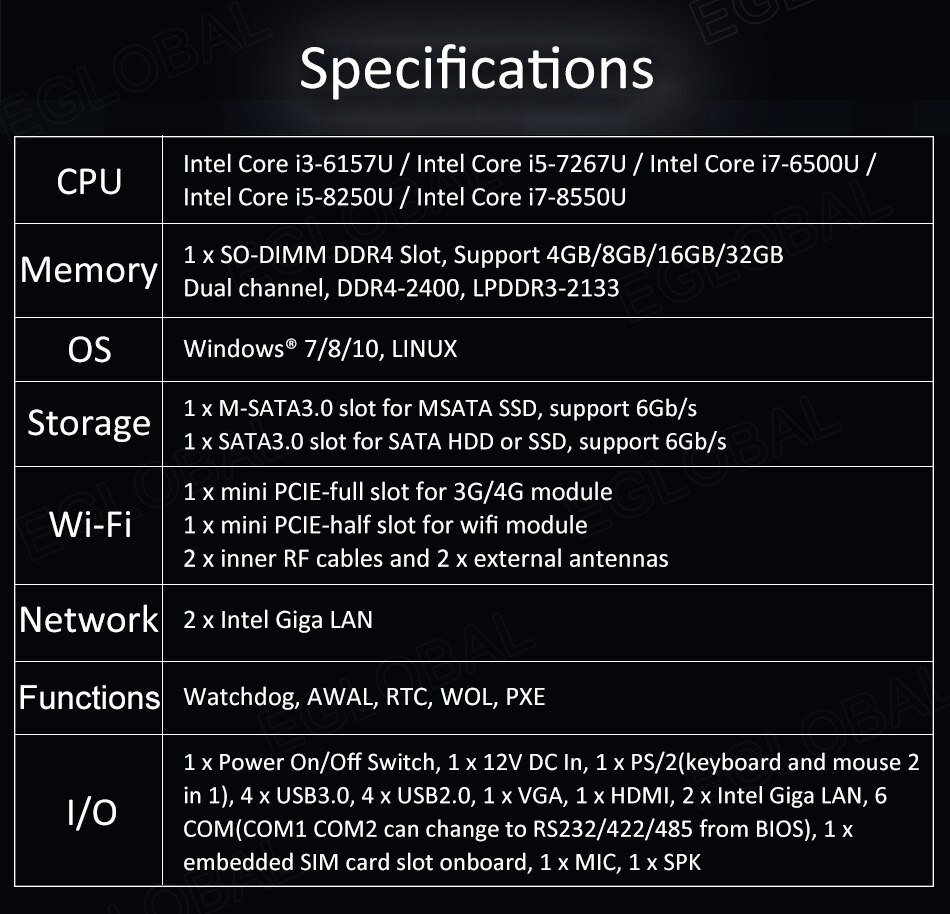

Specification

Processor Core i7-8550U (or other from list below)
Speed 1.8~4.0GHz, 8/MB Cache
Processor number 4core / 8threads
Technique 14nm
Graphic Cards Intel UHD Graphics 620
Graphics Base Frequency 300MHz
Max Dynamic Frequency 1.15 GHz
Resolution (MAX) 4096x2304@24Hz(HDMI)
Operating System

Default: Windows 10; Optional: Windows 8.1/

Windows 7/ Linux Ubuntu

Storage

32GB/64GB/128GB/256GB/512GB SSD;

500GB/1TB HDD available

RAM DDR4 1*Solt
Audio Cards ALC662 sound chip, 6-channel
Network card RTL8111DL PCI-E Gigabit Ethernet NIC
Ethernet 10/100/1000mbps BaseT LAN
WIFI dual antenna, 802.11.b/g/n 300M
Display port 1* HDMI,1*VGA
Mobile support 1* SIM slot (don't include the SIM Card, pay extra money)
USB port 4 * USB3.0, 4 * USB2.0
Ethernet port 2* RJ45 Intel i211 10/100/1000Mbps Adaptive

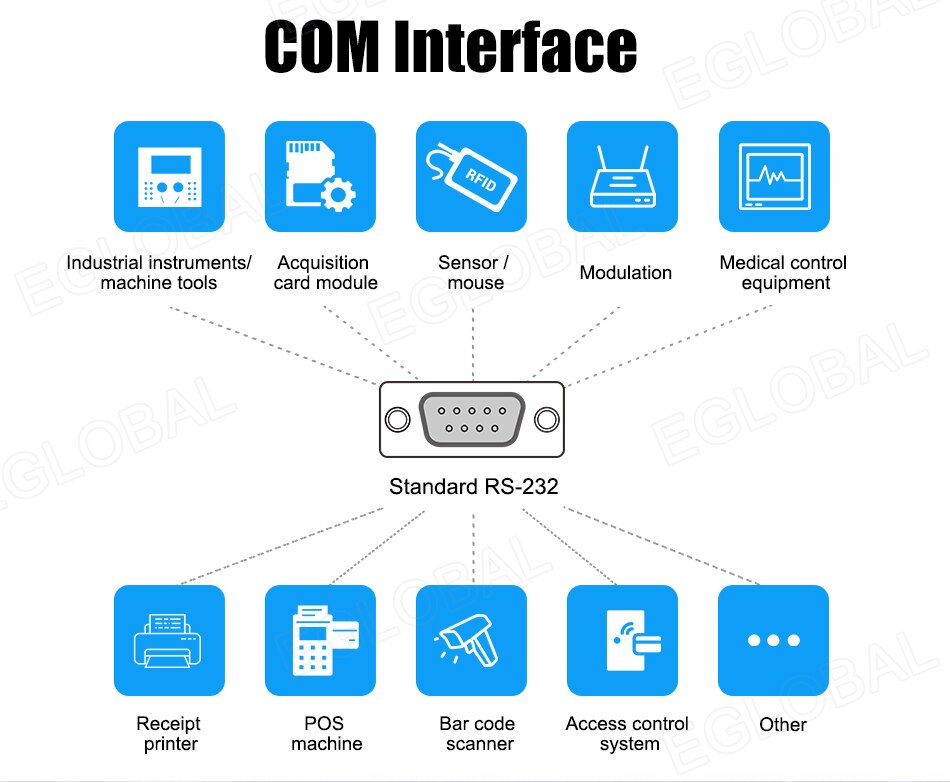

Industrial Port 6* RS232 COM Port COM1 COM2 support RS232/ 422/485
Power input port 1 inner diameter 2.5mm, external diameter 5.5mm
Audio Standard 3.5 Audio input and output
Power Input DC100-240V AC/50-60Hz
Power Output DC 12V/6A
Power Type External power adapter mode
Consumption 15-25W
Noise Fanless System
Temperature 0-95 Centigrade
Humidity 10%-90%

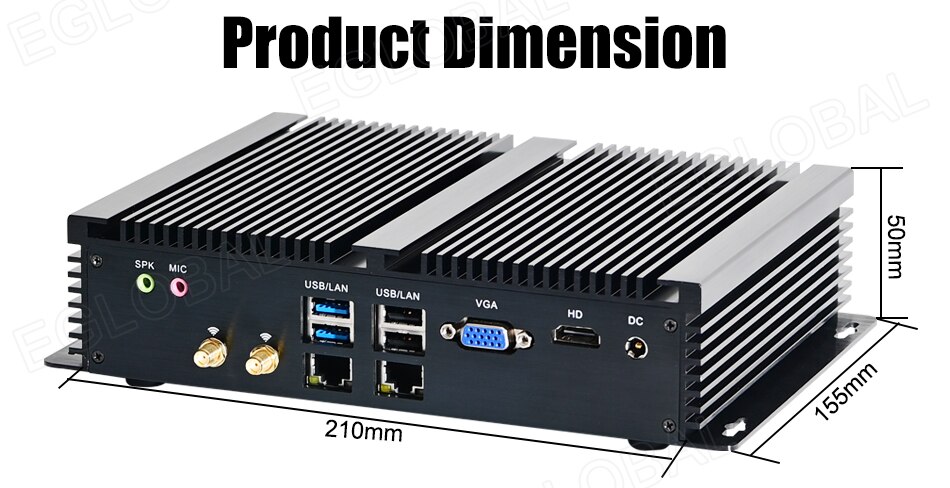

Size 230*175*50mm
Case Thickness 2.9MM
Package Box Neutral Color Export Box / Plain Box

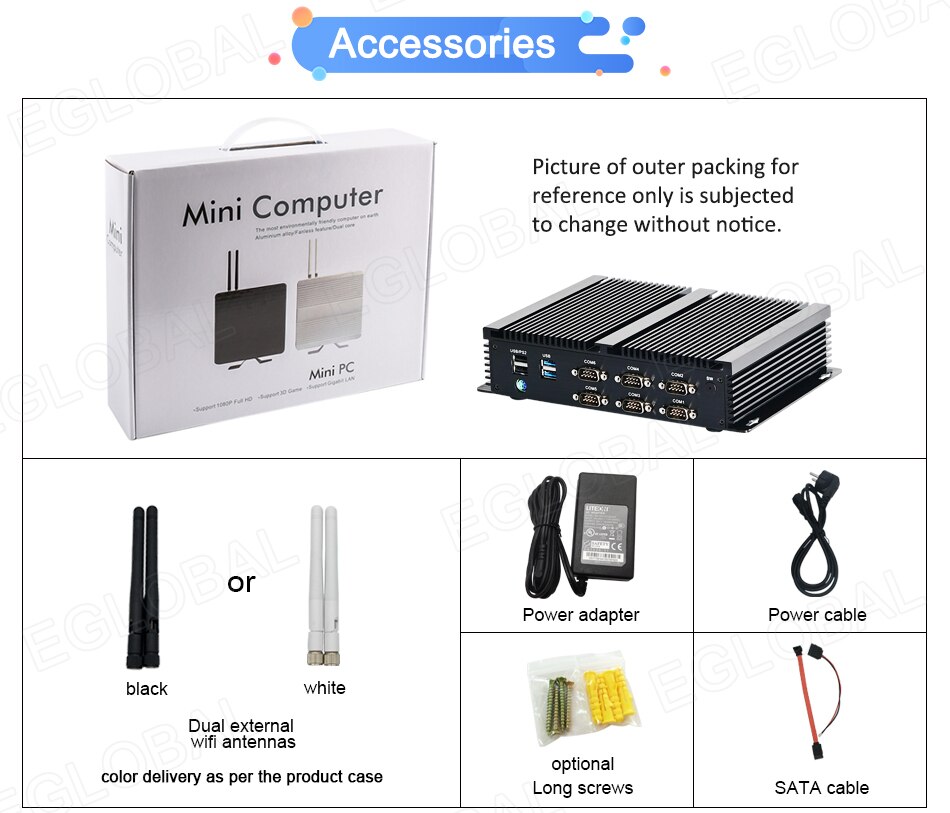

Content
  • Mini Computer,
  • Power Adapter,
  • Power Cable,
  • screws,
  • WiFi Antennas

The Package includes:

  • 1 * Mini PC Device
  • 1 * EU/AM/BR/AU standard Power Adapter
  • 1 * Set of SATA power and data cables(for 2.5" hard drive installation)
  • 1 * Plastic Stand Holder
  • 2 * WiFi Antennas
  • 1 * HDMI Cable

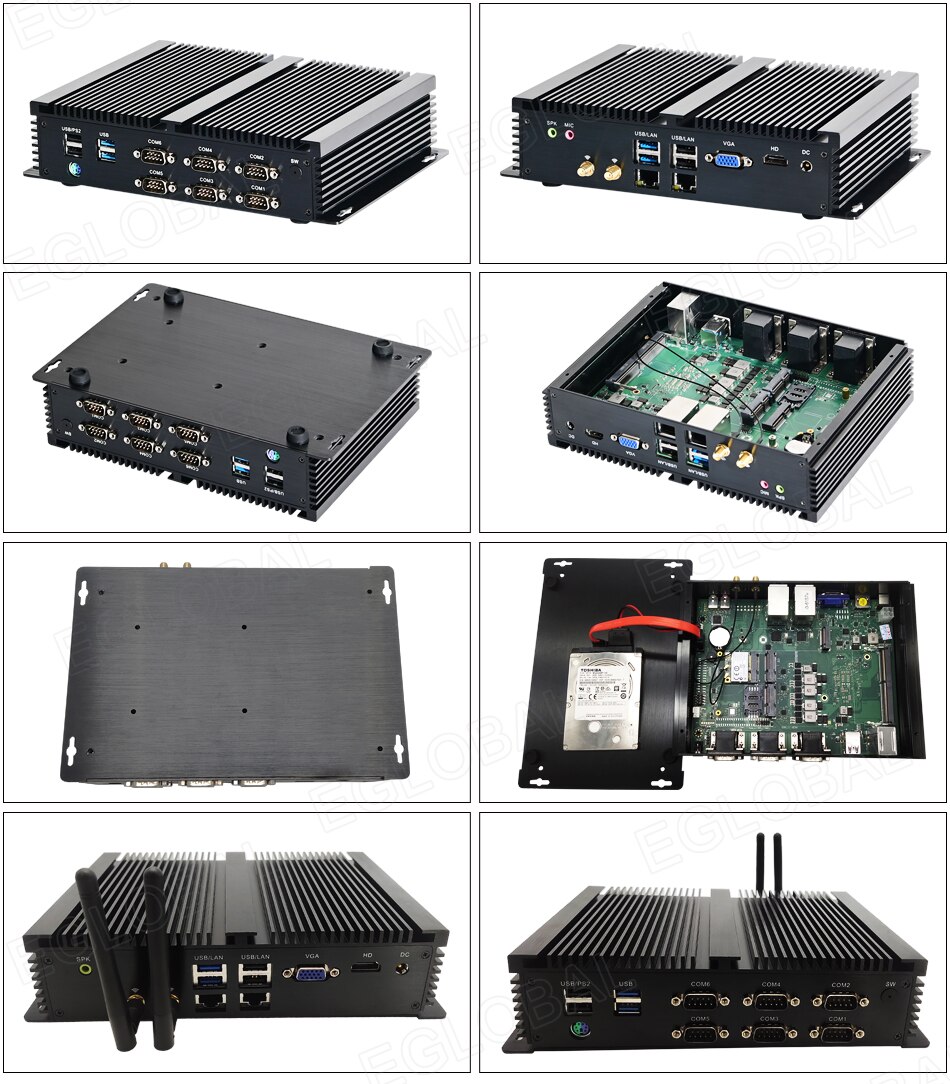

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

Image of Powerfull Industrial Fanless Mini PC / HTPC / Rugged Computer with CPU Intel Core i7-8550U, 1xDDR4 slot, 6xCOM RS232 ports, 8xUSB ports, VGA, HDMI, 4G SIM slot, dual WiFi for Windows 10 Pro or Linux desktop computing

ВиробникEglobal
EAN штрихкод2437452614284
