Tibbo Programmable Device Serial Controllers Comparison table

Tibbo serial controllers are device servers with a twist: While excelling at their primary use as serial-over-IP (SoI) converters, they can be used as programmable Internet of Things (IoT) nodes and adapted to perform a myriad of customized jobs.

Compact and versatile, these devices are perfect for network-enabling legacy serial systems, remotely controlling serial devices, as well as collecting and sending serial data to the cloud.

Comparison Table

	DS1100	DS1101	DS1102	WS1102

	See the spec & order...	See the spec & order...	See the spec & order...	See the spec & order...
CPU	Economical (T2000)	Baseline (T1000)		High-performance ARM CPU (as on the WM2000)
Serial port	Single-channel RS232	3.5-channel RS232	3-channel RS232/ 2-channel RS422/ 1-channel RS485	1-channel RS232/422/485
Power on DB9	Power in	Power in/out (controlled by your application)	No
Ethernet	10/100BaseT			No
Wi-Fi	No	Optional (2.4GHz/5GHz 802.11a/b/g/n)		Yes (2.4GHz/5GHz 802.11a/b/g/n)
TLS encryption	No			TLS1.2 (RSA-2048)
BLE	No			Yes
OLED Display	No	Optional		No
Power-over-Ethernet	Optional			No
Buzzer	No	Yes		Yes
Timekeeping	No	Onboard RTC (no backup battery)
Flash disk	512K for TiOS and application code	1MB for TiOS, application code, and the hardened fault-tolerant file system		4MB for TiOS and application code. Additional 4MB flash for the hardened fault-tolerant file system
EEPROM	208 bytes	2048 bytes		2048 bytes
Dual application support	No			Yes
Debugging	Over Ethernet			Wirelessly, over Wi-Fi (requires Wi-Fi auto-connects to be enabled)
	See the spec & order...	See the spec & order...	See the spec & order...	See the spec & order...

Programmable in Tibbo BASIC and C

Feature-rich and easy-to-learn, the Tibbo BASIC and Tibbo C programming languages open up a world of application possibilities. Control serial devices and machinery. Collect, store, and manipulate data. Communicate with cloud services and more.

Ready to go

Coding not your thing? Use the preloaded Serial-over-IP (SoI) application or download one of our free, ready-to-use apps, like the Modbus Gateway. Our team of experts can also design an application for you. You spec it — we do the rest.

Choice of serial ports

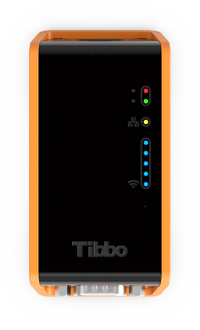

WS1102 – RS232/422/485 port

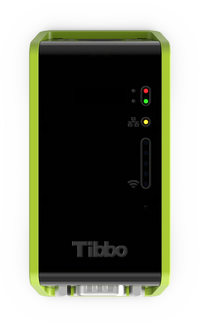

DS1100 – simple RS232 port with power input

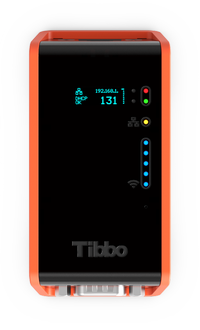

DS1101 – 3.5-channel RS232 port with power input/output

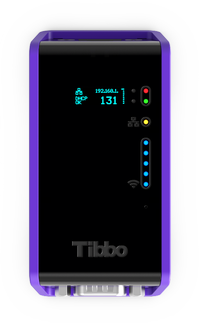

DS1102 – 3-channel RS232/422/485 port

Wireless Connectivity

Looking to improve your system's reliability by providing an additional communication path in case the Ethernet link goes down? Order the DS1101 or DS1102 controller with the Wi-Fi option.

Planning to go all-wireless? The WS1102 controller with Wi-Fi and BLE interfaces is your answer!

Optional power-over-Ethernet (PoE)

Cut the power cord and power your DS1100, DS1101, or DS1102 controller directly through the Ethernet cable!

The available PoE add-on is a true 802.3af device. It is compatible with a wide range of PoE-enabled switches and "power inserters."

Optional OLED display

The 96x32 OLED display available on the DS1101 and DS1102 devices is perfect for simple text and graphics.

Show messages, icons, status info, and prompts. To get inspired, see how we use the display in our Serial-over-IP (SoI) application.

Mounting not Optional

A DIN rail mounting plate is included with each serial controller. Not just a slap-on afterthought, our DIN rail plate is artfully fused into the product's body and accentuates its appearance.

Mounting your controller on a wall? One wall mounting plate also comes with each device.
