All-in-One Industrial Pan

Name: All-in-One Industrial Panel PC VenBOX EG-1501 with Intel CPU, Rich I/O Interfaces, LCD display
Brand: Eglobal
SKU: EG-1501
Price: 37556.41 UAH
Availability: InStock

SKU

EG-1501

Перейти до кінця галереї зображень

Перейти до початку галереї зображень

37 556,41 ₴

В наявності

Onboard Intel® Core i5/i7 CPU and 4Gb, 8Gb or 16Gb Memory for option.
LCD+HDMI dual display, Full-plane sensitive touch screen in synchronous/ asynchronous mode.
Front Panel IP65 Waterproof.
Low consumption 9~36V wide voltage input.
Aluminum Alloy case and fanless system without cooling fan, no any noisy.
Rich interfaces fit for many applications and multiple processors for your option.

Notify me when the price drops

All-in-One Industrial Panel PC VenBOX EG-1501 with Intel CPU, Rich I/O Interfaces, LCD display наявний для покупки з кроком збільшення в 1

Категорії: POS-термінали, Промислові ПК, Panel PC

Безкоштовна доставка

Для замовлень понад 5000 грн

Повернення протягом 14 днів

В будь-якому випадку

Надійна оплата

100% безпечні платежі

Підтримка 24/7

Виділена підтримка

Details

Industrial panel PC designed IP65 rated dust-proof and water-proof protection for the front panel. Support Windows and Linux-based operating systems. Industrial-grade mainboards ensure reliable performance under harsh conditions. Includes high brightness and sunlight readable screen for outdoor applications. Wide temperature and voltage operation, high-performance solutions designed for a wide range of industries such as the food industry, automation control, HMI, digital system, military, and industrial internet of things (IoT) devices.

Product Highlight:

Onboard DDR3L/DDR4 4Gb, 8Gb or 16Gb Memory for option.
LCD+HDMI dual display, Full-plane sensitive touch screen in synchronous/ asynchronous mode.
Front Panel IP65 Waterproof.
Low consumption 9~36V wide voltage input.
Aluminum Alloy case and fanless system without cooling fan, no any noisy.
Rich interfaces fit for many applications and multiple processors for your option.

CPU Options:

Model:	CPU:
EG-1501-J1900	Intel® Celeron® CPU Intel Celeron J1900, 2.0GHz,up to 2.42GHz
EG-1501-6360U	Intel® Core i5-6360U, 2.0GHz,up to 3.1GHz
EG-1501-4200U	Intel® Core i5-4200U, 1.6GHz,up to 2.6GHz
EG-1501-7200U	Intel® Core i5-7200U, 2.5GHz,up to 3.1GHz
EG-1501-4500U	Intel® Core i7-4500U, 1.8GHz,up to 3.0GHz
EG-1501-7500U	Intel® Core i7-7500U, 2.7GHz,up to 3.5GHz

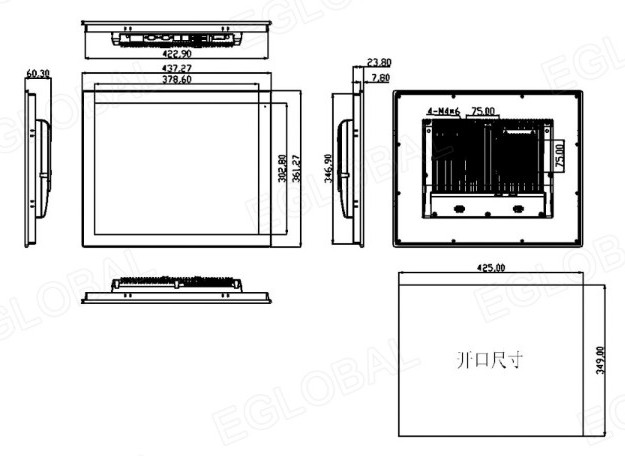

ALL IN ONE Industrial Panel PC EG Series with Intel CPU, Rich Interfaces, LCD display | Mountings dimensions

Specifications

Basic Information:
CPU	Intel® Celeron® J1900 Intel® Core i5-4200U Intel® Core i7-4500U Intel® Core i5-6360U Intel® Core i5-7200U Intel® Core i5-7267U Intel® Core i7-7500U
Watchdog timer	1 ~ 255 seconds programmable
Memory	Onboard DDR3L 4GB RAM (J1900/4th Gen Core CPU) Onboard DDR4 8GB or 16GB RAM (6th/7th Gen Core CPU)
OS	Windows® 7/8/10/11, WES 7, IoT, LINUX
Storage:
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s 1xM.2 (Core CPU only)
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi:
Module	1x Mini PCIE Half port for WiFi module1x Mini PCIE Full port for 3G/4G module
Antenna	2 x inner RF cables without external antennas
Display Information:
LCD Type	15" TFT-LCD (10.1"/12.1"/17"/19" Optional)
Resolution	1024x768
Max color	16.7M
Brightness	350 cd/m²
Perspective (CR>="10)	-85~85° (H), -85~85° (V)
Backlight	LED
Backlight life (hour)	50,000
Touch Screen Information:
Type	5-wire resistive
Transmittance	78%
Lifetime	250g clicks 10 million times
Input/output port:
Switch	1 x Power On/Off Switch
Amplifier	2 x 80 1W Amplifier output (Optional)
Button	1 x AT/ATX DIP switch
USB	3 x USB2.01, 1 x USB3.01, Built-in 1xUSB2.0 Dongles Port
Display	1 x HDMI
LAN	2x Gigabit Ethernet RJ45 Intel i211-AT
COM	2 x DB-9 COM1&COM2,RS-232/422/485
GPIO	1 x 14bit GPIO (Optional)
Audio	1 x Audio Line-out
Others	2 x 3-wire COM3&COM4 RS-232/485 Phoenix Terminal 2 x 3-wire COM5&COM6 RS-232 Phoenix Terminal 1 x Phoenix terminal remote switch interface
Structure:
Material	Aluminum Alloy
Installation method	VESA 75x75/ Panel mounting
Dimension	289.53x192.44x48.3 mm
Weight	TBD
Power and Working Environment:
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-30°C ~ 70°C
Storage Humidity	10~90% @30°C, non-condensing
Power input	DC 9 ~ 36V 3-pin Phoenix Terminal
Package Content:
Standard	1 x All-in-one PC, 1 x Power Adapter, 1 x Power Cord, 1 x Screws Bag, 1 x Touchpen

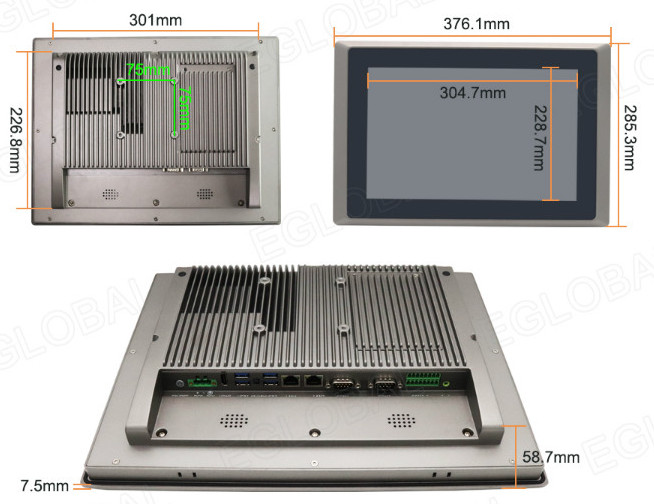

ALL IN ONE Industrial Panel PC EG Series with Intel CPU, Rich Interfaces, LCD display | Mountings dimensions

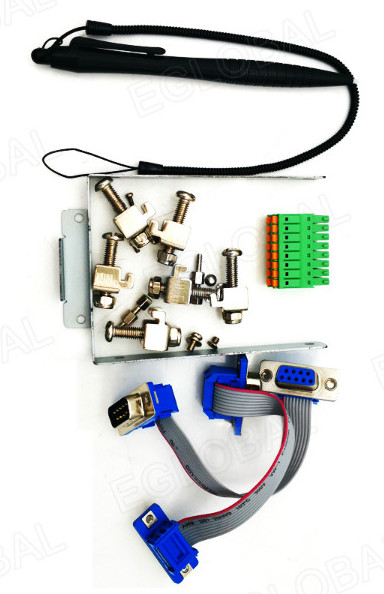

ALL IN ONE Industrial Panel PC EG Series with Intel CPU, Rich Interfaces, LCD display | Packing kit

Touch Screen Industrial All-ln- High-quality, powerful configuration, cost-effective PC Strong performance Safety design Strong pressure resistance Strong temperature difference

Sensitive touch no freeze High-quality touch screen High resolution Responsive No blind spots Surface matte finish Smooth experience

The whole machine is more resistant to high and low temperatures Industrial display application and automation equipment, fearless even in harsh indoor environments

Front Panel IP65 Waterproof Pure flat waterproof and dustproof, effectively prevent dust and water droplets from entering the inside of the machine.

Multiple Processors for your option Intel® Celeron® J1900, 2.00GHz, up to 2.42GHz Intel® Core I5-4200U, 1.6GHz, up to 2.6GHz Intel® Core I7-4500U, 1.8GHz, up to 3.0GHz Intel Celeron J1900/4th/6th/7th/8th Intel Core i3/i5/i7 Optional

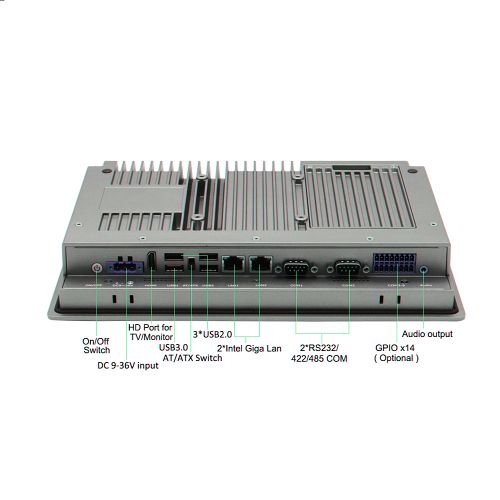

Rich Interfaces WiFi HD Port for On/Off TV/Monitor USB2.0 USB3.0 2*lntel Giga Lan 2*RS232/422/485 COM Switch AT/ATX Switch DC 9-36V input Audio output GPIOx14 (Optional)

ALL IN ONE Industrial Panel PC EG Series with Intel CPU, Rich Interfaces, LCD display | Packing kit

COM Interface Industrial instruments/ machine tools Acquisition card module Sensor/ mouse Medical control equipment Standard RS-232 (DB9 pin) Receipt printer POS machine Bar code Access control Other scanner system Modulation
